ASSEMBLY INSTRUCTIONS
PH-300 VERTICAL LIFTING PLATFORM
IM-560en
Vers. 05
Page 17

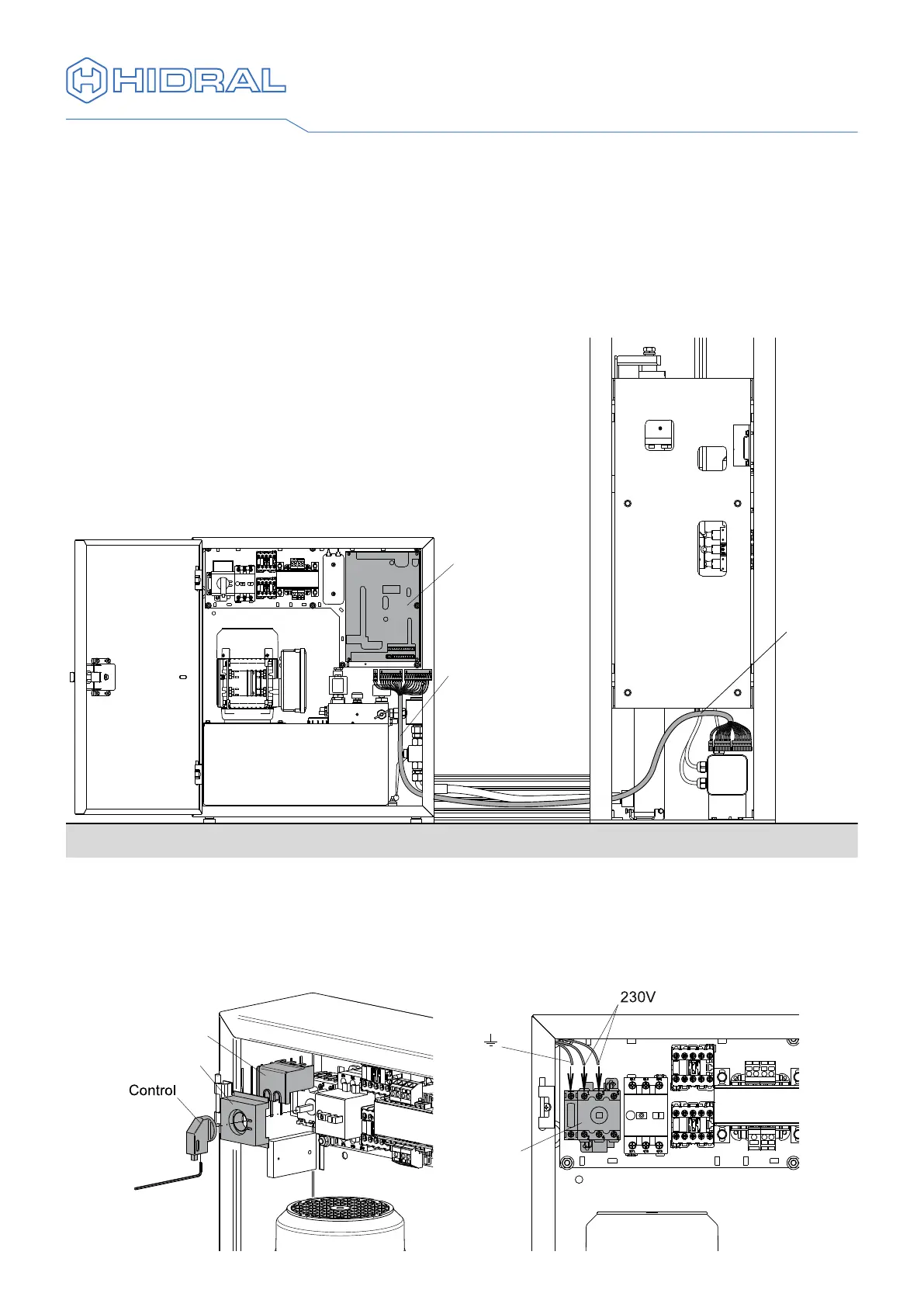

6. Electrical installation
6.1. Guide electrical installation
1 Plug in the guide rail connection cable to the control board in the machine
cabinet and bring the cable through the channel towards the guide rail. Open the
connection box in the guide rail assembly and plug in the connectors in this end.
2 Fix the cable to the guide using a cord to the upper section of the travelling cord
support.
Control board
Guide connection
cable
Fixation
6.2. Machine cabinet electric installation
1 Using an allen key, remove the knob in the main switch and the embellisher to gain
access to the protection outer casing and connect the supply of the machine to the
electric board.
