ASSEMBLY INSTRUCTIONS
VERTICAL LIFTING PLATFORM PH-300
3. Guide assembly

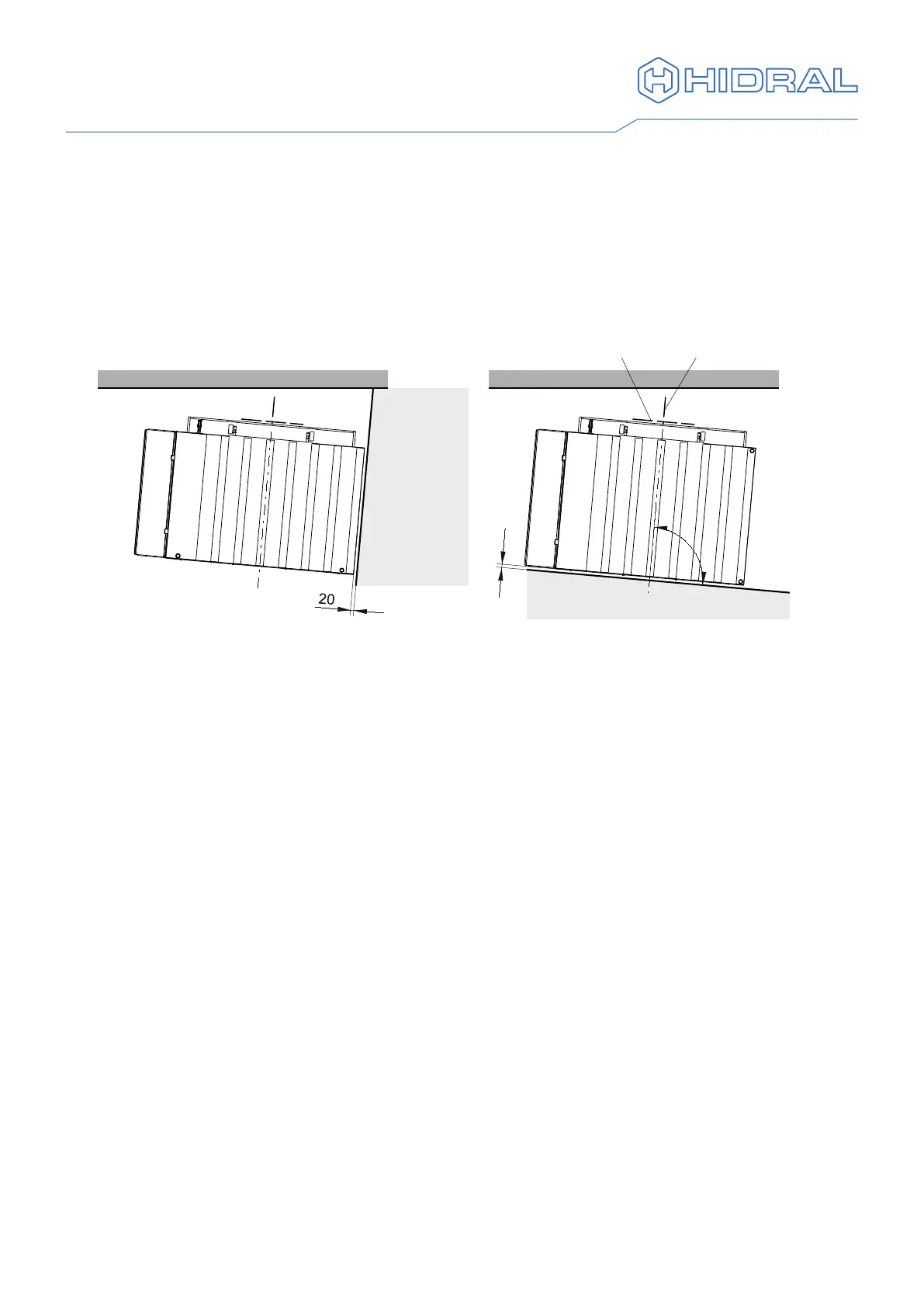

1 Draw the guides axis on the ground. This must be perfectly parallel to the surface
of the upper access side, in the case of a 180º access, or at right angles to the
surface of the upper access side, in the case of a 90º access. To secure this
position, use the oor as a template, placing it on the ground 20 mm from the upper
access side and parallel to it. Draw a line on the ground, along the guide side,
using the oor as a reference and mark the centre of the oor. Remove the oor
from the ground.
2
0
90°
Guide axis markingLine paralell to the guide
2 Remove the front cover of the guide from the guide assembly.
3 Position the guide assembly on the wall and on the mark of the guide axis drawn
on the ground. Ensure that the guide and the line drawn in the previous section are
parallel.
4 Plumb the guide rail in both directions and adjust with the supports if necessary.
