ASSEMBLY INSTRUCTIONS
PH-300 VERTICAL LIFTING PLATFORM
IM-560en
Vers. 05
Page 13

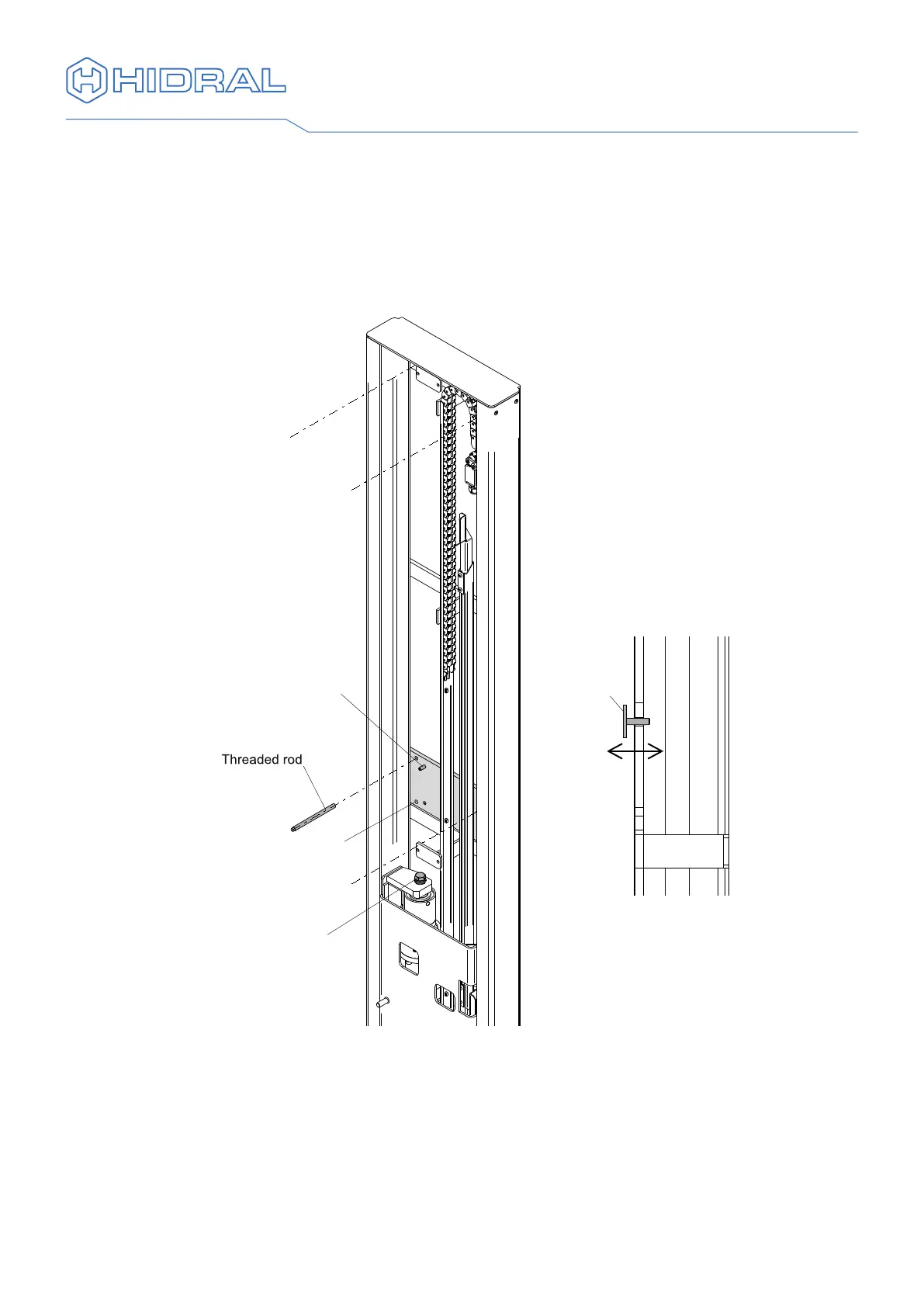

5 Using the guide as a template, make two Ø10 holes on the upper end of the guide
and another two on the upper section of the central plate. Once the rst hole is
drilled, insert a threaded rod to avoid the guide from deviating while the remaining
holes are made. In case an appropriate support for the upper part of the guide is
not available (see point 3 in section "2. Shaft check"), substitute the upper xation
anchorages for two additional xations in the lower holes of the central plate. In
case this plate is difcult to access, remove the bolt that xes the cylinder to the car
and move the car upwards; x the car securely in order to avoid accidents.
Adjustment
supports
Adjustment
supports
Lower holes of the
fixation plate
Joint bolt between the
cylinder and the car
