ASSEMBLY INSTRUCTIONS
VERTICAL LIFTING PLATFORM PH-300

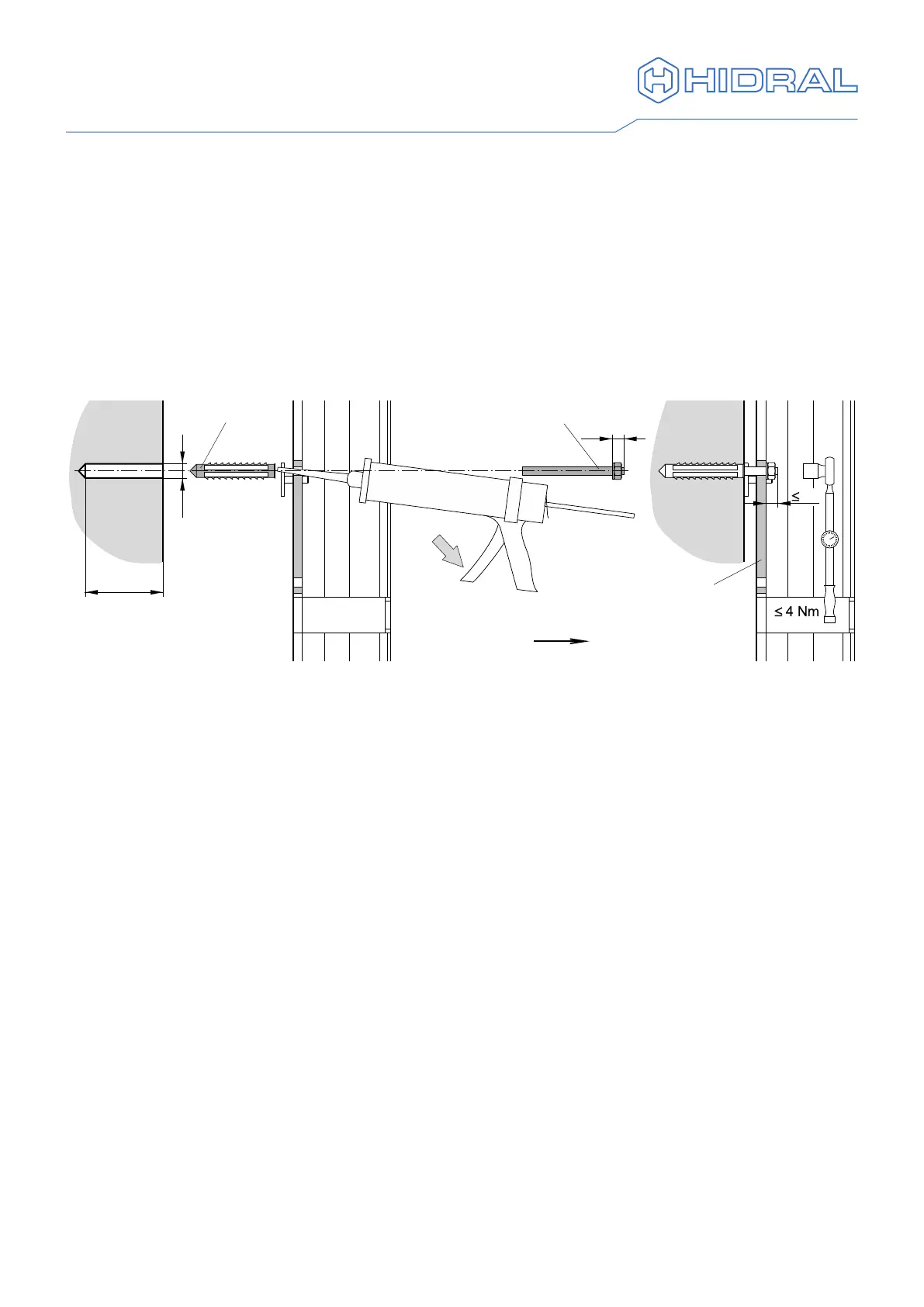

6 Separate the guide from the wall and redrill to Ø16 for a depth of 100 mm.
7 Insert the sheaves; previously, blow the holes.
8 Place the guide again in place.
9 Fill the holes starting from the bottom and making way towards the outside, with
5 strokes of the applicator. Immediately insert the threaded rods together with the
corresponding nuts and washers, to prevent the resin from hardening. The rod
shall be inserted fully and in such a way that it does not protrude more than 20 mm
from the crossbeams, to avoid interferences.
10 Wait for an hour without touching the threaded rods until the resin hardens
denitely. Tighten the nuts with a maximum torque of 4 Nm.
20
Rod, washer and nut
x5
> 1h
17
Crossbeam
100
Ø16
Sheave
