ASSEMBLY INSTRUCTIONS
PH-300 VERTICAL LIFTING PLATFORM
IM-560en
Vers. 05
Page 37

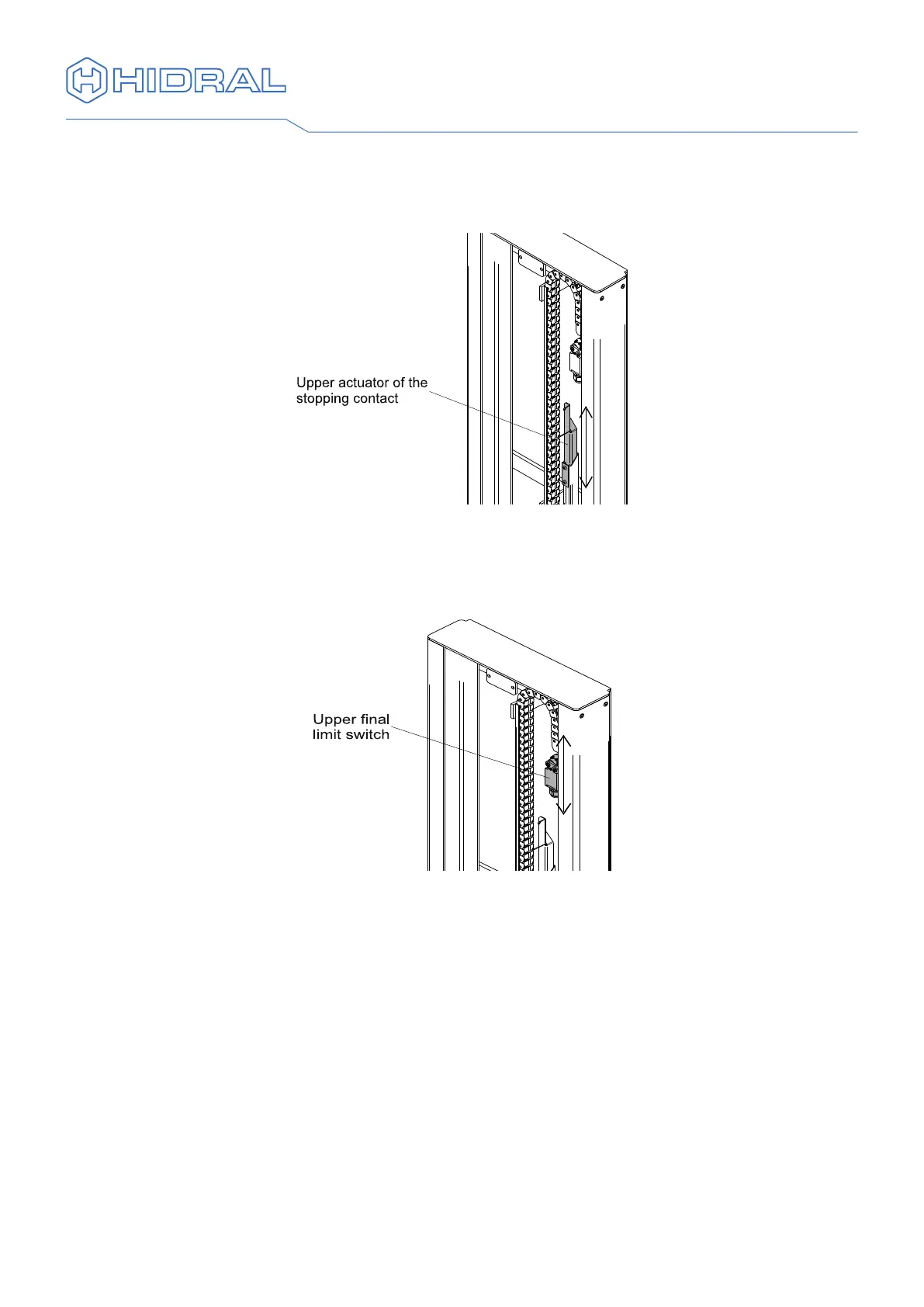

4 The upper actuator of the stopping nal limit switch KN shall be positioned in such
a position that the oor is at level with the landing level oor. Adjust the position of
the actuator if necessary.
5 The upper nal limit switch KF shall be positioned at least 25 mm before the physical
stop of the cylinder in case of telescopic cylinders, or at least 10 mm before the
physical stop of the cylinder for simple cylinders. In any case, the nal limit switch
shall not be positioned more than 60 mm from the position of the upper landing level.
6 Bolt the front guide rail covers again.
11.3. Adjustment of the opening angle of the automatic door
The upper landing doors with the optional automatic function are supplied adjusted for
an opening angle of 90º. During installation this angle may be adjusted to avoid possible
impact with obstacles. In order to do:
1 Bring the platform to the upper landing level.
2 Cut the supply to the machine by disconnecting the main switch IP.
3 Reconnect the supply, wait for 15 seconds and press the P1 push button situated on
the control board in the machine.
4 In the following 30 seconds, press the call push button of the upper landing level; the
door shall start to open.
5 When the leaf reaches the desired angle, stop it smoothly. The leaf shall stop and will
commence to close.
6 Press the call push button of the upper landing again and verify that when the door
opens, it stops at the desired angle.
