4. Assembly of the machine cabinet
Access to the cabinet shall be suitable lighted and shall not be blocked in any way.
It shall be installed in a dry environment, and may not be installed outdoors.
The cabinet is foreseen for installation in a position adjacent to the guide assembly,
either on the lower level or on the upper level. Plastic channels are supplied to install
the hydraulic piping and electric connection cables so that these may be hidden,
taken the foreseen position into account. If the cabinet is installed in a different
position not adjacent to the guide, the hydraulic piping and the electric connection
cables shall be installed in appropriate conduits or channels (not supplied).
A working area of 550x700x2000 mm in front of the cabinet shall be guaranteed.
The machine cabinet shall be installed protected from high temperatures and
radiations to ensure that the temperature inside is between +5ºC and +40ºC.

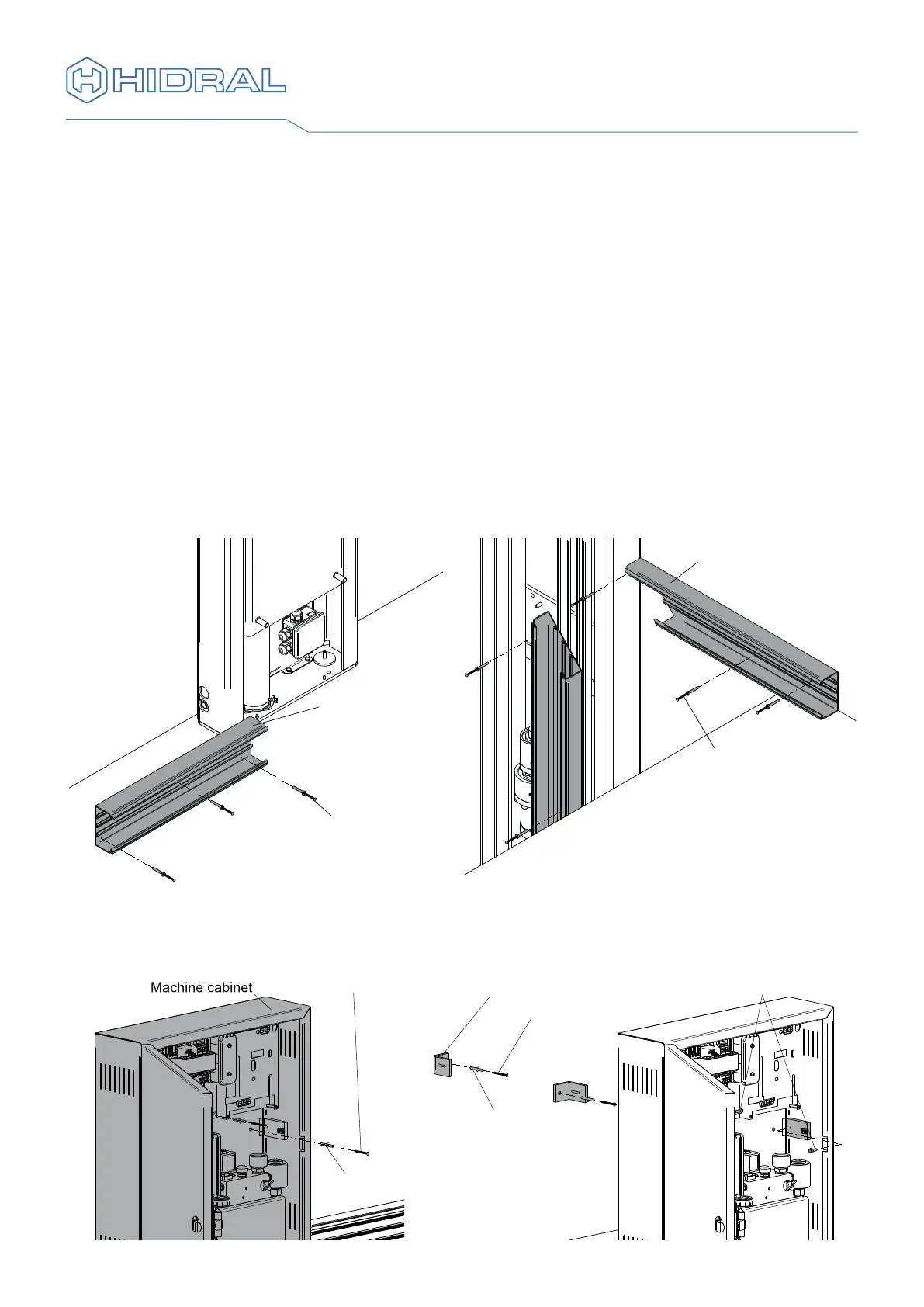

1 Attach the supplied conduit to hide the hydraulic and electrical connections
between the guide rail and the machine cabinet at the upper or lower end of the
guide rail, according to alternative Ⓐ with a cabinet on the lower landing or Ⓑ with
a cabinet on the upper landing. Use the supplied anchors.
60x110 conduit
Anchor for
Ø6 conduit
Ⓑ
Ⓐ
60x110 conduit
Anchor for
Ø6 conduit
2 Place the machine cabinet adjacent to the conduit and x it denitely to the wall.
Two additional xation brackets are supplied for the xation that allow the cabinet
to be installed slightly separated from the wall.
Fixation brackets
Bolt M5x12
Screw ST 5.5x45
Plug Ø8
Screw ST 5.5x45
Plug Ø8
Location of the cabinet
