ASSEMBLY INSTRUCTIONS
PH-300 VERTICAL LIFTING PLATFORM
IM-560en
Vers. 05
Page 11

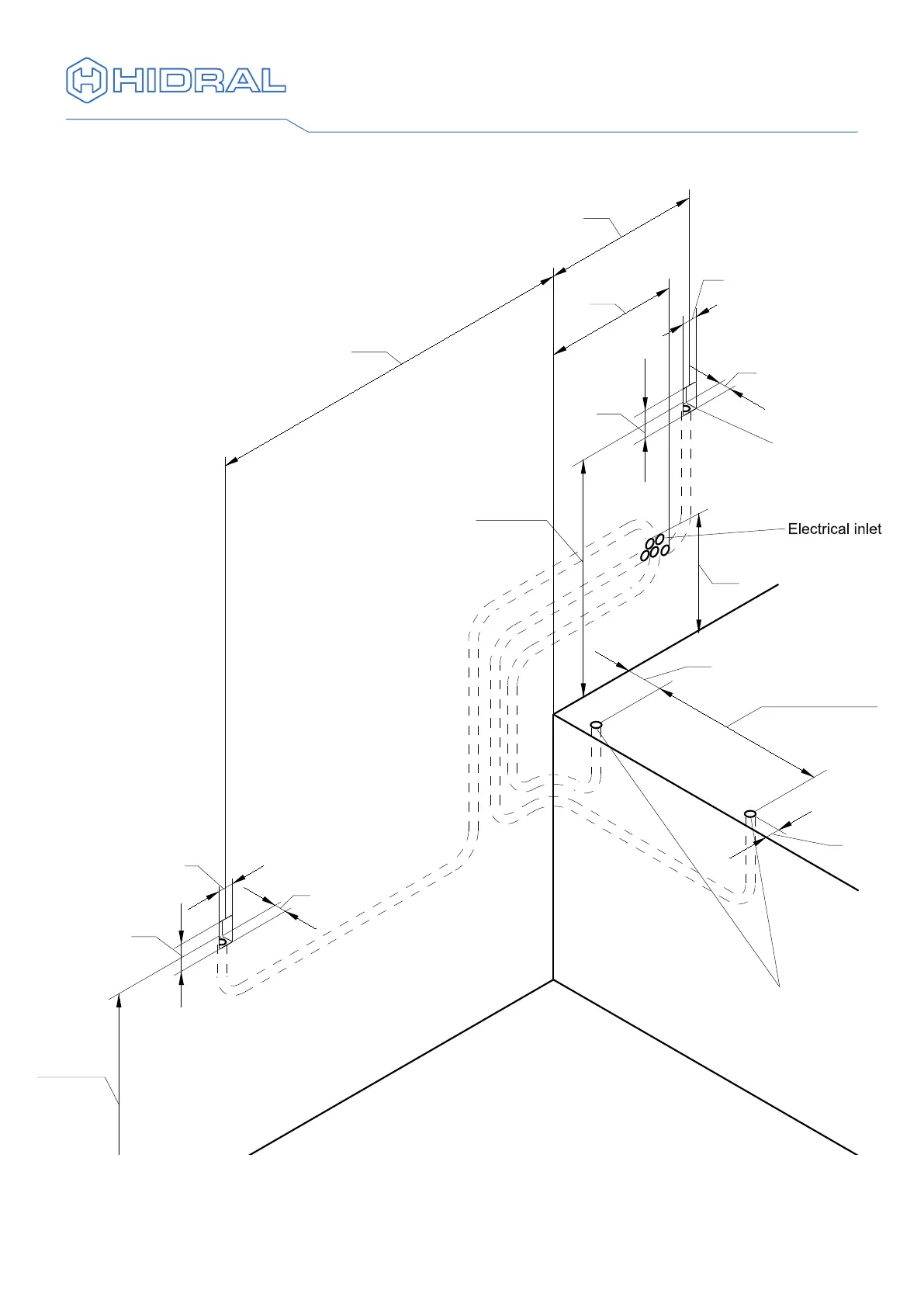

Ⓑ Cabinet on upper landing
600
180
910 for PL=800
1010 for PL=900
850÷1050
55
55
130
2050
30
850÷1050
55
55
130
750
For upper
landing door
Without upper
landing door
600
