Hidral PH-300 - Page 12

IM-560en
Vers. 05
Page 10
ASSEMBLY INSTRUCTIONS
VERTICAL LIFTING PLATFORM PH-300

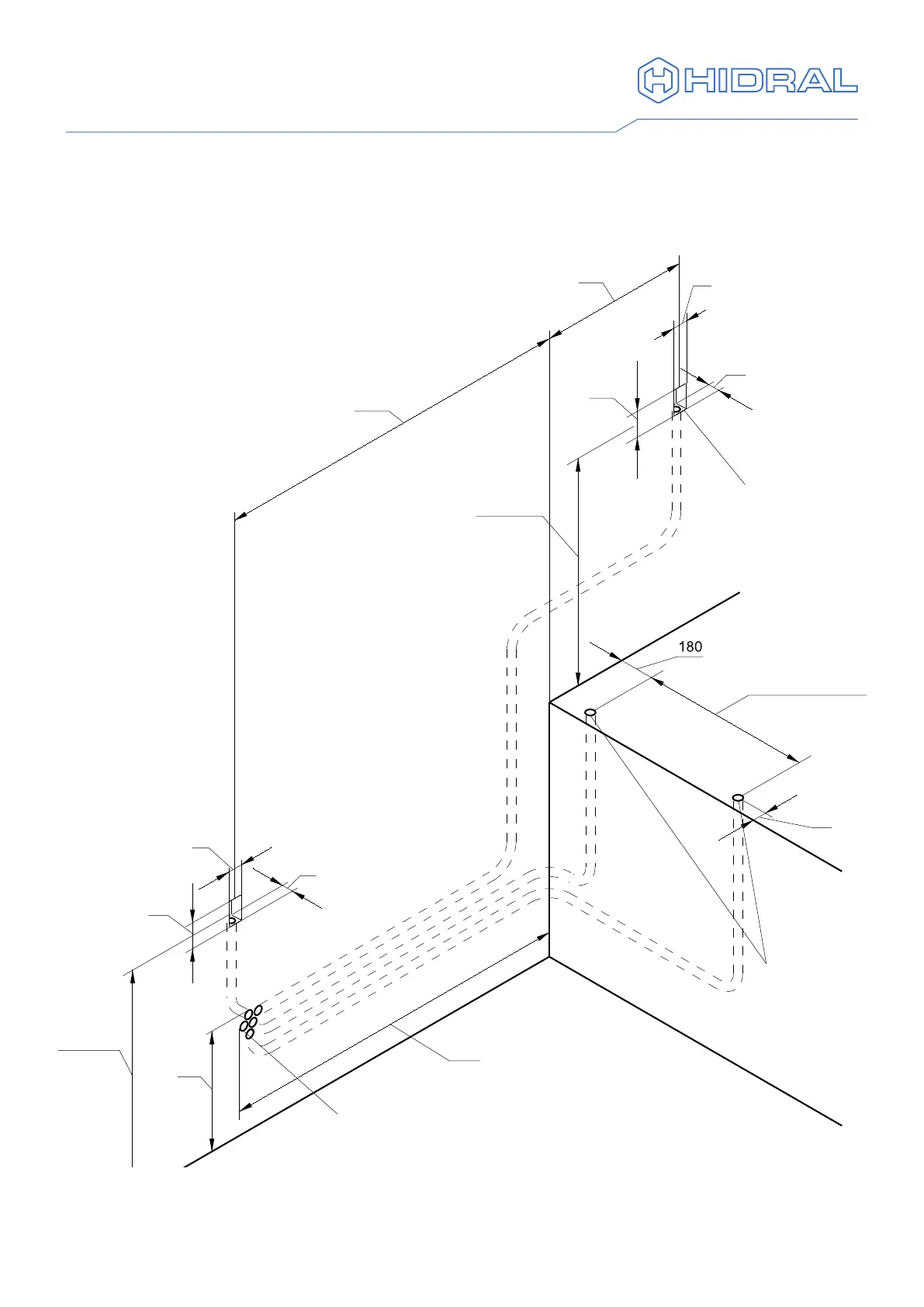

8 For the built-in push button panel option, check that the channels made begin
and end approximately as indicated for alternative Ⓐ with a cabinet on the lower
landing or Ⓑ with a cabinet on the upper landing.
Ⓐ Cabinet on lower landing
910 for PL=800
1010 for PL=900
850÷1050
55
55
130
2050
30
Electrical inlet
600
850÷1050
55
55
130
750
1900
For upper
landing door
Without upper
landing door
