ASSEMBLY INSTRUCTIONS
PH-300 VERTICAL LIFTING PLATFORM
IM-560en
Vers. 05
Page 9

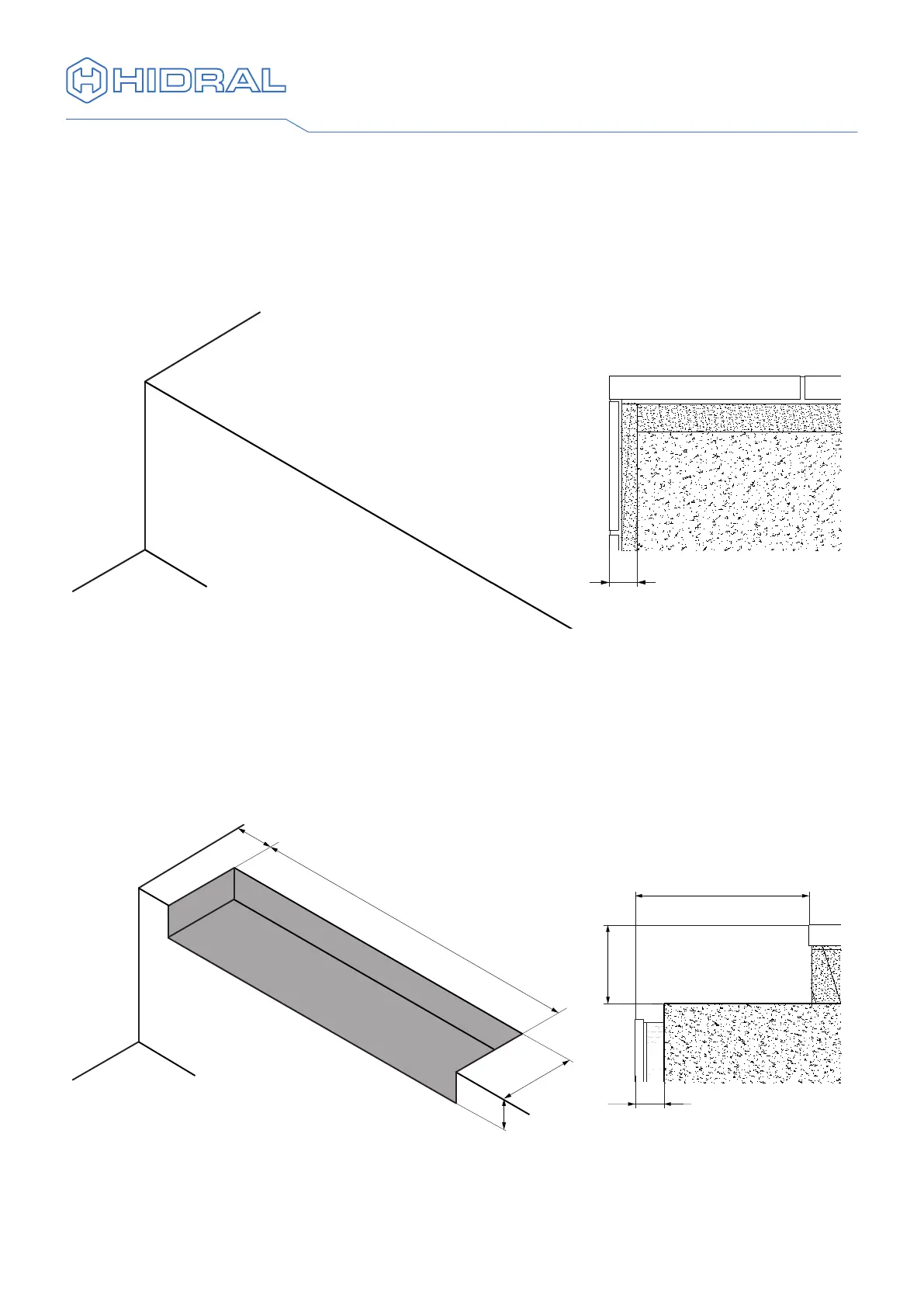

7 Check that the existing construction meets the necessary requirements for the
assembly of the upper-level doors, according to alternative Ⓐ for the option of
direct attachment to ooring or Ⓑ for the option of attachment by means of a built-
in plate.
Ⓐ Direct attachment to ooring
- Maximum wall plastering or covering thickness of 35 mm.
≤35
Ⓑ Attachment by means of a built-in plate
- Gap at the edge of the upper-level measuring at least 210 mm in width and
clearance plus 320 mm in length, centred with the position of the door.
- Structural concrete surface to attach the plate at a maximum distance from
oor level of 100 mm.
- Maximum wall plastering or covering thickness of 35 mm.
PL+320
210
75
≤100
≤100
210
≤35
