IM-560en
Vers. 05
Page 8
ASSEMBLY INSTRUCTIONS
VERTICAL LIFTING PLATFORM PH-300

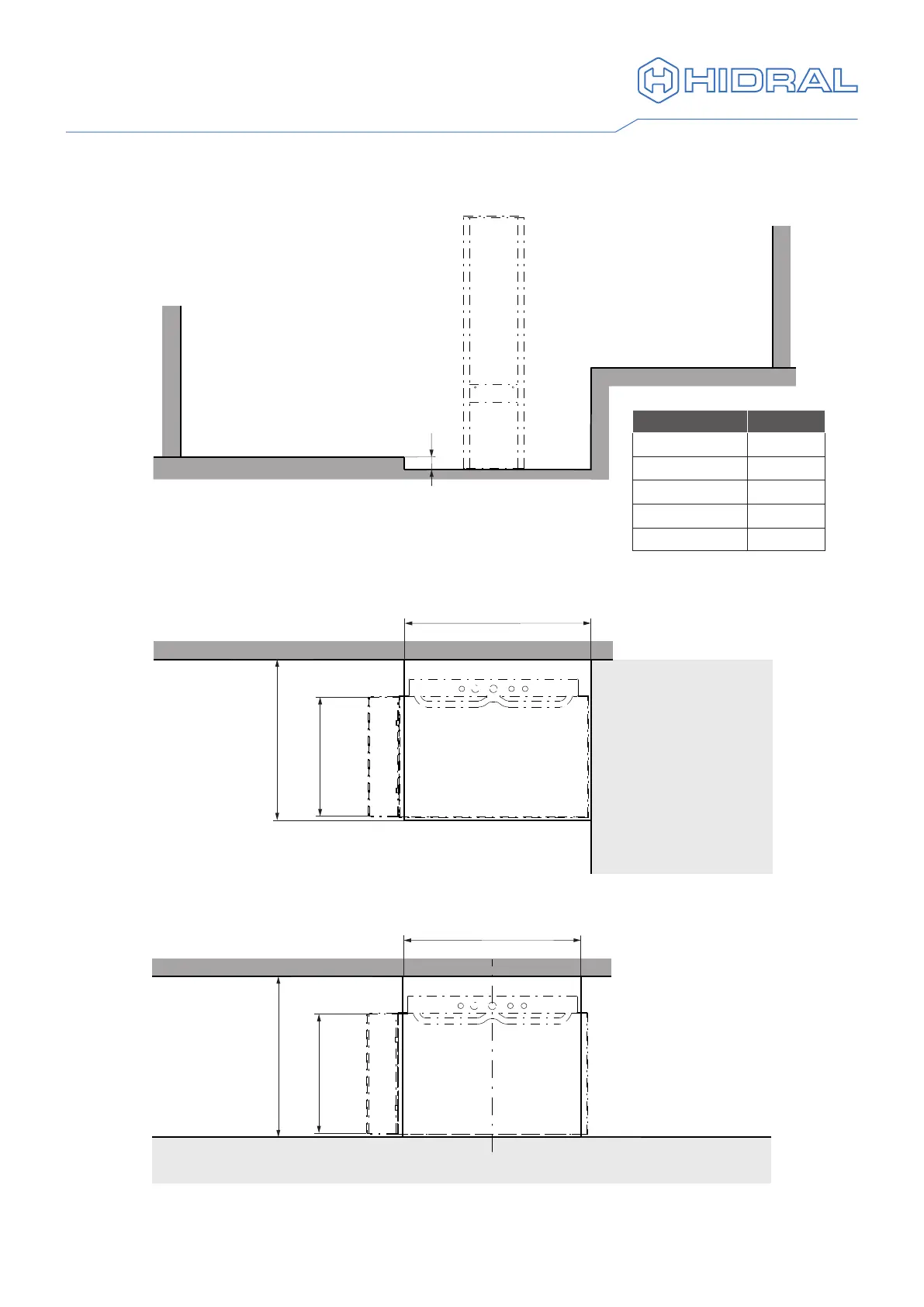

6 For the lower protection option, check that the pit dimensions are correct.
- F Pit depth
R (mm) F (mm)
≤ 400 ≥30
400< ≤ 700 ≥45
700< ≤1000 ≥60
1000< ≤1300 ≥75
1300< ≤1500 ≥90
Upper
level
Lower
level
F
- Pit dimensions for 180º access: (A+255) x 1220
Upper levelLower level
1220
A+255
A
- Pit dimensions for 90º access: (A+255) x 1150
Upper level
Lower level
1150
A+255
A
