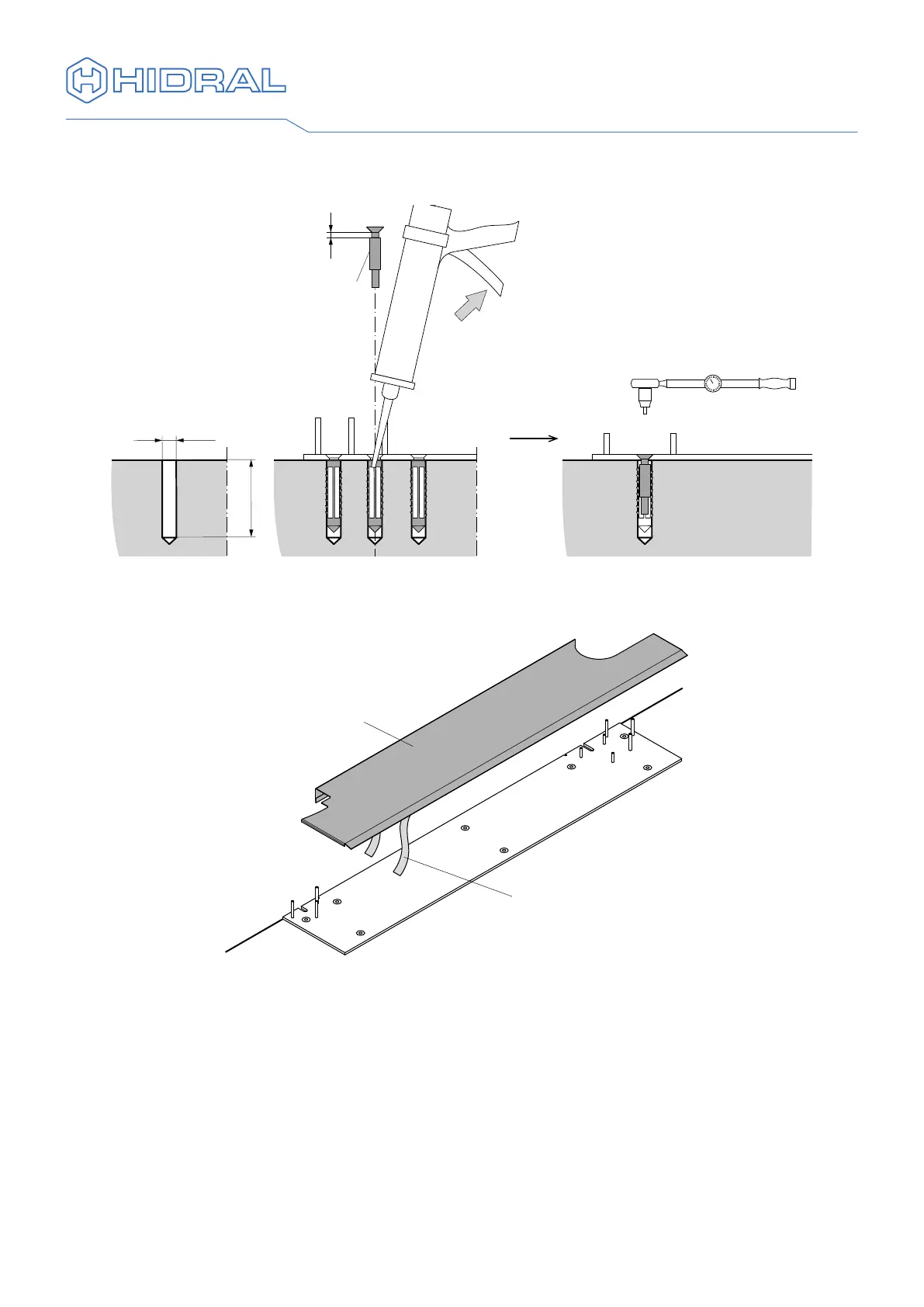

10 Wait for an hour without touching the sleeves and screws until the resin has
hardened. Then tighten the screws to a maximum torque value of 3 Nm.
IM560_0902
1:5
> 1h
£3 Nm
5
x6
Sleeve and
countersunk
screw M8
100
Ø16
11 Clean the xing plate to remove any dust and grease. Remove the adhesive
protector from the xing plate trim and stick it on it as tightly as possible to the wall.
Trim
Adhesive tape
protector
