IM-560en
Vers. 05
Page 28
ASSEMBLY INSTRUCTIONS
VERTICAL LIFTING PLATFORM PH-300
1 Measure the depth at which the built-in xing plate will be xed and cut the
M6x140 rods by adding 50 mm to this measurement for 6 of the rods and 30 mm
for the remaining 3.
2 Bearing in mind the side on which the door opens, t the rods to the base plate with
nuts.

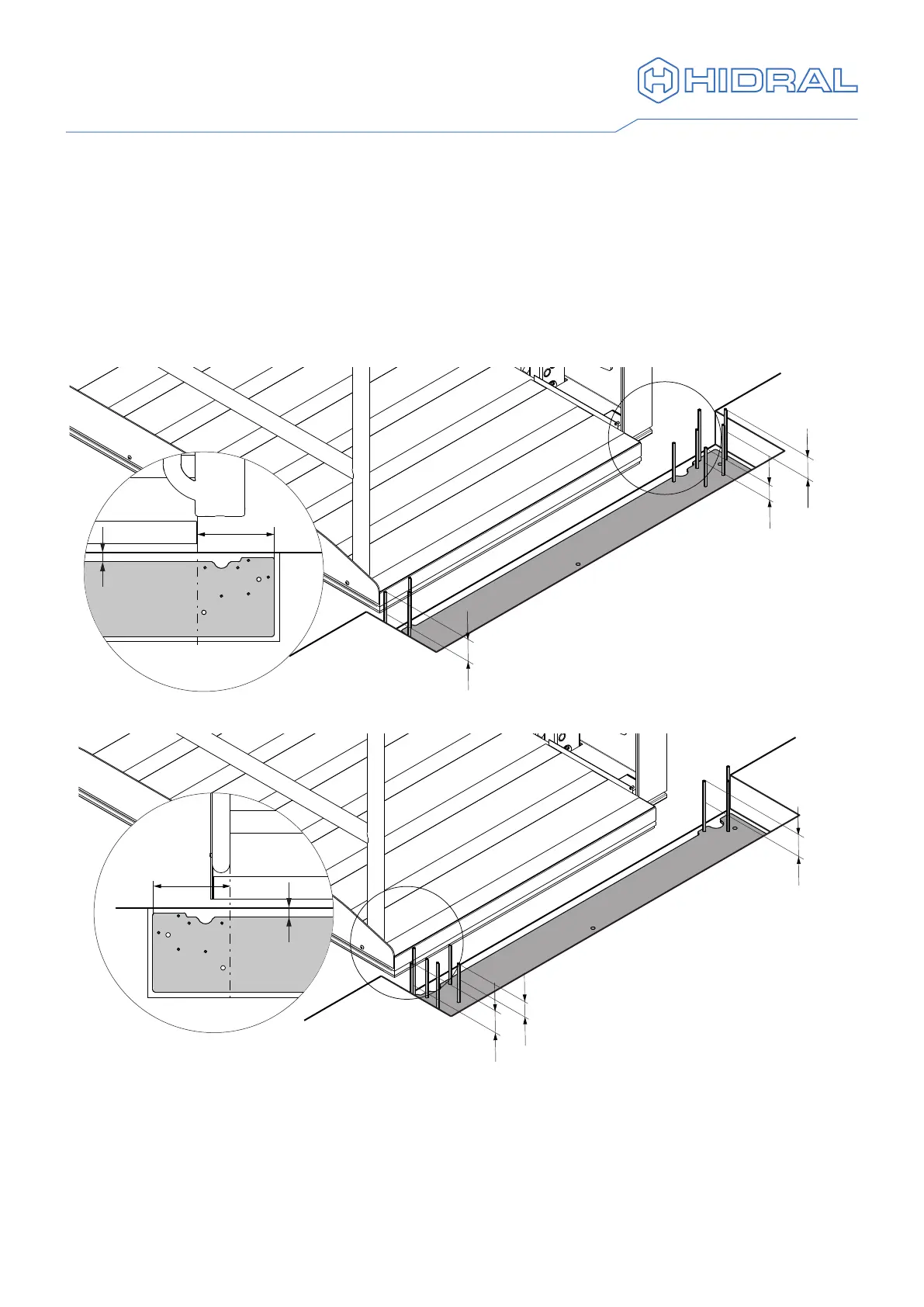

3 Position the assembly in such a way as to respect the position dimensions
indicated, according to alternative Ⓐ for the right-hand door or Ⓑ for the left-hand
door.
Ⓐ Right hand
50
50
30
175
20
Ⓑ Left hand
50
50
30
175
20
4 Drill to Ø10 and a depth of 85 mm using the base plate as a template.
5 Blow the holes.
6 Fill the drill holes from the bottom outwards with 2 applicator shots. Immediately
insert the M8 rods with their nuts and washers before the resin can harden.
Attachment using a built-
in plate
Attachment using a built-
in plate
