1. Model check and handling
1-5
machine. Mismatched shaft center causes vibration, and may cause damage to the bearing.
Use a rubber hammer to install couplings to prevent excessive force from being applied to the
shaft and bearing.

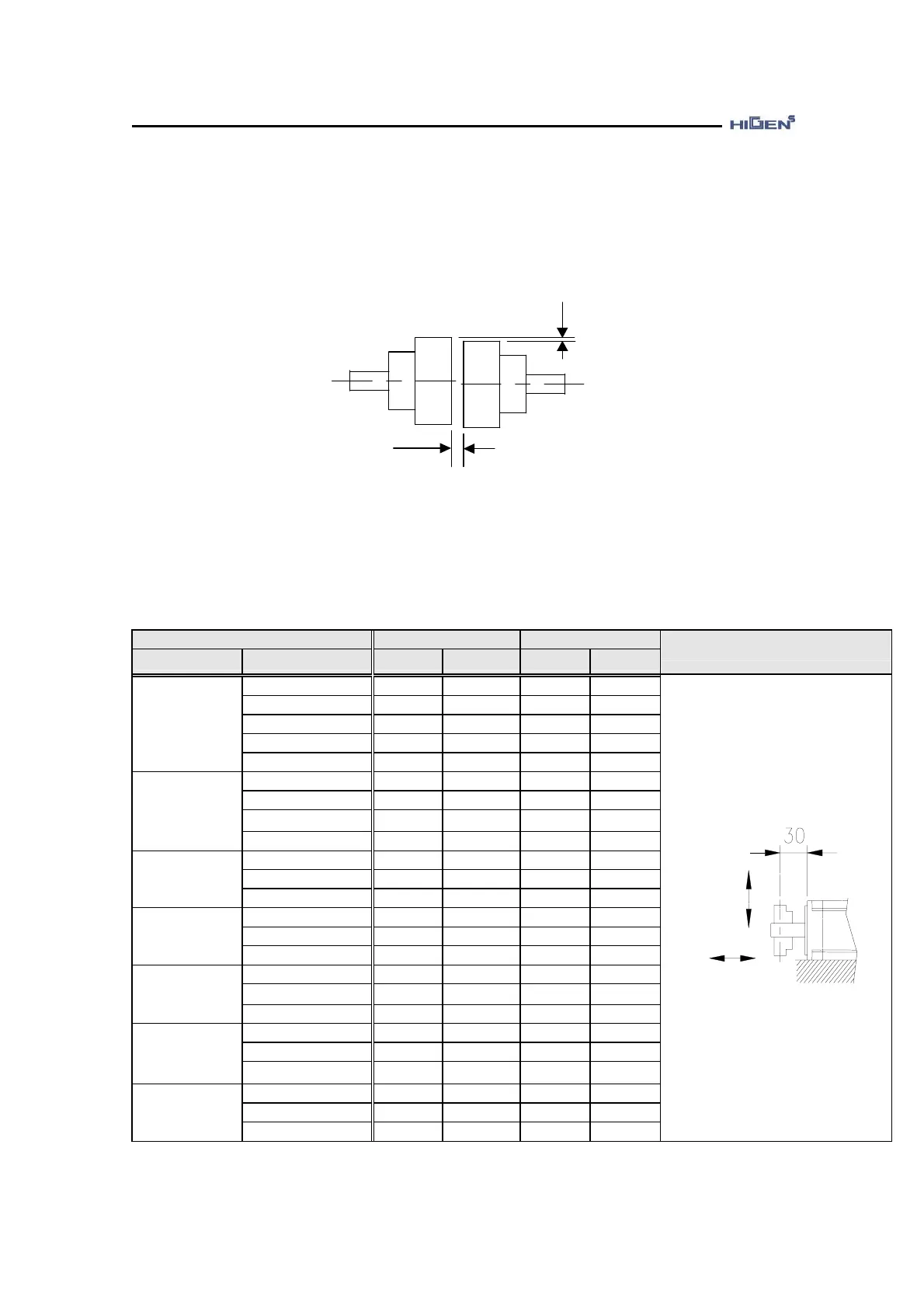

Check 4 places in turn. The difference between maximum and minimum should be 0.03 or
lower.
3) Load tolerance on shaft
- Use flexible couplings, and maintain the shaft center deviations within the specified
tolerance.
- Use pulleys and sprockets with the allowable load.
-
MOTOR MODEL RADIAL LOAD AXIAL LOAD
Series Type N Kgf N kgf
REFERENCE DIAGRAM
CN01~CN05 196 20 68 7
CN06~CN08 245 25 98 10
CN09~CN15 490 50 196 20
CN20~CN30 686 70 343 35
CN
CN30A~CN50A 1470 150 490 50
KN03~KN07 245 25 98 10
KF08~KN11 490 50 196 20
KF15~KN22 686 70 343 35
KN
KN22A~KN55 1470 150 490 50
TN05~TN09 490 50 196 20
TN13~TN17 686 70 343 35 TN
TN20~TN75 1470 150 490 50
LN03~LN06 490 50 196 20
LN09~LN12 686 70 343 35
LN
LN12A~LN40 1470 150 490 50
KF08~KF10 490 50 196 20
KF15 686 70 343 35 KF
KF22~KF50 1470 150 490 50
TF05~TF09 490 50 196 20
TF13 686 70 343 35
TF
TF20~TF44 1470 150 490 50
LF03~LF06 490 50 196 20
LF09 686 70 343 35 LF
LF12~LF30 1470 150 490 50
Radial
Load
A
xial
Load
