Appendix Ⅱ Noise control
Ⅱ-3

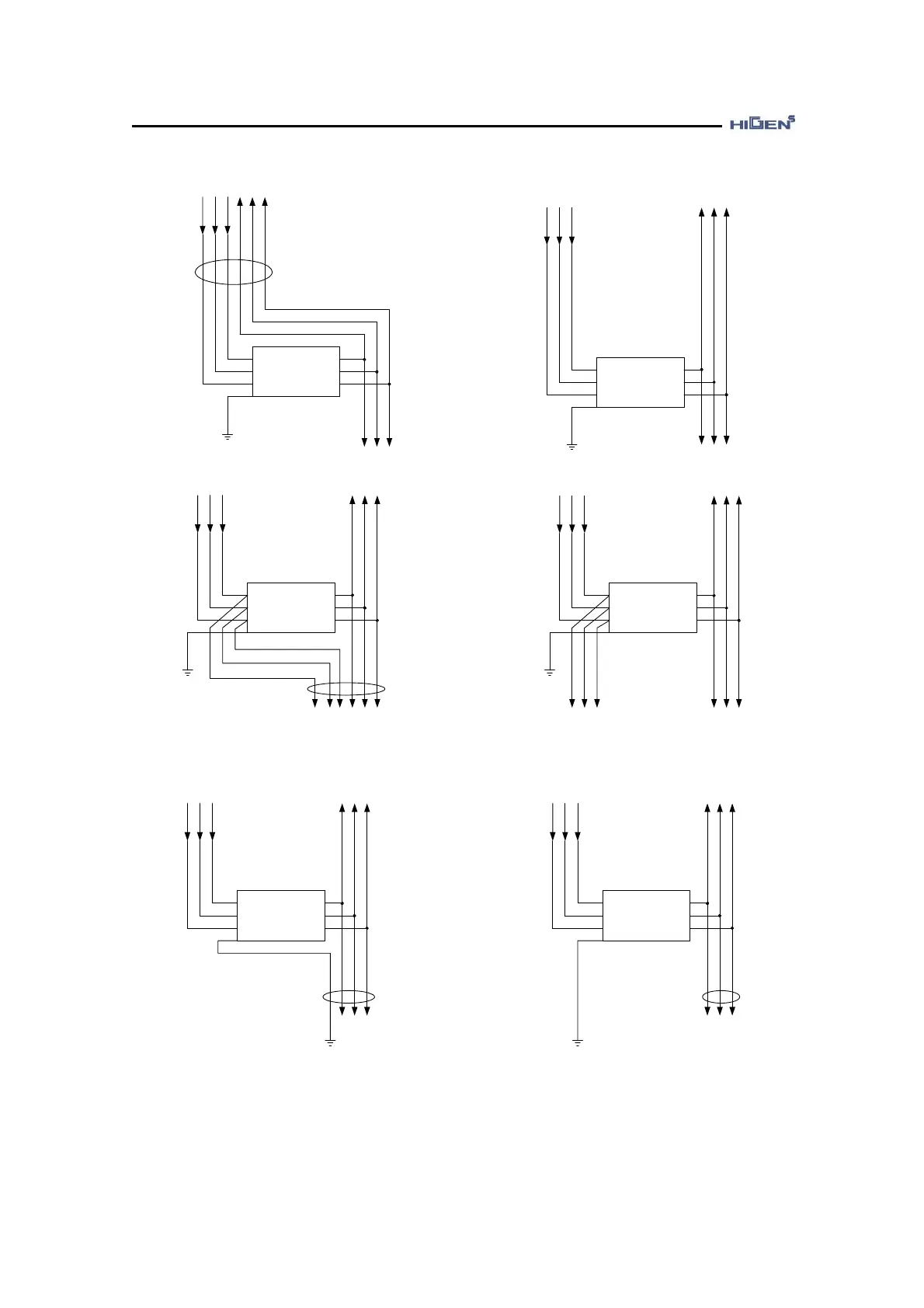

※ Example of noise filter wiring
NOISE FILTER
BOX
NOISE FILTER
BOX
< X > < O >
NOISE FILTER
BOX
NOISE FILTER
BOX
< X > < O >
[ Do not put the input and output line in the same duct or bundle them together. ]
NOISE FILTER
BOX
NOISE FILTER
BOX
< X > < O >
[ Do not accommodate the noise filter ground line, output lines and other signal lines in
the same duct or bundle them together. ]
