Higen FDA7015 - Page 70

3. Parameter setting
3-37
JOG-07
Jog Time2/REV2
Unit
[sec]/[rev]
Display range e
0.00 ~ 5000.00
Manufactured
default
1.00
Speed/Torque/
Position control
JOG-08
Jog Speed 3
Unit
rpm
Display range
-9999.9 ~ 9999.9
Manufactured
default
200.0
Speed/Torque/
Position control
JOG-09
Jog Time3/REV3
Unit
[sec]/[rev]
Display range
0.00 ~ 5000.00
Manufactured
default
1.00
Speed/Torque/
Position control
JOG-10
Jog Speed 4
Unit
rpm
Display range
-9999.9 ~ 9999.9
Manufactured
default
-200.0
Speed/Torque/
Position control
JOG-11
Jog Time4/REV4
Unit
[sec]/[rev]
Display range
0.00 ~ 5000.00
Manufactured
default
1.00
Speed/Torque/
Position control
JOG-12
Jog Speed 5
Unit
rpm
Display range
-9999.9 ~ 9999.9
Manufactured
default
400.0
Speed/Torque/
Position control
JOG-13
Jog Time5/REV5
Unit
[sec]/[rev]
Display range
0.00 ~ 5000.00
Manufactured
default
1.00
Speed/Torque/
Position control
JOG-14
Jog Speed 6
Unit
rpm
Display range
-9999.9 ~ 9999.9
Manufactured
default
-400.0
Speed/Torque/
Position control
JOG-15
Jog Time6/REV6
Unit
[sec]/[rev]
Display range
0.00 ~ 5000.00
Manufactured
default
1.00
Speed/Torque/
Position control
JOG-16
Jog Speed 7
Unit
rpm
Display range
-9999.9 ~ 9999.9
Manufactured
default
800.0
Speed/Torque/
Position control
JOG-17
Jog Time7/REV7
Unit
[sec]/[rev]
Display range
0.00 ~ 5000.00
Manufactured
default
1.00
Speed/Torque/
Position control
JOG-18
Jog Speed 8
Unit
rpm
Display range
-9999.9 ~ 9999.9
Manufactured
default
-800.0
Speed/Torque/
Position control
JOG-19
Jog Time8/REV8
Unit
[sec]/[rev]
Display range
0.00 ~ 5000.00
Manufactured
default
1.00
Speed/Torque/
Position control

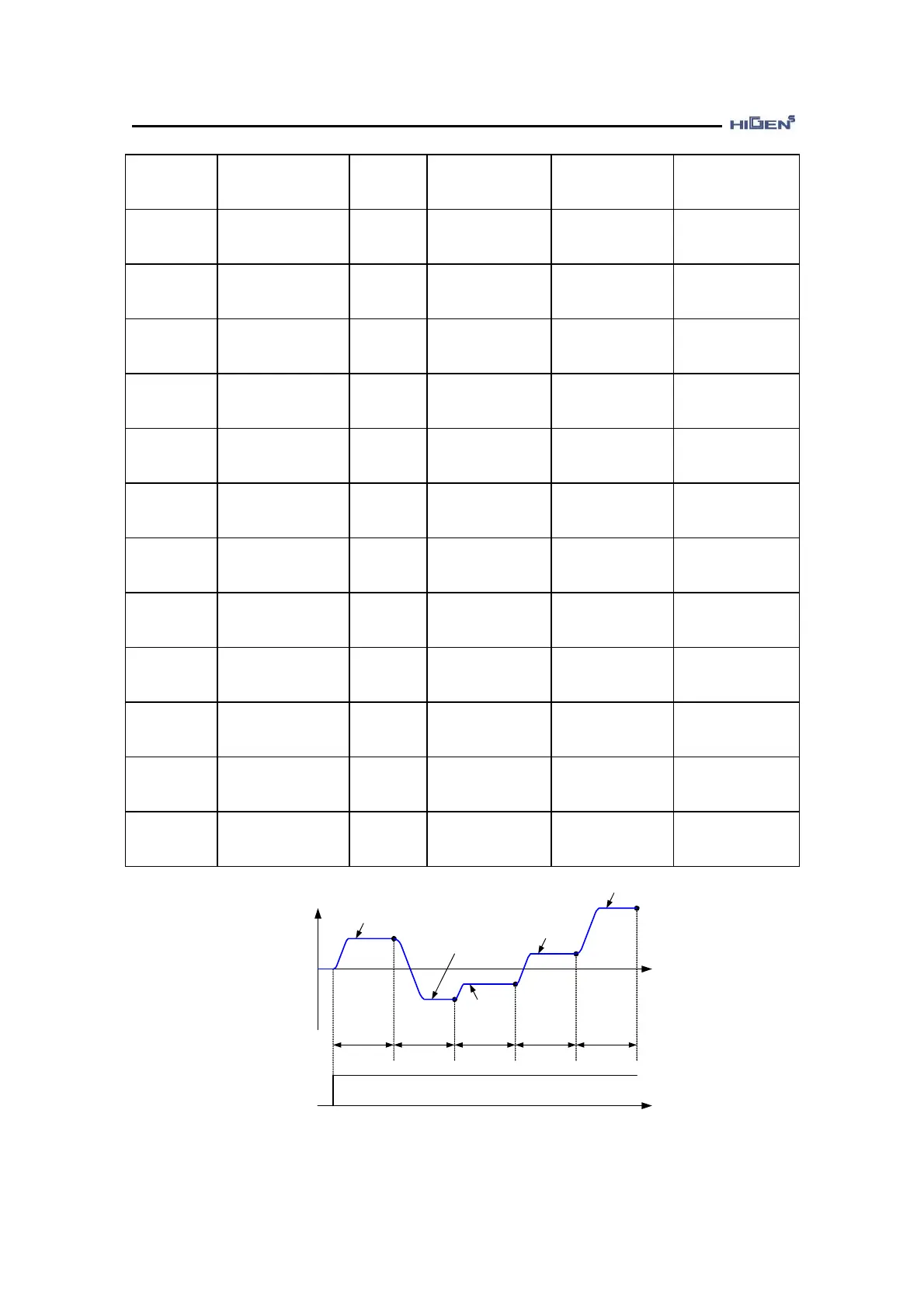

Time [sec]
OFF
ON
Speed
Servo
ON
0
(JOG-05) (JOG-07) (JOG-09) (JOG-11) (JOG-13)
(JOG-04)
(JOG-06)
(JOG-12)
(JOG-10)
(JOG-08)
[sec]
[ Auto jog mode 1(Speed - time) ]
