Higen FDA7030 User Manual

3. Parameter setting
3-25
P03-20
Clamp Mode
Unit
-
Setting range
0 ~ 2
Manufactured
default
0
Speed control

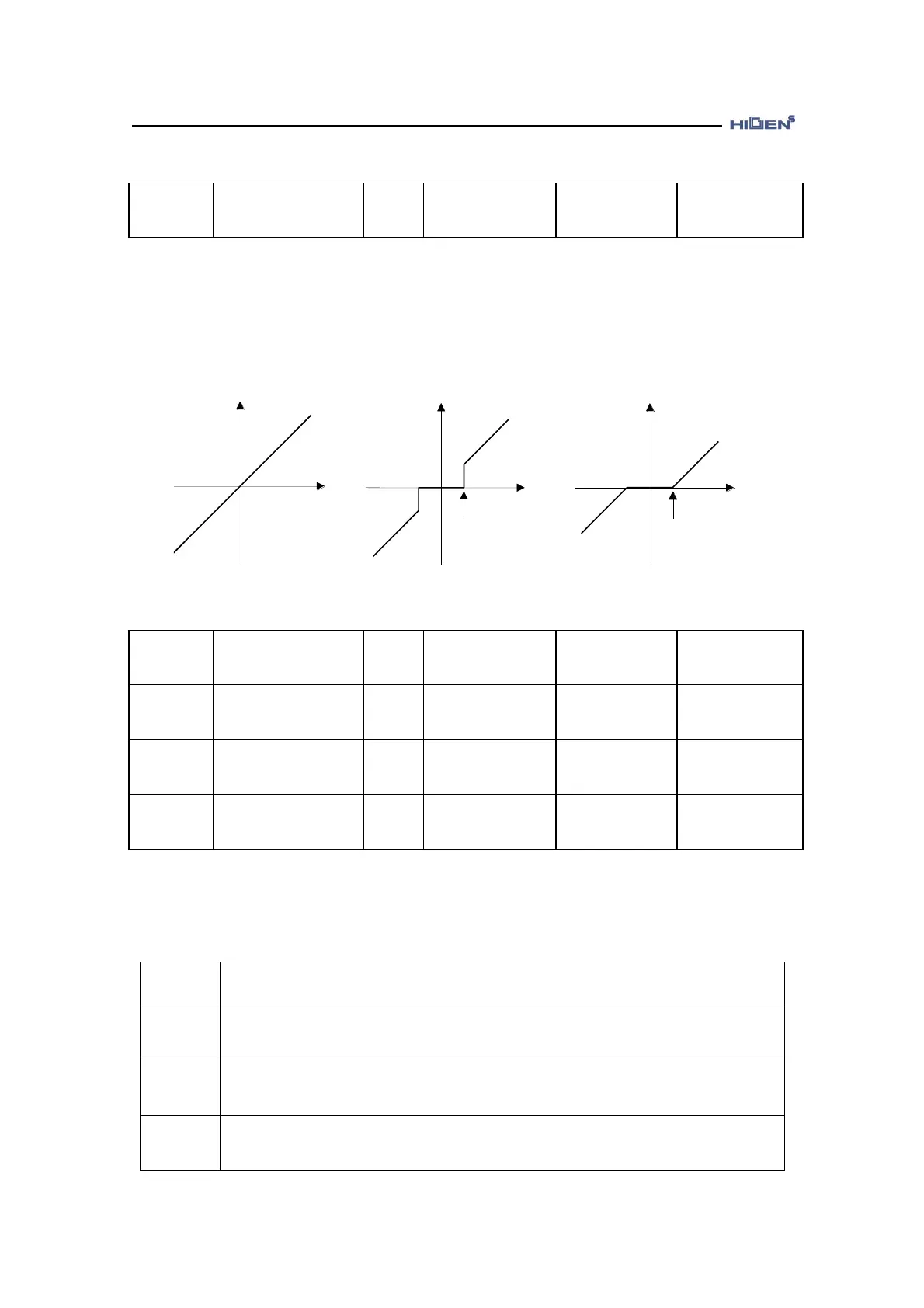

Clamp mode is only applied in the speed control mode. Clamp mode can be used when
stopping the servo motor without dropping the analog command voltage to 0[V]. Once it is
clamped, it will return to its clamped location even when it turns by external force.
Command
voltage
Speed
command
Speed
command
Command
voltage
Clamp voltage
Speed
command
Command
voltage
Clamp voltage
Clamp mode:0 Clamp mode:1 Clamp mode:2
P03-21
Clamp Voltage
Unit
mV
Setting range
-1000.0 ~ 1000.0
Manufactured
default
0.0
Speed control
P03-22*
F/Back TC
Unit
ms
Setting range
0.0 ~ 2000.0
Manufactured
default
0.0
Speed control
P03-23
Zero SPD VIB REJ
Unit
rpm
Setting range
0.0 ~ 1000.0
Manufactured
default
0.1
Speed/position
control
P03-24*
Feedforward TRQ
Unit
-
Setting range
0 ~ 2
Manufactured
default
0
Speed/position
control
When torque command operation mode is set to “2”, the feedforward TRQ can be used. The
feedforward TRQ input enables fast decision making during speed control. But if the feed forward
input is too high, it can cause an overshoot or undershoot. Apply appropriately.
Set value
Operation explanation
0
The function by analog torque command is operated by input contact point
(SPDLIM/TLIM).
1
The analog torque command continually operates in torque limit value irrelevant
from the contact point input.
2
The analog torque command operates as feedforward torque item. (Precision
control)
