2. Wiring and connection
2-6
2.2.2. Medium type servo drive

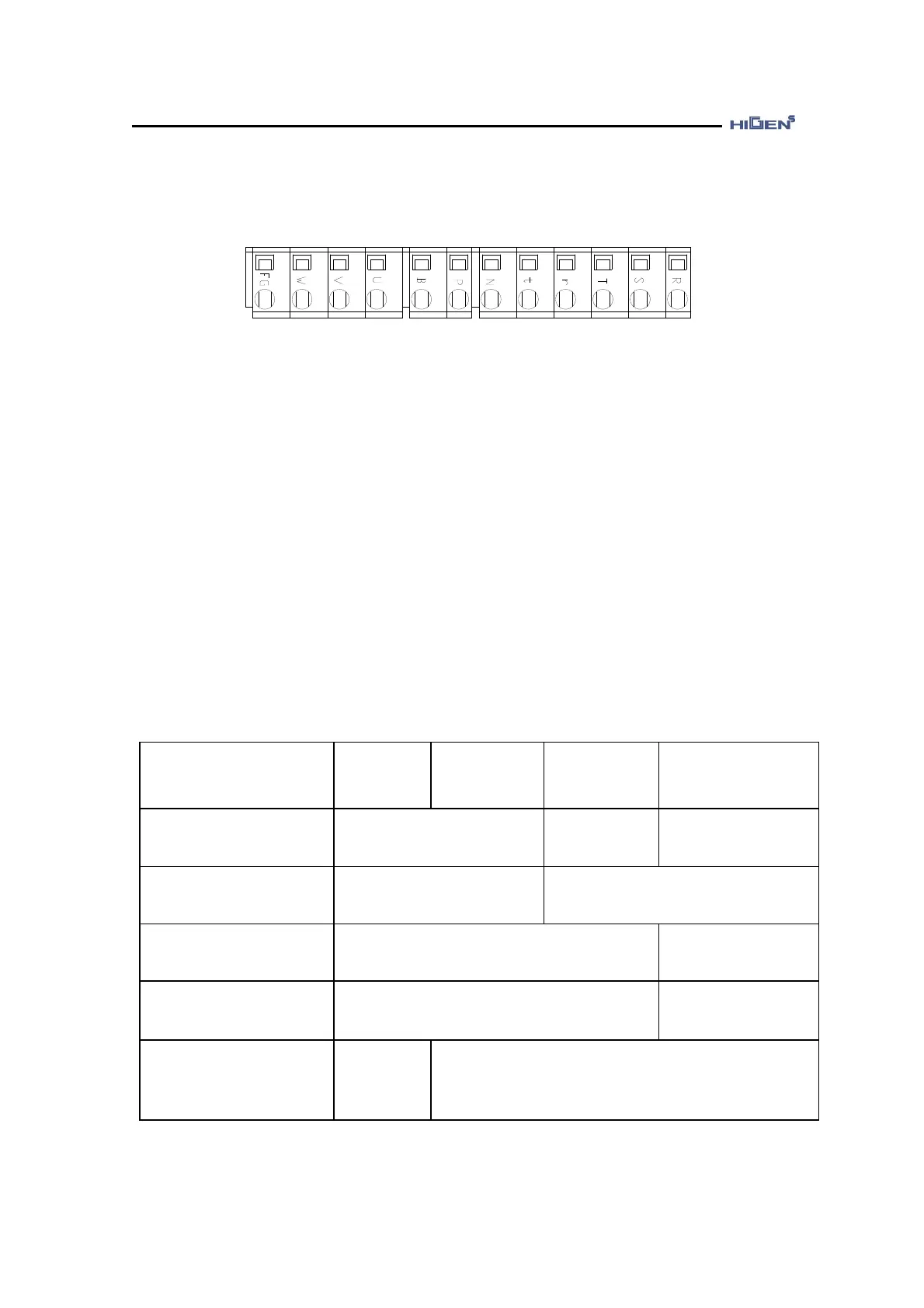

[ FDA7004/7004B ~ FDA7010 Terminal ]
The usage and wiring method of FDA7004/7004B~FDA70010 are as follows.
1) As the main power of the power circuit, connect the R,S and T terminal to 3 phase
AC200~230[V].
2) As the auxiliary power of the power circuit, connect the r and t terminal to single phase
AC200 ~ 230[V].
3) Connect the recovery resistance of internal type during shipment between the
terminals P and B.
4) At the U, V and W terminal, connect the U, V and W phase of the servo motor.
5) Ground the FG terminal. Connect the grounding wire of the servo motor with this
terminal.
6) When main power is DC voltage, supply DC280~325[V] between “P[+]” and “N[-]”.
7) Don’t supply AC power between “P[+]” and “N[-]”.
AC SERVO
Operating device
FDA7004B
FDA7004
FDA7005
FDA7010
Wire thickness
AWG #16(1.25mm
2
)
AWG #14
(2.0mm
2
)
AWG #12 (3.5mm
2
)
Open/close device
GMC-12(13A) level
product
GMC-40(35A) level product
Breaker
ABS33b(5A) level product
ABS33b (10A)
level product
Noise filter
P3B4010-DA(10A) level product
NFZ-4030SG
(30A)level product
Regenerated
resistance
50W 50
External
resister
70W 50
Internal resister
♥ Open/close device and Breaker : LS Industrial Systems,
http://www.lsis.biz
♥ NOISE FILTER : Woonyoung(http://woonyoung.com), OKY (
http://www.oky.co.kr
),
ORIENT(
http://www.suntronix.com
)
