2. Wiring and connection
2-10

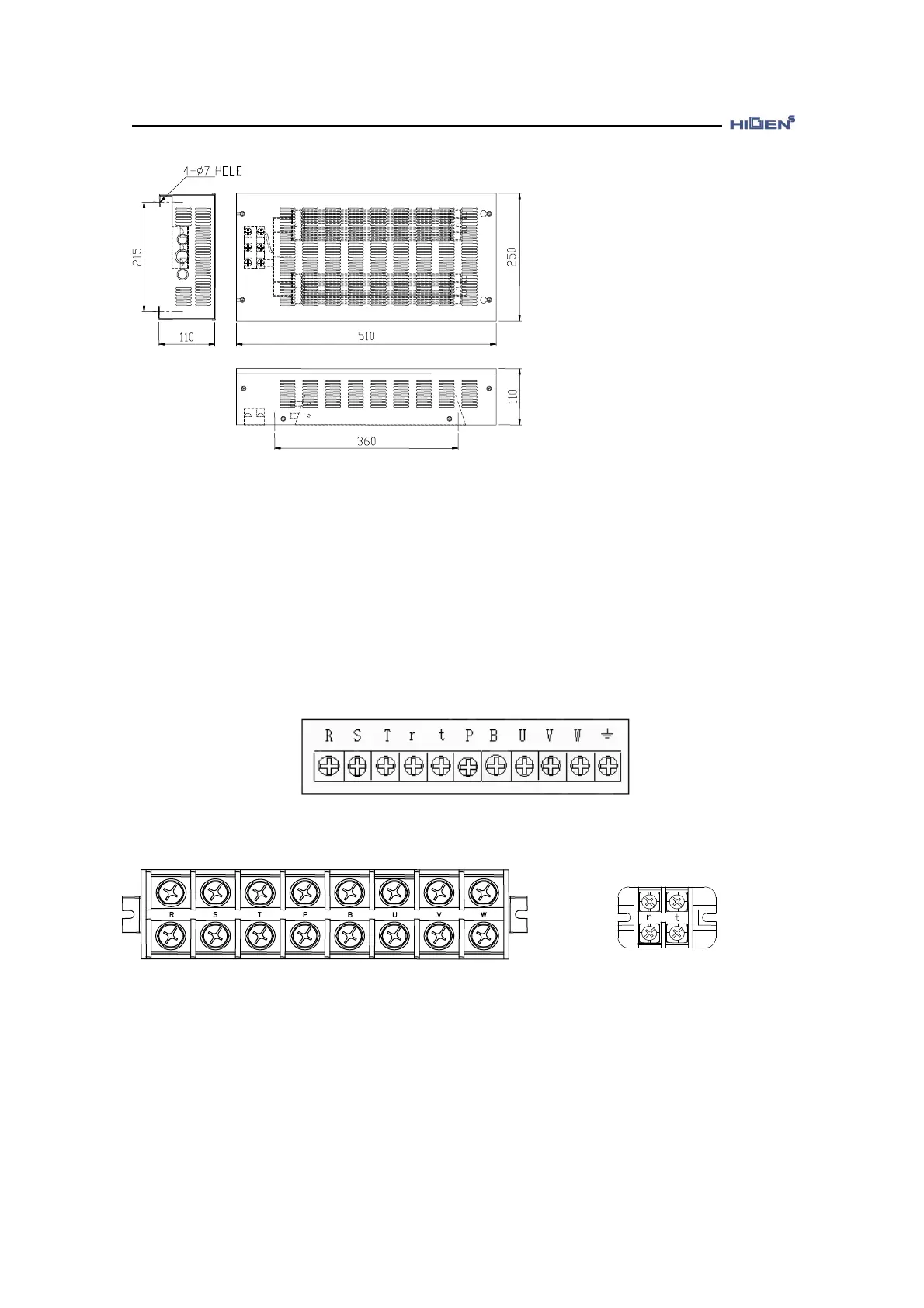

<Drawing C> Order Code : FDA600010S (FDA7110, 1600W/4 Ω)
FDA600011S (FDA7150, 2000W/3 Ω)
2.3. Connection terminal of AC380V series servo drive
2.3.1. Large type servo drive
[ FDA7020-H ~ FDA7045-H Terminal ]
(a) Main Circuit Terminal (b) Control Circuit Terminal
[ FDA7075-H ~ FDA7150-H Terminal ]
The usage and wiring method of FDA7020-H~FDA7150-H are as follows.
1) As the main power of the power circuit, connect the R,S and T terminal to 3 phase
AC380~440[V]. Please check the voltage specifications before wiring the power.
