3. Parameter setting
3-19
P02-34
MULTI Turns Limit
Unit
rev
Setting range
0~65535
Manufactured
default
65535
Speed/Torque/
Position control

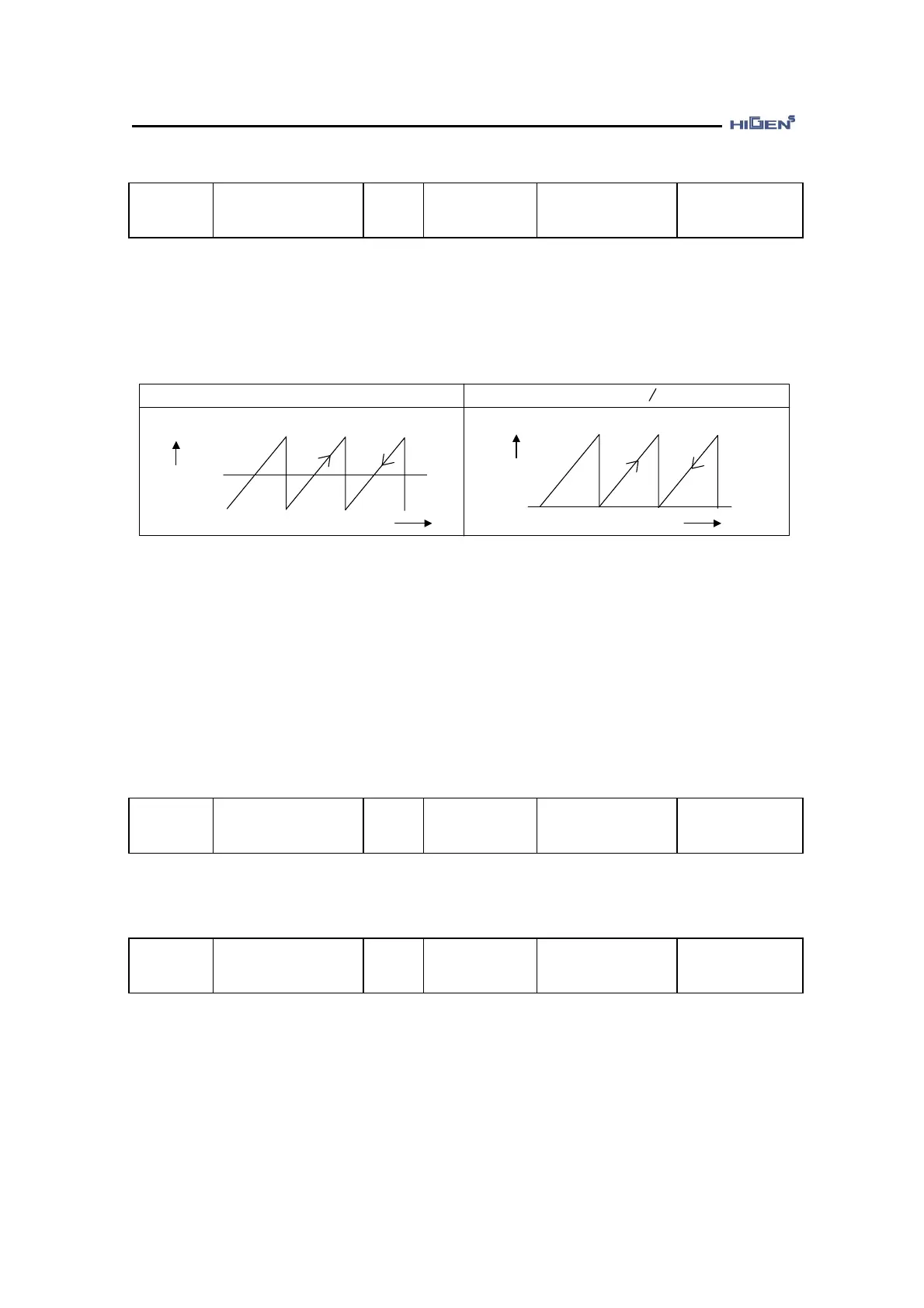

Multiturn limit setting is a parameter to set the upper limit of multi-turn data from
encoder when absolute encoder is used (P01-12 = ENC-R). When the rotation amount
exceeds the set value, the encoder rotation amount returns to zero. The range of multi-
turn data differs from the factory settings and other settings.
Manufactured default(=65535)
Setting Value(=65535)
Multi
Turn
+32767
-32767
CCW CW
Rotation
0
CCW CW
0
Rotation
Multi
Turn
P02-34 Setting value
Other than the factory setting (≠ 65535) When the motor rotates in the reverse direction
from the multi-rotation data 0, the multi-turn data changes to the setting value of P02-
34. When the multi-turn data rotates in the forward direction at the setting value of P02-
34, the multi-turn data changes to zero. For P02-34, set the value of (Multiple desired
rotation-1).
* Changing the multiturn limit is not necessary except for special applications. This
parameter is related to the host controller, so special care should be taken.
P02-35
ABS BATT DETEC
Unit
-
Setting range
0~1
Manufactured
default
0
Speed/Torque/
Position control
When using absolute encoder, the battery voltage drop (3.1 ± 0.1 [V] or less) can be
selected as alarm or warning.
P02-36
LOW BATT FILTER
Unit
ms
Setting range
10~10000
Manufactured
default
100
Speed/Torque/
Position control
This parameter sets the filter time constant for abnormal alarm occurrence due to noise
signal or cable mounting condition when using absolute encoder. The larger the value is
selected, the less sensitive the battery alarm is caused by the noisy signal.
