VB2200 Series Vision Box·User Manual
2
Chapter 2 Installation
2.1 Dimension

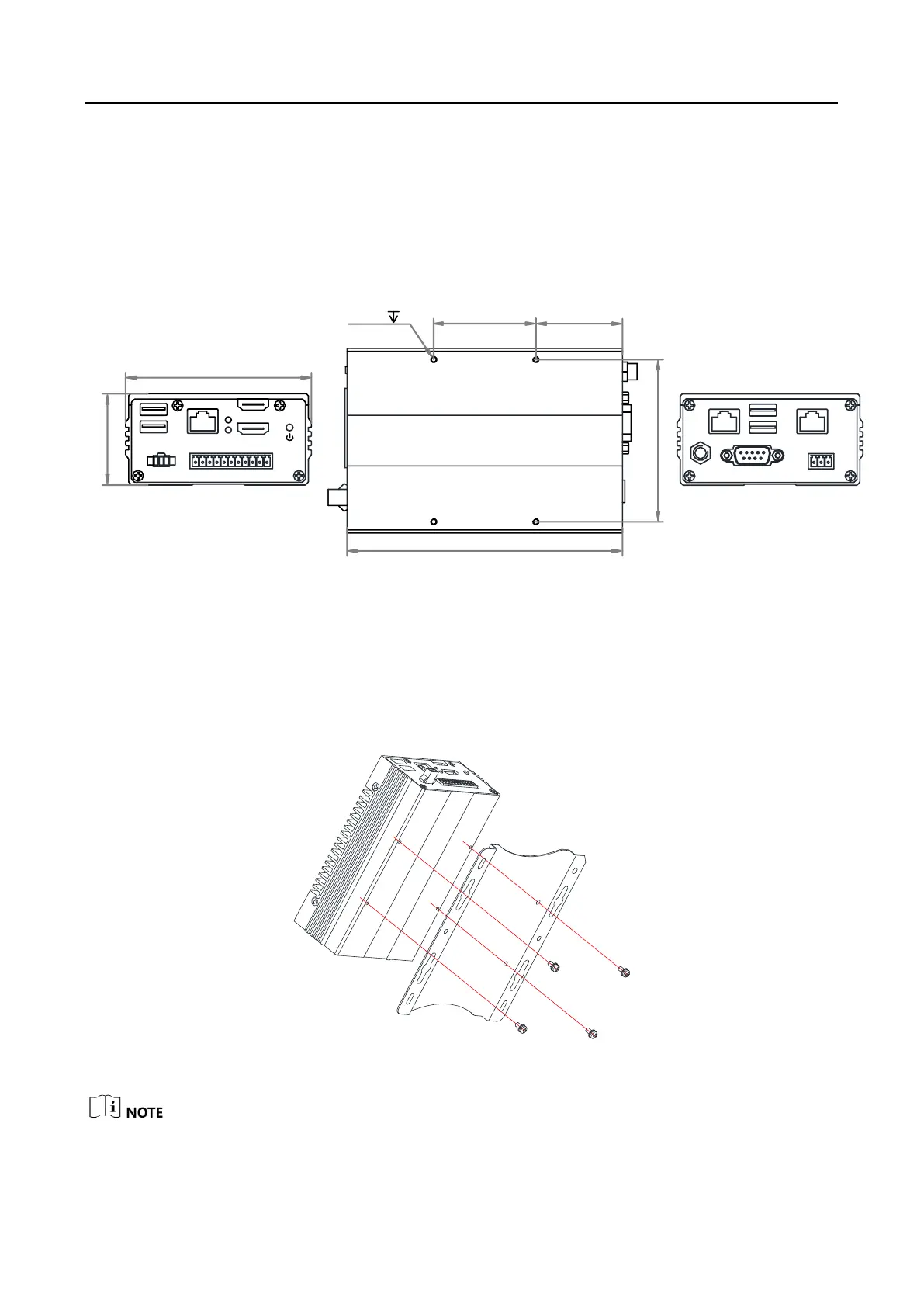

Refer to the following figure for the dimensions of the vision box.
45
134.8
50
80
42.4
4-M3 5
91
USB2.0
LAN
PWR
HDMI1
HDMI2
DC 24V
RS-232
RS-485
LAN
USB2.0
USB3.0
1
2
3
4
G
LAN
1
2
3
4
G
C
Unit: mm
HDD
Figure 2-1 Dimension
2.2 Installation
Install and fix the vision box on the mounting plate with four M3 screws, and then fix the device on
other mechanical parts.
Figure 2-2 Installation
The mounting plate should be purchased separately.
