VB2200 Series Vision Box·User Manual
15
Pulse Period and Pulse Width are only valid when you select Multi_Pulse as Mode.
The Duration cannot be smaller than the Pulse Period when Multi_Pulse is selected as Mode.
4.5.2 Output Enable
Output enable is used to set whether the device outputs signal or not. After above-mentioned
settings, if you want to let the port output signals, you should check the specific port No., select
Enable as Open Enable, and click Apply after settings.
4.6 Input and Output Connection
The input and output connection module is used to set the connection between the device’s
opto-isolated input and output. After receiving valid input signals, the device’s connected output
interface will output signals according to specific output settings.

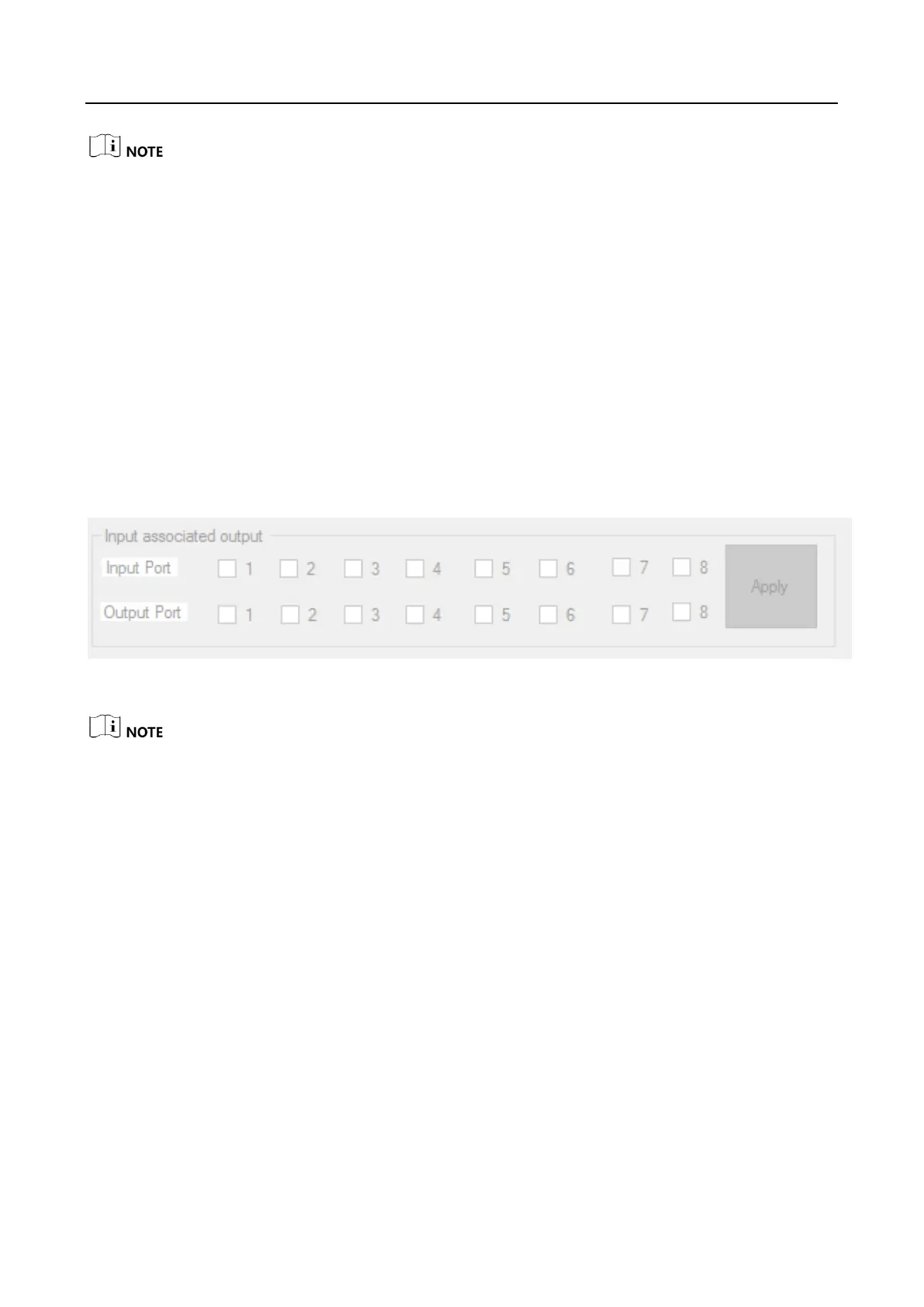

Figure 4-7 Input and Output Connection
New input signal received during processing will be filtered directly.
The device can connect one input port with one output input only.
After checking one input port and one output port, you should click Apply to apply settings. If you
want to cancel connection, do not check any input and output ports, and click Apply to apply
settings.
4.7 Light Source Settings
The light source settings allow you to set light source related parameters. After selecting Port,
Status and Brightness, you should click Apply to apply it.
Regarding Status, you can check On or Off to let the light source turn on or turn off after receiving
a trigger signal that can be rising edge or falling edge.
