2.2.2 Alarm Output Wiring

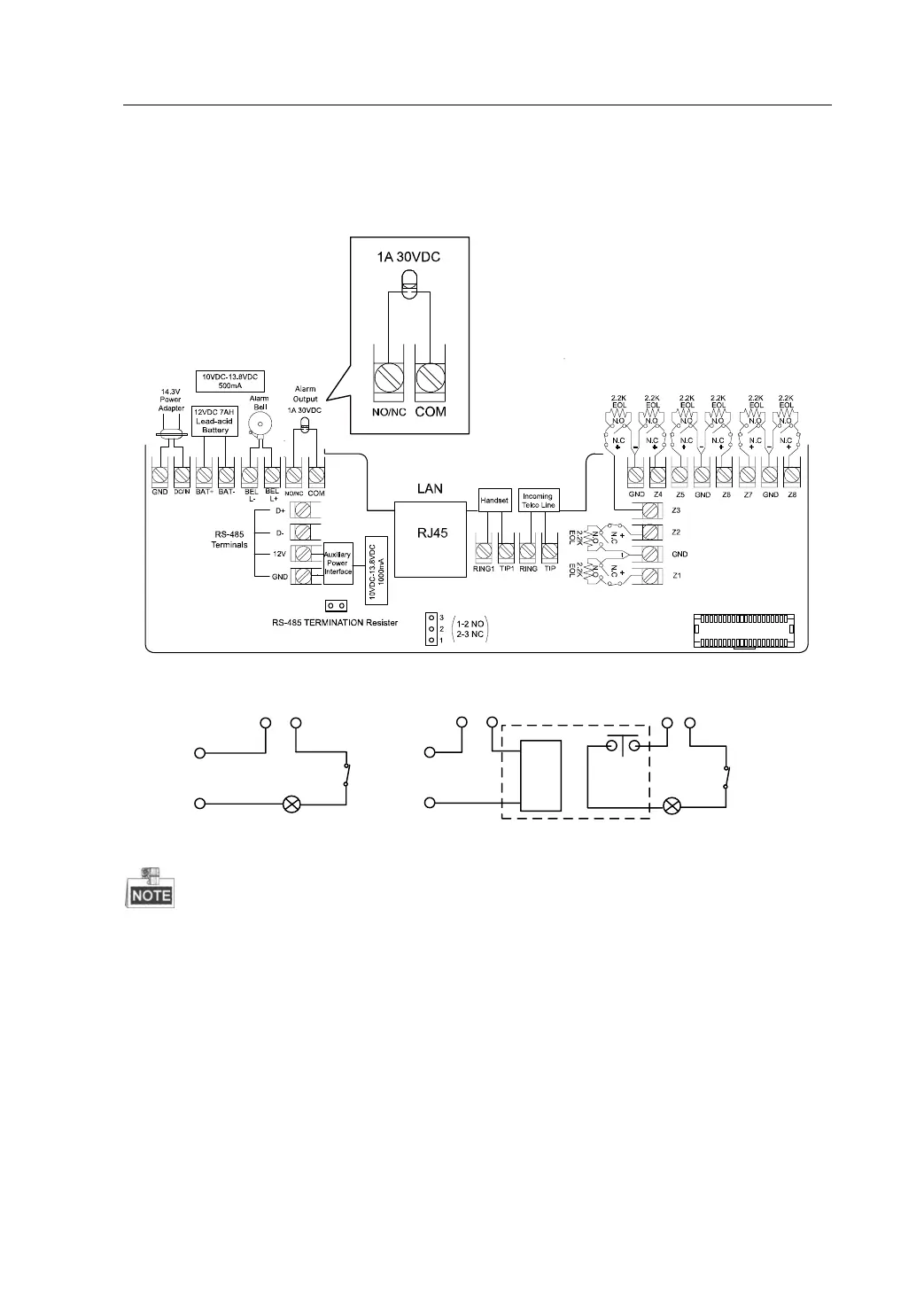

The alarm output interfaces of the control panel are show as follows.
The wiring of alarm output is shown as follows:
External Device
NO/NC
COM
DC12V
Breaker
External DC Load
External Device
NO/NC
COM
DC12V
Breaker
AC220V
External AC Load
Relay
The DC current supplied by the control panel is used for external devices. The
load current cannot be over 1A.
2.2.3 Keypad Wiring
The keypad wiring is shown as follows.
