User Manual of Digital Video Recorder
130
10.1 Initializing HDDs
Purpose:
A newly installed hard disk drive (HDD) must be initialized before it can be used with your DVR.
Steps:
1. Enter the HDD Information interface.
Menu > HDD>General.

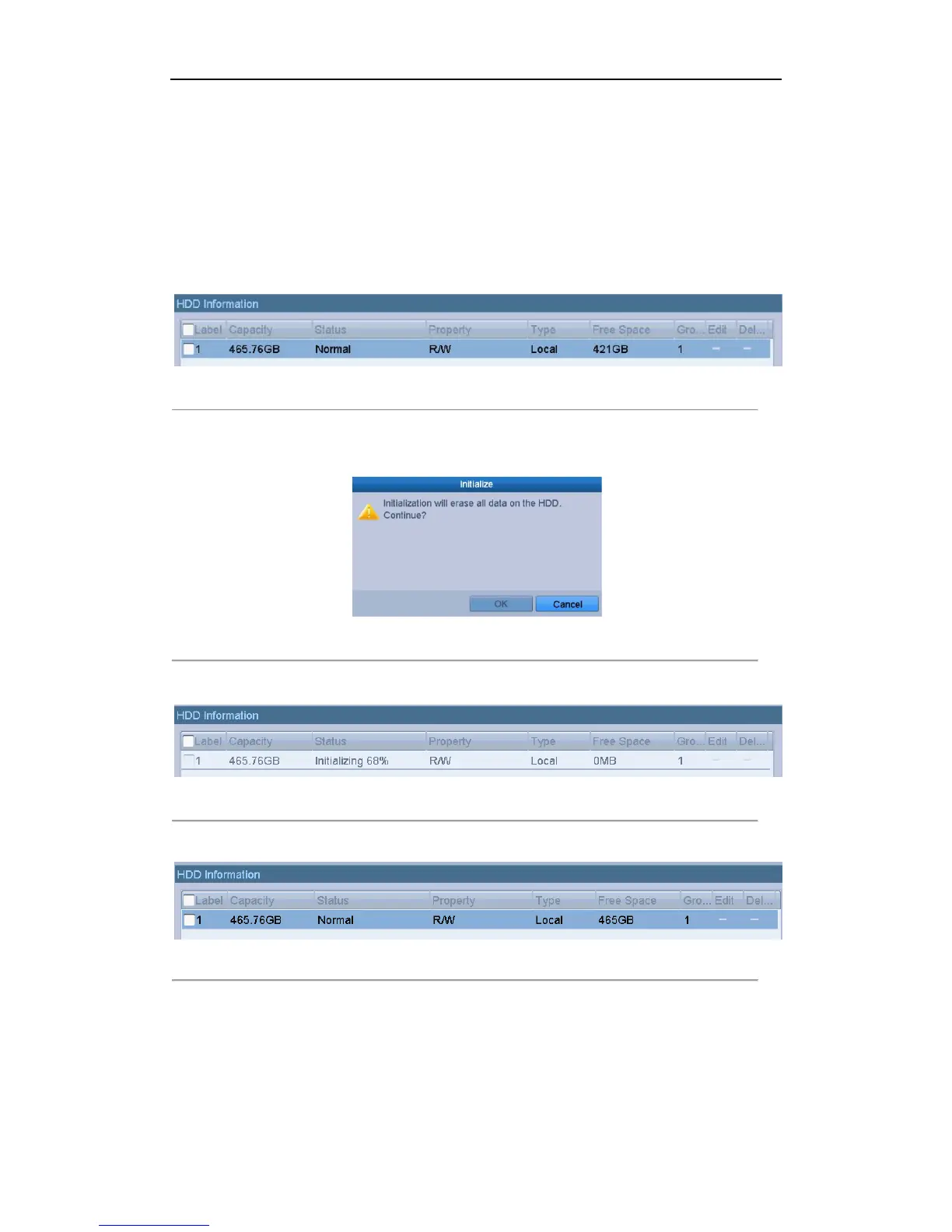

Figure 10. 1 HDD Information Interface
2. Select HDD to be initialized.
3. Click the Init button.
Figure 10. 2 Confirm Initialization
4. Select the OK button to start initialization.
Figure 10. 3 Start Initialization
5. After the HDD has been initialized, the status of the HDD will change from Uninitialized to Normal.
Figure 10. 4 HDD Status Changes to Normal
Note: Initializing the HDD will erase all data on it.
The HDDs which are free of working for a long time can be enabled to sleep, thus to decrease the power
consumption of the device and extend the life of the HDDs.
Click Menu > HDD > Advanced.
