User Manual of Digital Video Recorder
153
12.4 Importing/Exporting Configuration Files
Purpose:
The configuration files of the DVR can be exported to local device for backup; and the configuration files of one
DVR can be imported to multiple DVR devices if they are to be configured with the same parameters.
Steps:
1. Enter the Import/Export Configuration File interface.
Menu > Maintenance > Import/Export

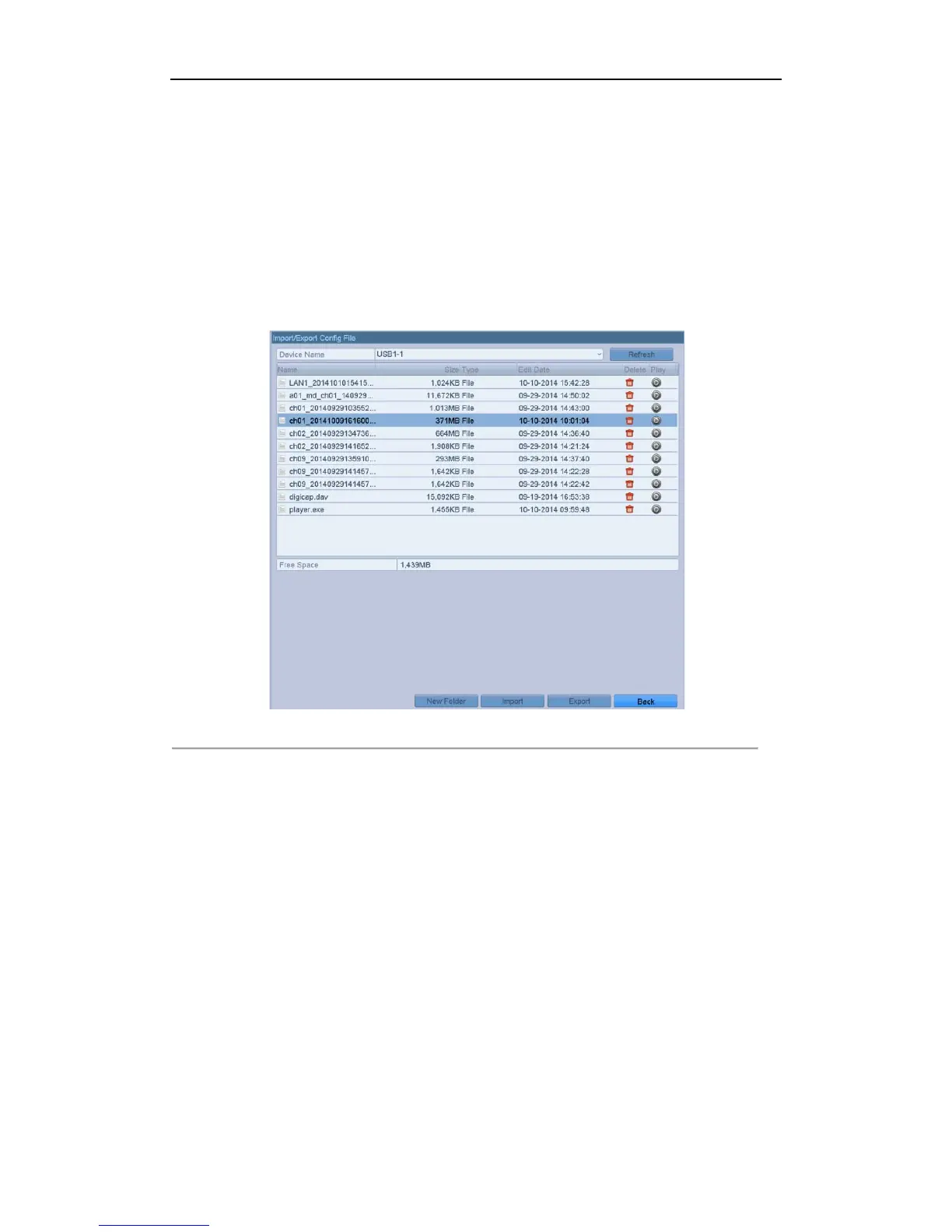

Figure 12. 11 Import/Export Config File
2. Click the Export button to export configuration files to the selected local backup device.
3. To import a configuration file, select the file from the selected backup device and click the Import button.
After the import process is completed, you must reboot the DVR.
Note: After having finished the import of configuration files, the device will reboot automatically.

HIKVISION DS-2CD7164-E Specifications

General

Type	IP security camera
PTZ control	Yes
Placement supported	Outdoor
Connectivity technology	Wired
Form factor	Dome
Product color	White
Protection features	Vandal proof
International Protection (IP) code	IP66
Total megapixels	1.3 MP
Maximum resolution	1280 x 960 pixels
Supported video modes	720p
Video formats supported	H.264, M-JPEG, MPEG4
Supported graphics resolutions	1280 x 960, 1280 x 720 (HD 720)
Pan range	-15 - 15 °
Tilt angle range	0 - 90 °
Angle of rotation	15 °
Minimum illumination	0.01 lx
Field of view (FOV) angle	73 °
Sensor type	CMOS
Optical sensor size	1/3 \
Optical zoom	- x
Zoom capability	-
Focus adjustment	2.0
Fixed focal length	8 mm
Password protection type	User
Wi-Fi	No
Cabling technology	10/100Base-T(X)
Supported network protocols	TCP/IP, HTTP, DHCP, DNS, DDNS, RTP, RTSP, PPPoE, SMTP, NTP, SNMP, HTTPS, FTP, 802.1x, QoS
Ethernet LAN (RJ-45) ports	1
DC output voltage	+12V
Power source type	PoE
Power consumption (max)	4 W
Operating temperature (T-T)	-10 - 60 °C
Operating relative humidity (H-H)	0 - 90 %

Weight and Dimensions

Depth	97.5 mm
Width	99.9 mm
Height	46.5 mm
Weight	250 g
