User Manual of Digital Video Recorder
159
13.3 Configuring More Settings
Steps:
1. Enter the General Settings interface.
Menu > Configuration > General
2. Click the More Settings tab to enter the More Settings interface, as shown in 0.

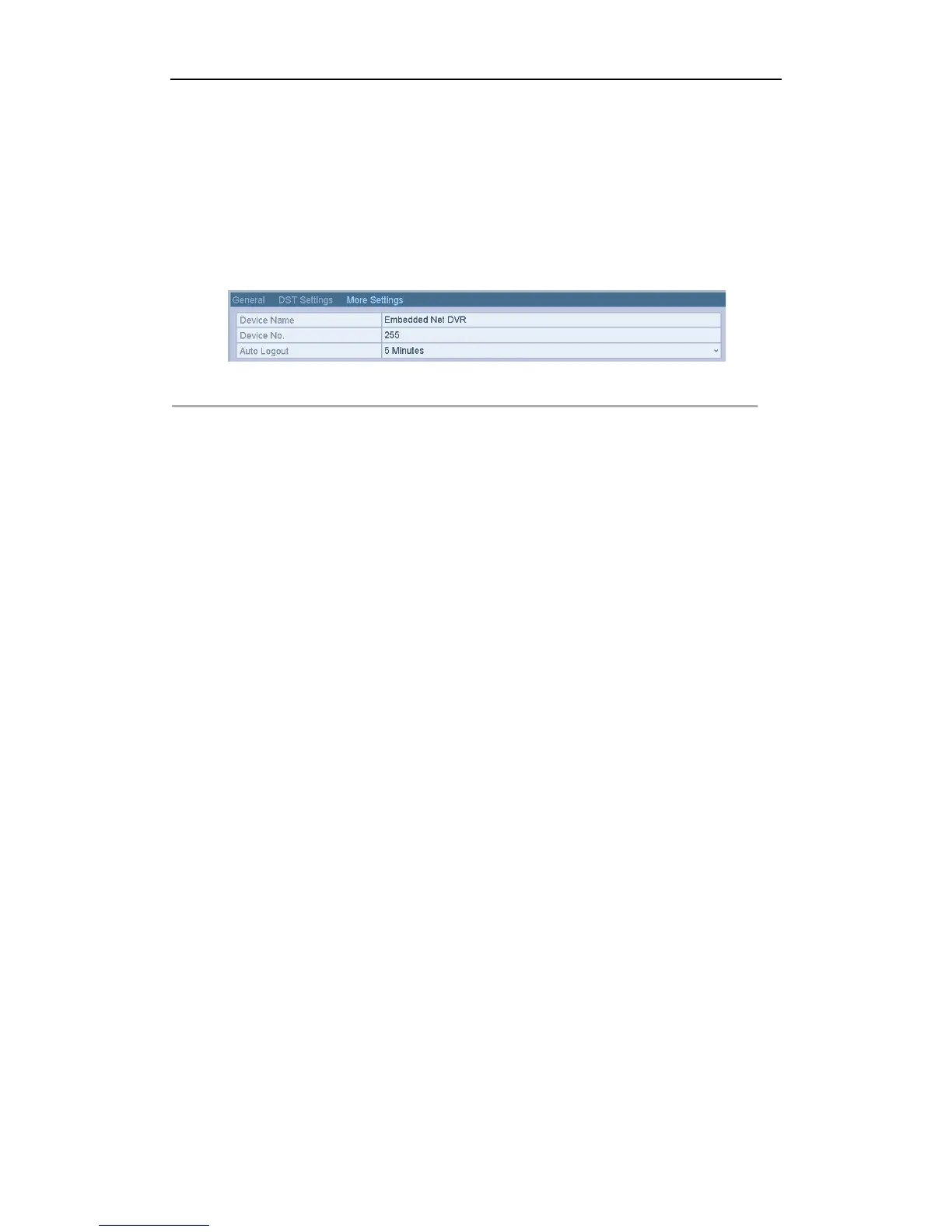

Figure 13. 3 More Settings Interface
3. Configure the following settings:
• Device Name: Edit the name of DVR.
• Device No.: Edit the serial number of DVR. The Device No. can be set in the range of 1~255, and the
default No. is 255.
• CVBS Output Brightness: Adjust the video output brightness via the CVBS interface.
• Auto Logout: Set timeout time for menu inactivity. E.g., when the timeout time is set to 5 Minutes, then
the system will exit from the current operation menu to live view screen after 5 minutes of menu
inactivity.
• Menu Output Mode: You can choose the menu display on different video output. There are auto,
HDMI/VGA and Main CVBS selectable.
4. Click the Apply button to save the settings.
