User Manual of Digital Video Recorder
15
1.2 IR Remote Control Operations
The DVR may also be controlled with the included IR remote control, shown in Figure 1. 7.
Note:
Batteries (2×AAA) must be installed before operation.

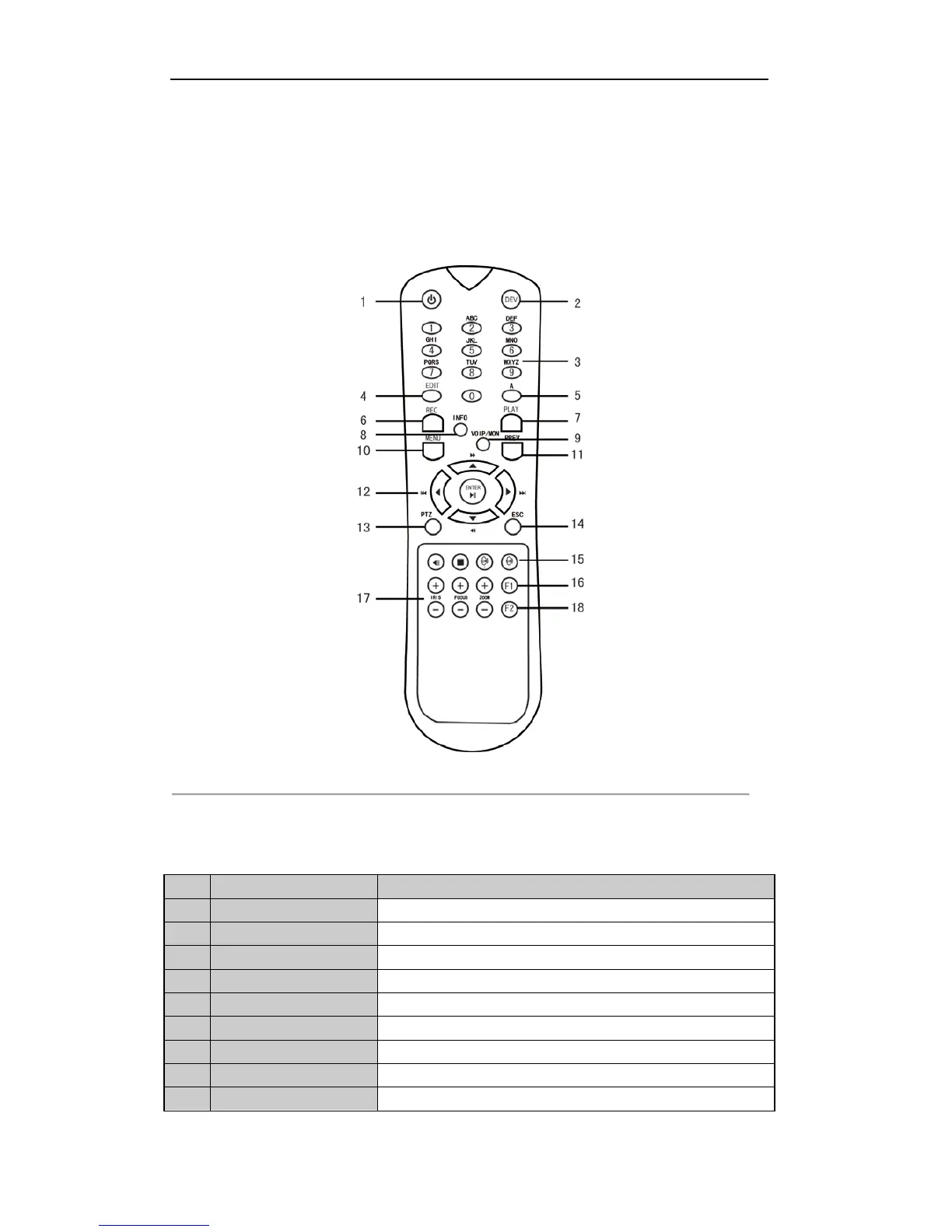

Figure 1. 3 Remote Control
The keys on the remote control closely resemble the ones found on the front panel. Refer to Table 1. 6, they
include:
Table 1. 2 Description of the IR Remote Control Buttons
No. Name Description
1 POWER
Power on/off the device.
2 DEV
Enables/Disables Remote Control.
3 Alphanumeric Buttons
Same as Alphanumeric buttons on front panel.
4 EDIT Button
Same as EDIT/IRIS+ button on front panel.
5 A Button
Same as A/FOCUS+ button on front panel.
6 REC Button
Same as REC/SHOT button on front panel.
7 PLAY Button
Same as the PLAY/AUTO button on front panel.
8 INFO Button
Same as the ZOOM+ button on front panel.
9 VOIP/MON Button
Same as the MAIN/SPOT/ZOOM- button on front panel.
