User Manual of Digital Video Recorder
19

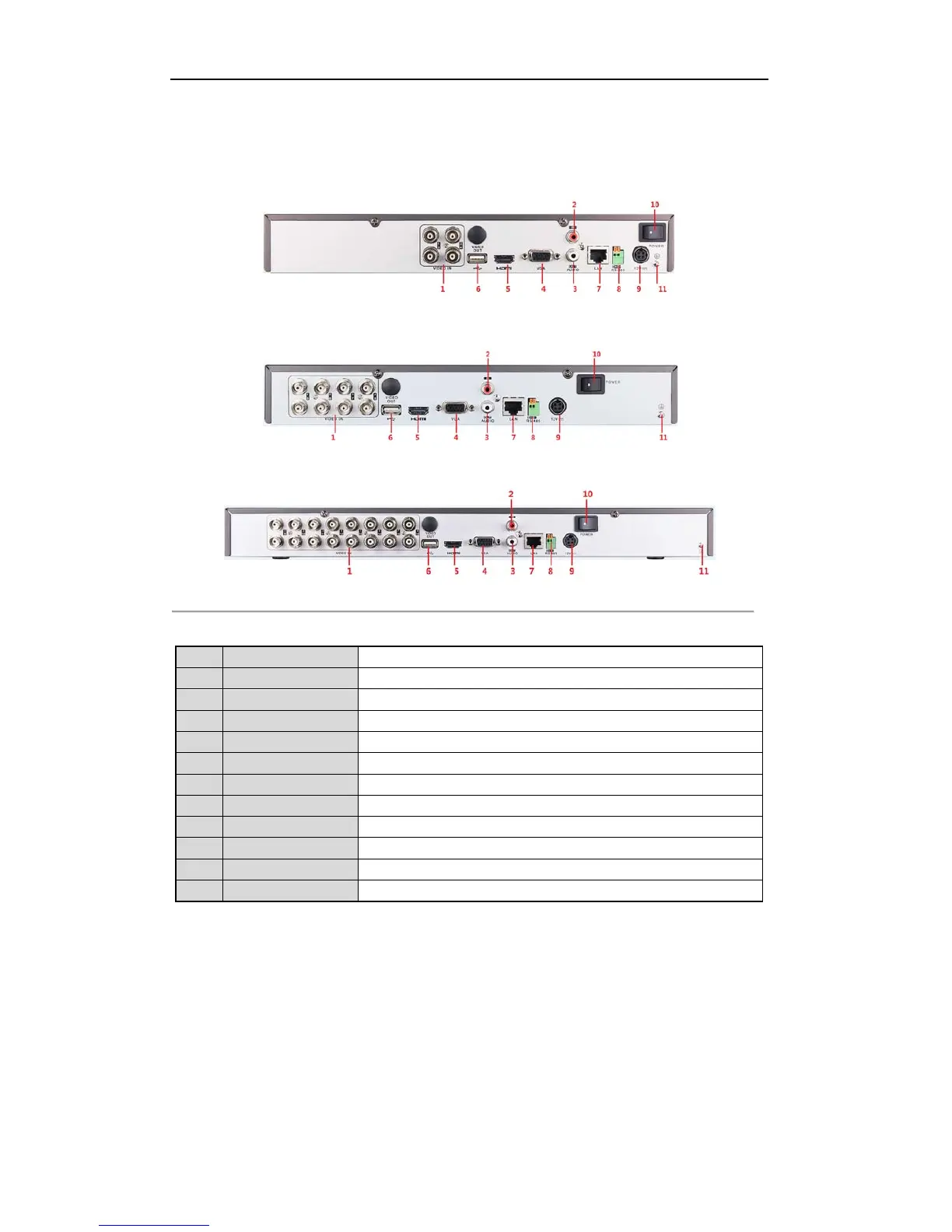

1.5 Rear Panel
Figure 1. 5 LV-T9404CF
Figure 1. 6 LV-T9408CF
Figure 1. 7 LV-T9416CF
Table 1. 5 Description of Front Panel
No. Item Description
1 VIDEO IN BNC interface for TVI and analog video input.
2 AUDIO IN RCA connector
3 AUDIO OUT RCA connector
4 VGA DB15 connector for VGA output. Display local video output and menu.
5 HDMI HDMI video output connector.
6 USB Port Universal Serial Bus (USB) port for additional devices.
7 Network Interface Connector for network
8 RS-485 Interface Connector for RS-485 devices.
9 Power Supply DC 12V power supply.
10 Power Switch Switch for turning on/off the device.
11 GND Ground
