User Manual of Digital Video Recorder
63
4) Set the start and end date.
5) Click Apply to save settings.
6) Click OK to exit the Edit interface.
4. Configure the record schedule.
Please refer to the Chapter 5.2 Configuring Record Schedule, while you may choose Holiday in the
Schedule dropdown list, or you can draw the schedule on the timeline of Holiday. See the two figures
below.

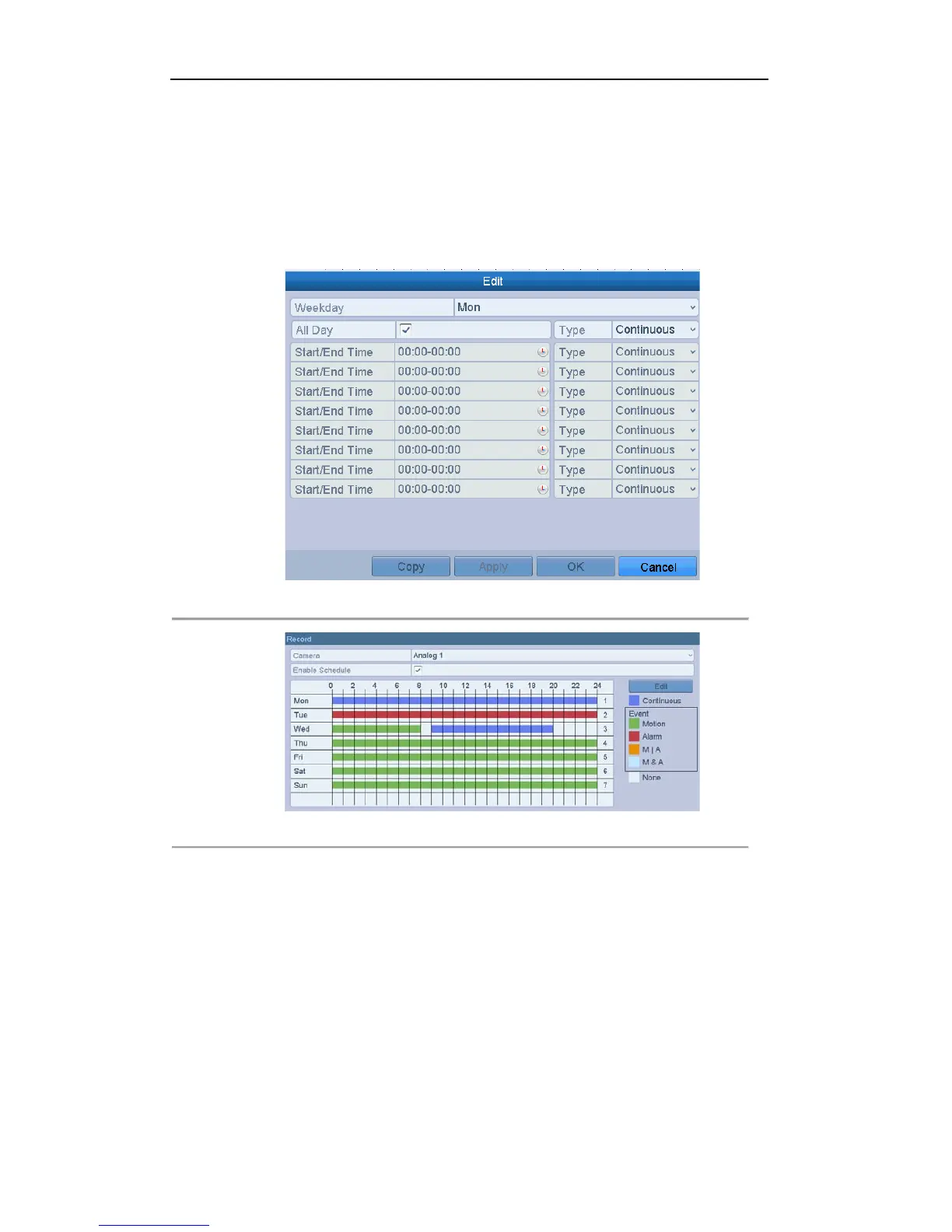

Figure 5. 19 Edit Schedule- Holiday
Figure 5. 20 Draw Schedule- Holiday
Note:Up to 8 periods can be configured for each day. And the time periods cannot be overlapped each other.
In the time table of the channel, both holiday schedule and normal day schedule are displayed.
Repeat the above step 4 to set Holiday schedule for other channel. If the holiday schedule can also be used to
other channels, click Copy and choose the channel you want to apply the settings.
