Installation Manual of Network Camera
24

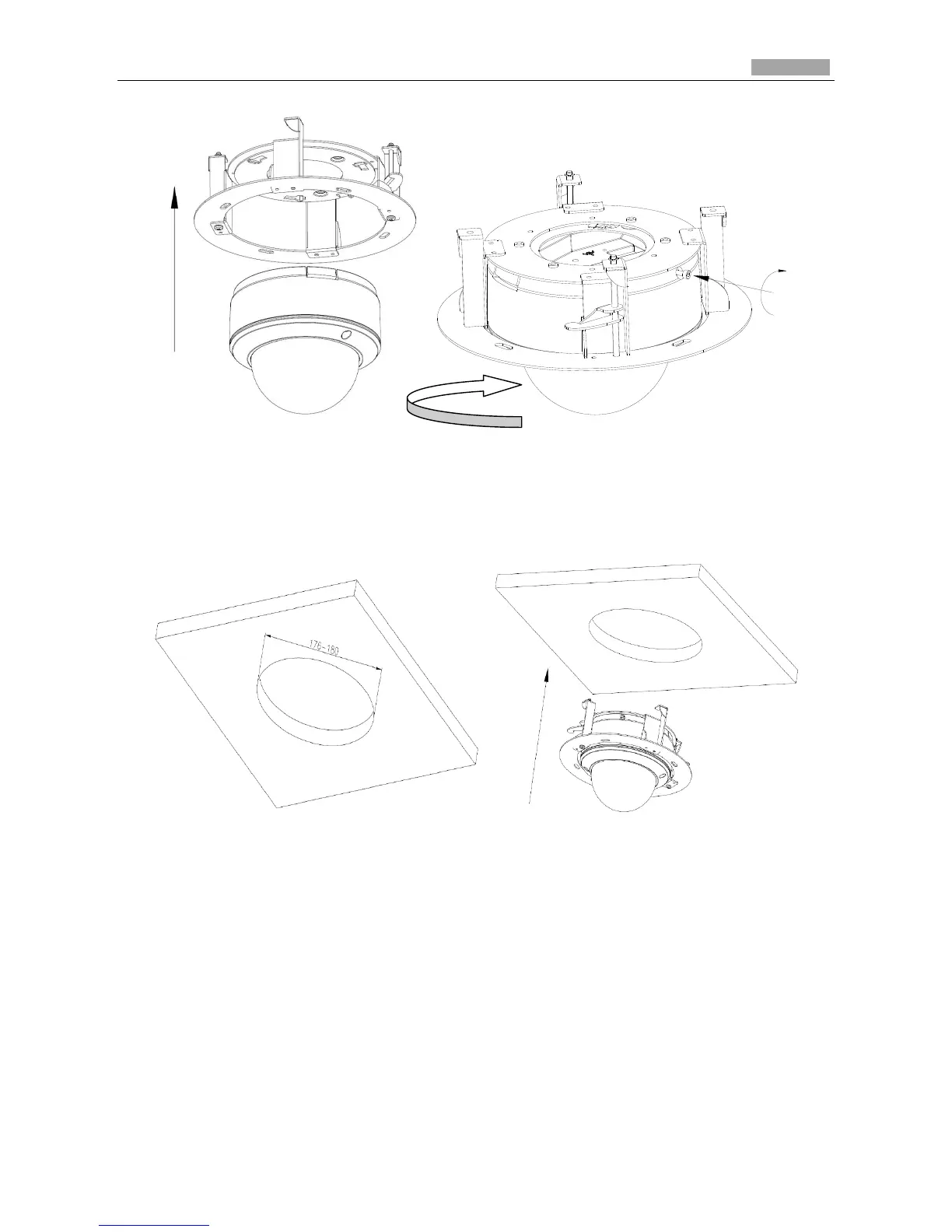

Figure 3-21 Fix the Camera
3. Cut a 176~180 mm diameter hole in the ceiling and push the dome camera with in-ceiling
mounting base to the hole.
Note: The thickness of the ceiling should be less than 30 mm.
Figure 3-22 Mount the Camera
4. It is strongly recommended that you use a safety rope to secure the in-ceiling mounting base to
the roof.
①
②
③
Lock screw
