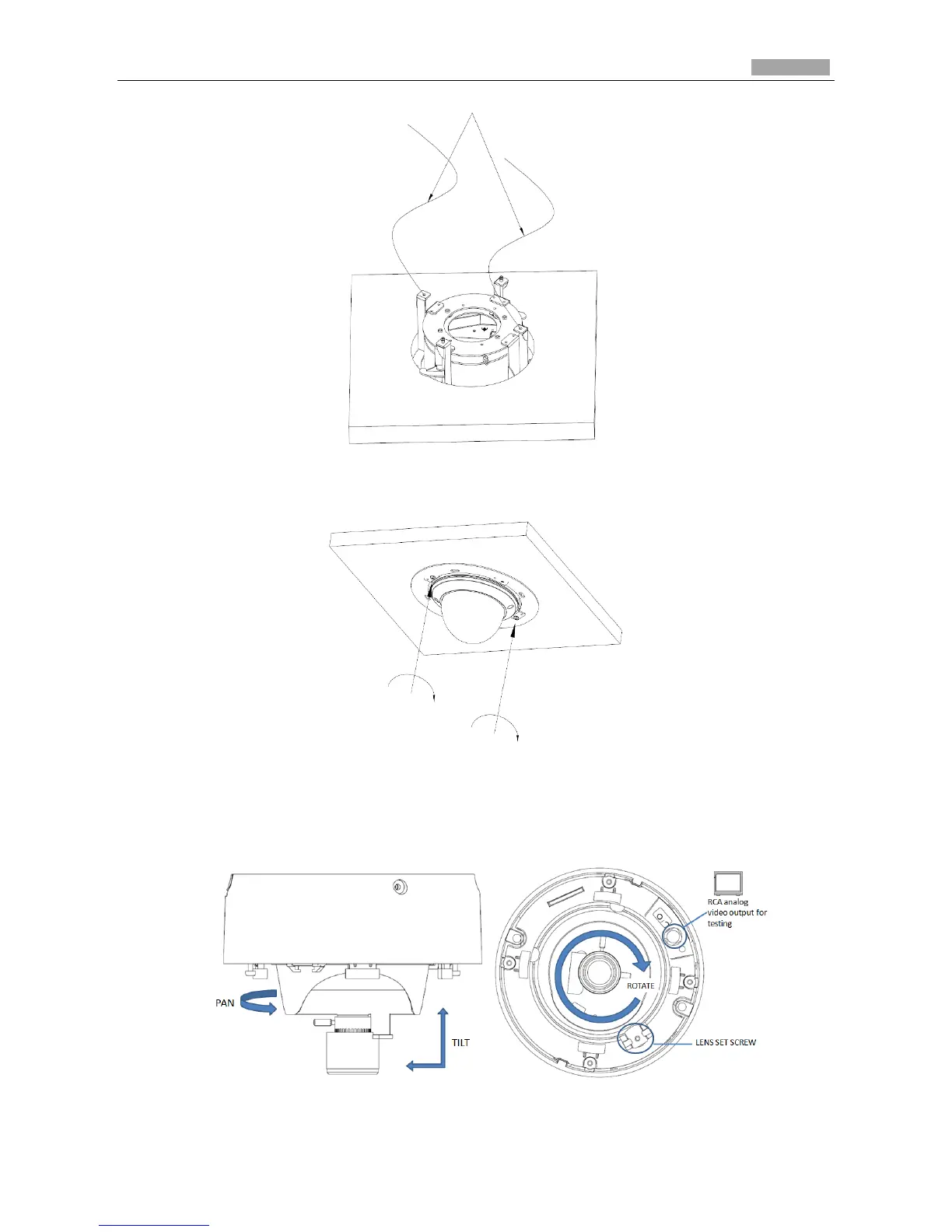

Figure 3-23 Safety rope
5. Fasten the lock screws to secure the dome camera.
Figure 3-24 Secure the Camera
6. Remove the lower dome and connect the RCA analog video output with a monitor to view the
image of the camera. Loosen the lens set screw and pan, tilt or rotate the lens to get a desired
surveillance angle. Adjust the lens focus to obtain a perfect image. Fasten the lens set screw.
Figure 3-25 Adjust the Image
