HIKVISION DS-2CD754FWD-E - Page 41

Installation Manual of Network Camera
34
Figure 3-40 Fasten the Bolts
6. After connecting the network cable and power cable, view the image of the camera over the
network. Loosen the lock screws; adjust the panning position and tilting position and rotate the
lens to get the desired surveillance angle; fasten the lock screws.

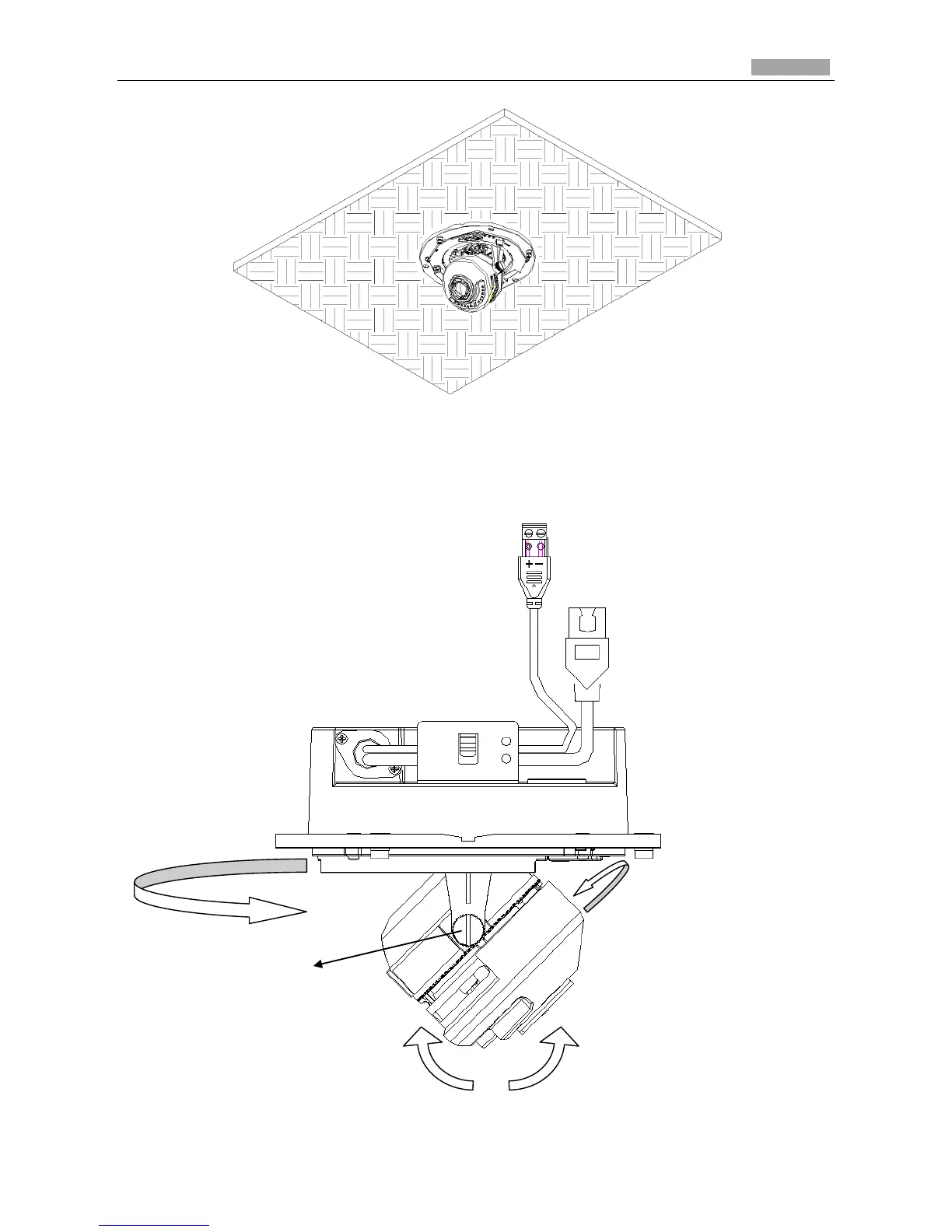

Figure 3-41 Adjust Image
Pan
Lock screw
Tilt
Rotate
