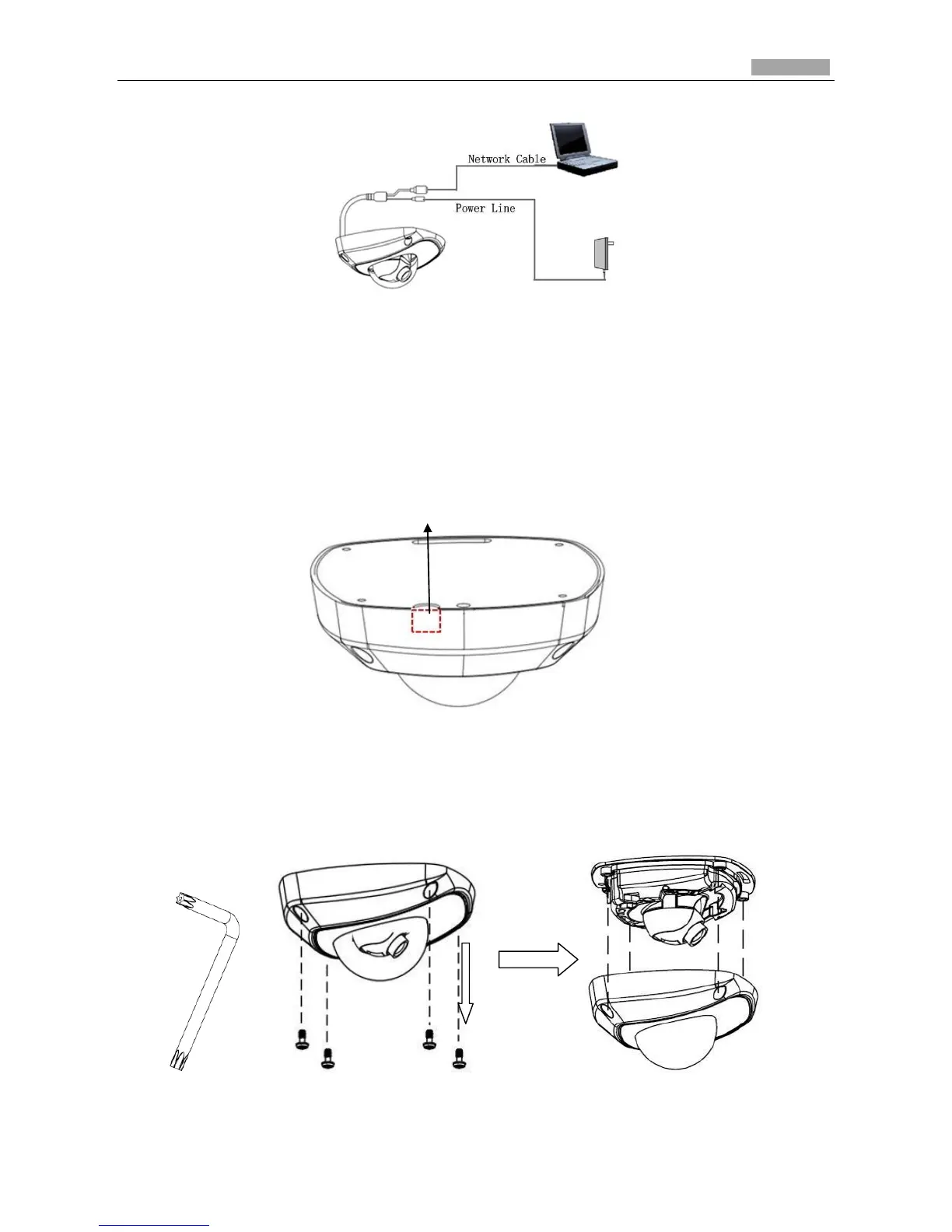

Figure 6-2 Wiring Diagram
6.2 Installation
The ceiling mounting is recommended for this camera.
Note: If required, you can use a plier to remove the clip on the side of the back box and then route
cables through the opening to secure the cables on the ceiling.
Figure 6-3 Remove the Clip
Steps:
1. Loosen the set screws with a hex key (supplied) to remove the cover.
Figure 6-4 Remove the Cover
