HIKVISION DS-3WR12C User Manual

WiFi Router • User Guide
11

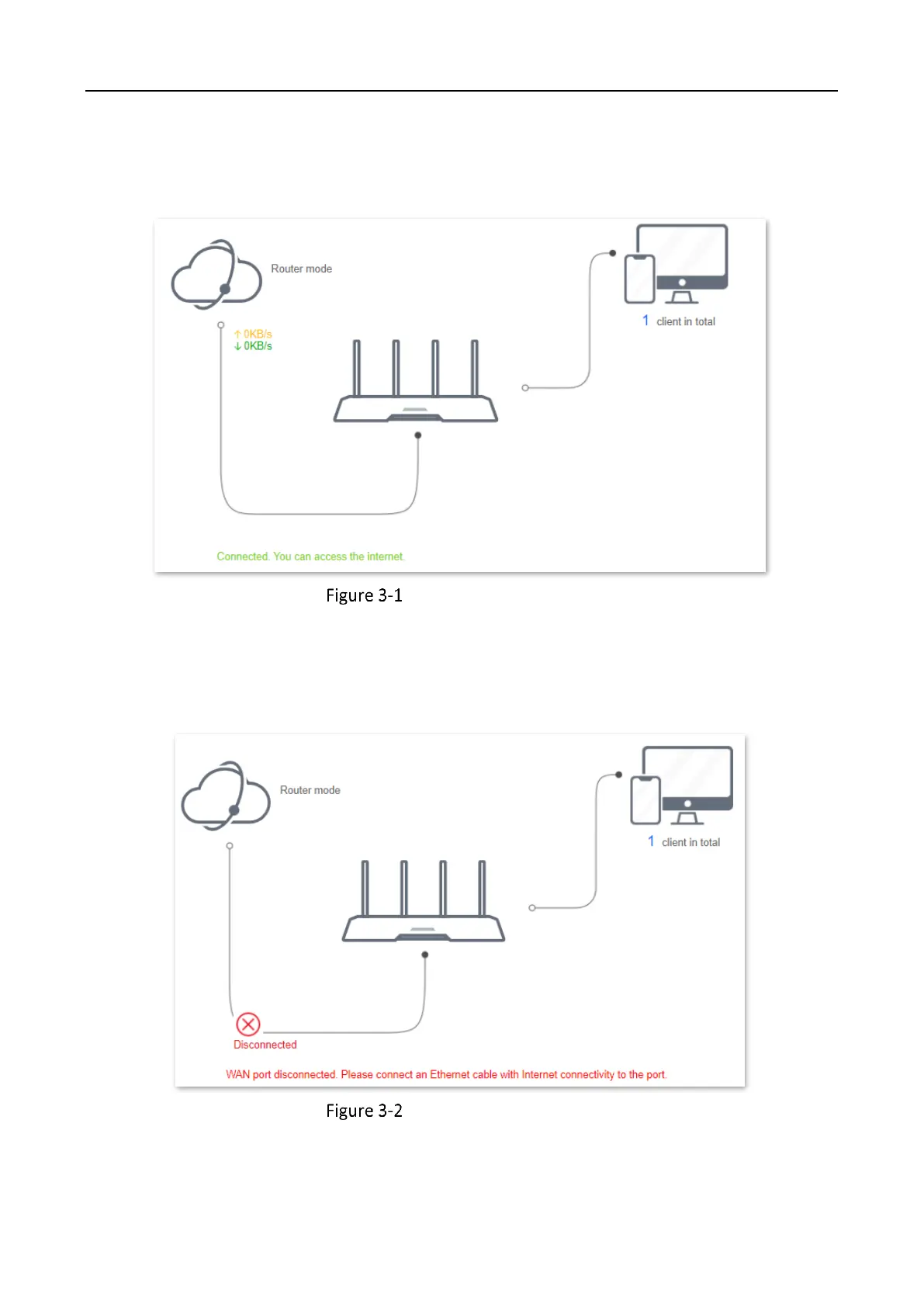

When the internet and the router are connected and Connected. You can access the internet. is
shown as below, the router is connected to the internet successfully and you can access the
internet through the router.
Internet connection status
When a red cross and “Disconnected” are shown between the internet and the router, and WAN
port disconnected. Please connect an Ethernet cable with Internet connectivity to the port. is
shown on the page, it indicates that the Ethernet cable is not connected properly. Please ensure
that the Ethernet cable is connected properly.
Internet connection status

HIKVISION DS-3WR12C Specifications

General

DSL WAN	No
Ethernet WAN	Yes
WAN connection type	RJ-45
Wi-Fi band	Dual-band (2.4 GHz / 5 GHz)
Wi-Fi standards	802.11a, 802.11b, 802.11g, Wi-Fi 4 (802.11n), Wi-Fi 5 (802.11ac)
Channels quantity	48 channels
Top Wi-Fi standard	Wi-Fi 5 (802.11ac)
WLAN data transfer rate (max)	867 Mbit/s
WLAN data transfer rate (first band)	300 Mbit/s
Cabling technology	10/100Base-T(X)
Ethernet LAN data rates	10, 100 Mbit/s
Ethernet LAN interface type	Fast Ethernet
Product type	Tabletop router
Product color	Black
LED indicators	Link
Output current	1 A
Output voltage	9 V
Power source type	DC
Cables included	LAN (RJ-45)
Antenna type	2x2
Antennas quantity	4
Security algorithms	WPA, WPA-PSK, WPA2, WPA2-PSK
Package depth	59 mm
Package width	306 mm
Package height	290 mm
Number of products included	1 pc(s)
Storage temperature (T-T)	5 - 90 °C
Operating temperature (T-T)	0 - 40 °C
Storage relative humidity (H-H)	5 - 90 %
Operating relative humidity (H-H)	10 - 90 %

Weight and Dimensions

Depth	213.34 mm
Width	248.4 mm
Height	154.8 mm
Weight	222 g
