HIKVISION DS-7100 User Manual

User Manual of Digital Video Recorder
106

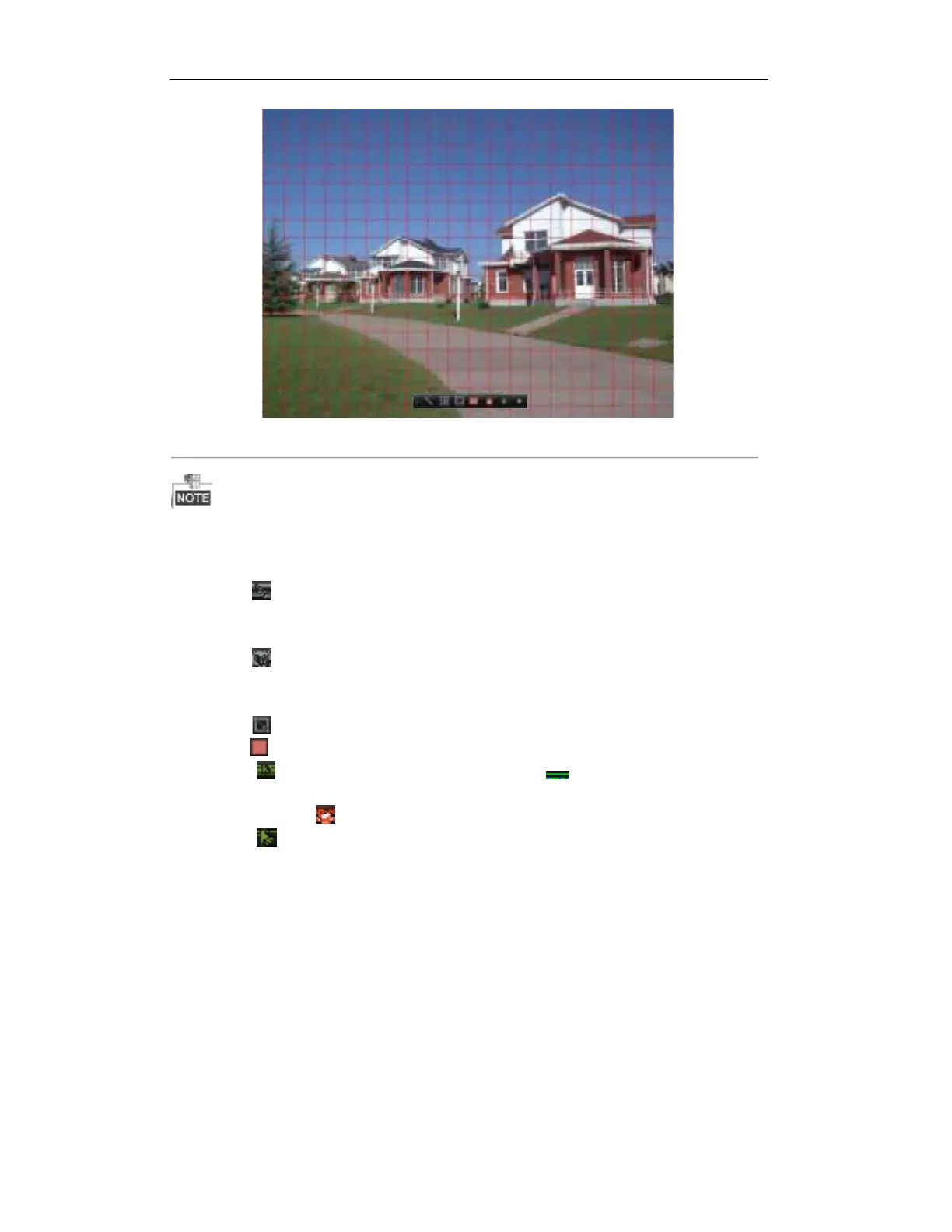

Figure 6. 12 Draw Area for Smart Search
The VCA event is not supported by DS-7100 series.
4. Click and drag the mouse to draw area(s) for smart search of VCA event or motion event.
 Line Crossing Detection
Click the button , and click on the video display screen to specify the start point and end point of the
line.
 Intrusion Detection
Click the button, and specify 4 points to set a quadrilateral region for intrusion detection. Only one
region can be set.
 Motion Detection
Click the button and then click and draw the mouse to set the detection area manually. You can also
click the button to set the full screen as the detection area.
5. Click the to search, and then the result will be displayed as in the progress bar of the Smart
Playback interface.
Or you can click the button to clear all the set areas.
6. Click the button to play

HIKVISION DS-7100 Specifications

General

Video Compression	H.264
Video Input	4/8/16 channels
Audio Compression	G.711
Resolution	720P
Hard Drive	SATA
Network Interface	RJ45 10M / 100M Ethernet interface
USB Interface	2 x USB 2.0
Operating Temperature	-10 °C ~ +55 °C (14 °F ~ 131 °F)
Operating Humidity	10% ~ 90%
Audio Output	1-ch RCA(Linear, 1kΩ)
