HIKVISION DS-7100 User Manual

User Manual of Digital Video Recorder
108

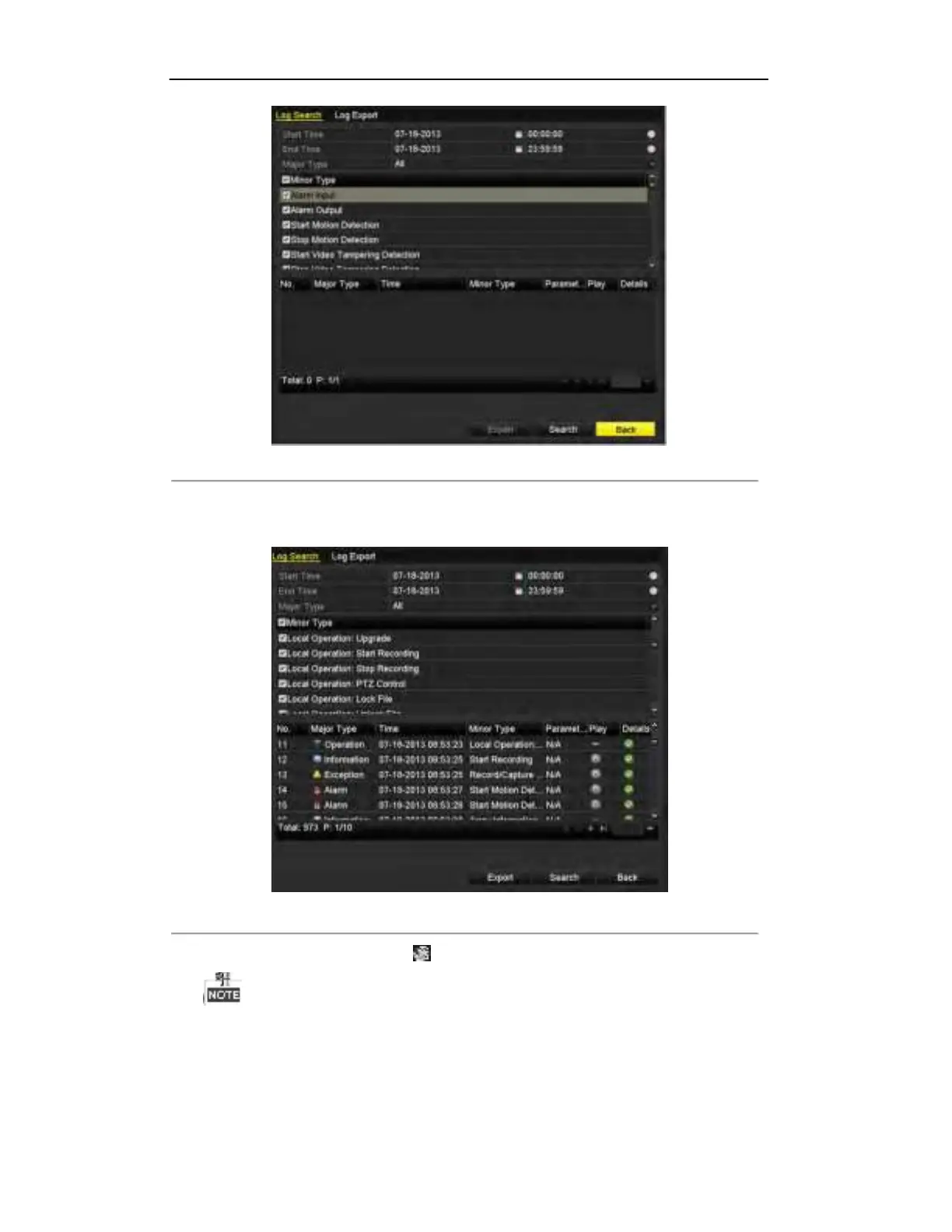

Figure 6. 14 System Log Search Interface
2. Click Log Search tab to enter Playback by System Logs.
Set search time and type and click
Search button.
Figure 6. 15 Result of System Log Search
3. Choose a log with record file and click button to enter Playback interface.
If there is no record file at the time point of the log, the message box “No result found” will pop up.
4. Playback management.
The toolbar in the bottom part of Playback interface can be used to control playing process.

HIKVISION DS-7100 Specifications

General

Video Compression	H.264
Video Input	4/8/16 channels
Audio Compression	G.711
Resolution	720P
Hard Drive	SATA
Network Interface	RJ45 10M / 100M Ethernet interface
USB Interface	2 x USB 2.0
Operating Temperature	-10 °C ~ +55 °C (14 °F ~ 131 °F)
Operating Humidity	10% ~ 90%
Audio Output	1-ch RCA(Linear, 1kΩ)
