HIKVISION DS-7100 User Manual

User Manual of Digital Video Recorder
114
4. Export.
Click
Export button and start backup.
If the inserted USB device is not recognized:
• Click the Refresh button.
• Reconnect device.
• Check for compatibility from vendor.
You can also format the USB device by clicking the
Format button.

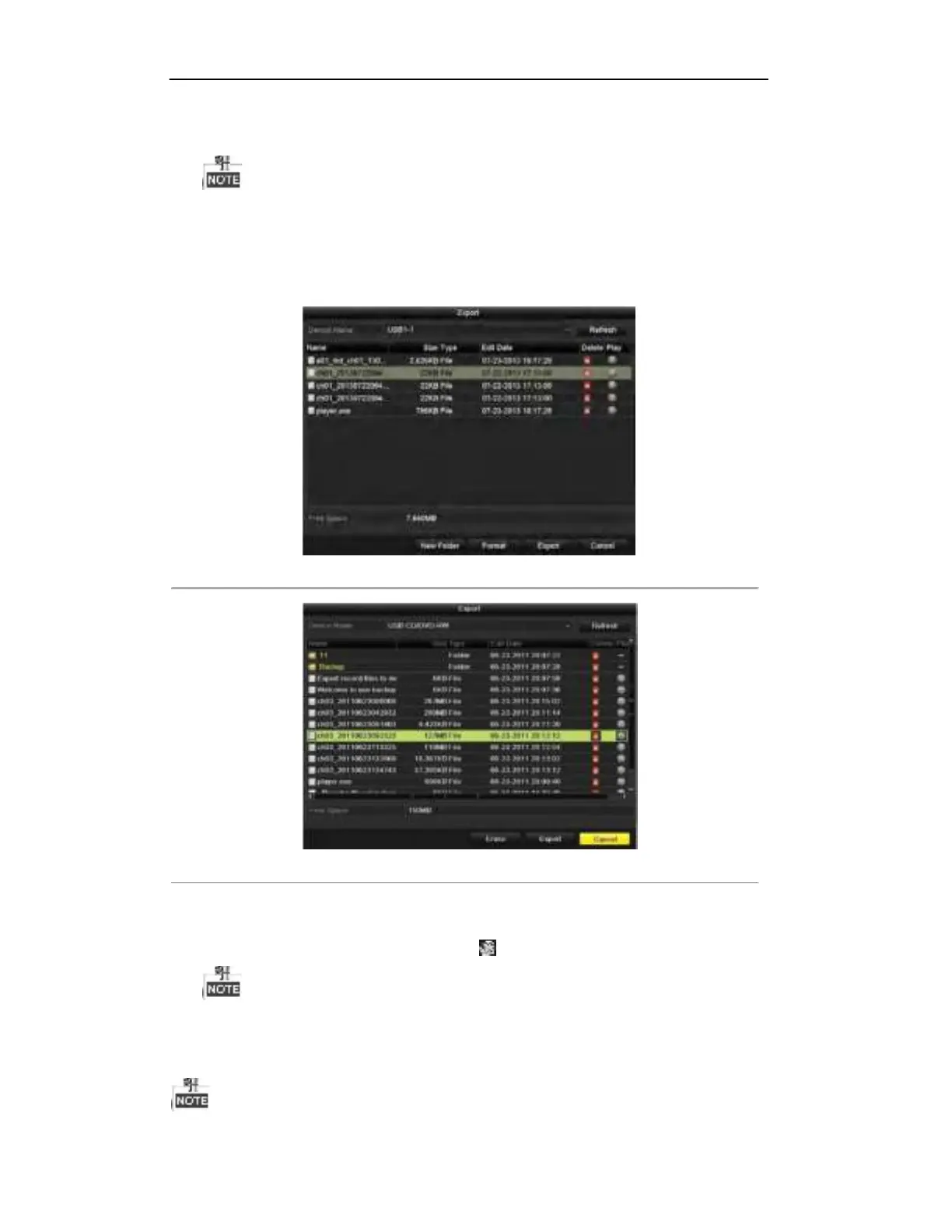

Figure 7. 3 Export by Normal Video Search using USB Flash Drive
Figure 7. 4 Export by Normal Video Search using USB Writer
Stay in the Exporting interface until all record files are exported with pop-up message box “Export finished”.
5. Check backup result.
Choose the record file in Export interface and click button to check it.
The Player player.exe will be exported automatically during record file export.
Backup using eSATA HDDs

HIKVISION DS-7100 Specifications

General

Video Compression	H.264
Video Input	4/8/16 channels
Audio Compression	G.711
Resolution	720P
Hard Drive	SATA
Network Interface	RJ45 10M / 100M Ethernet interface
USB Interface	2 x USB 2.0
Operating Temperature	-10 °C ~ +55 °C (14 °F ~ 131 °F)
Operating Humidity	10% ~ 90%
Audio Output	1-ch RCA(Linear, 1kΩ)
