HIKVISION DS-7100 User Manual

185
User Manual of Digital Video Recorder
2. Set the log search conditions to refine your search, including the Start Time, End Time, Major Type and
Minor Type.
3. Click the Search button to start search log files.
4. The matched log files will be displayed on the list shown below.
Up to 2000 log files can be displayed each time.

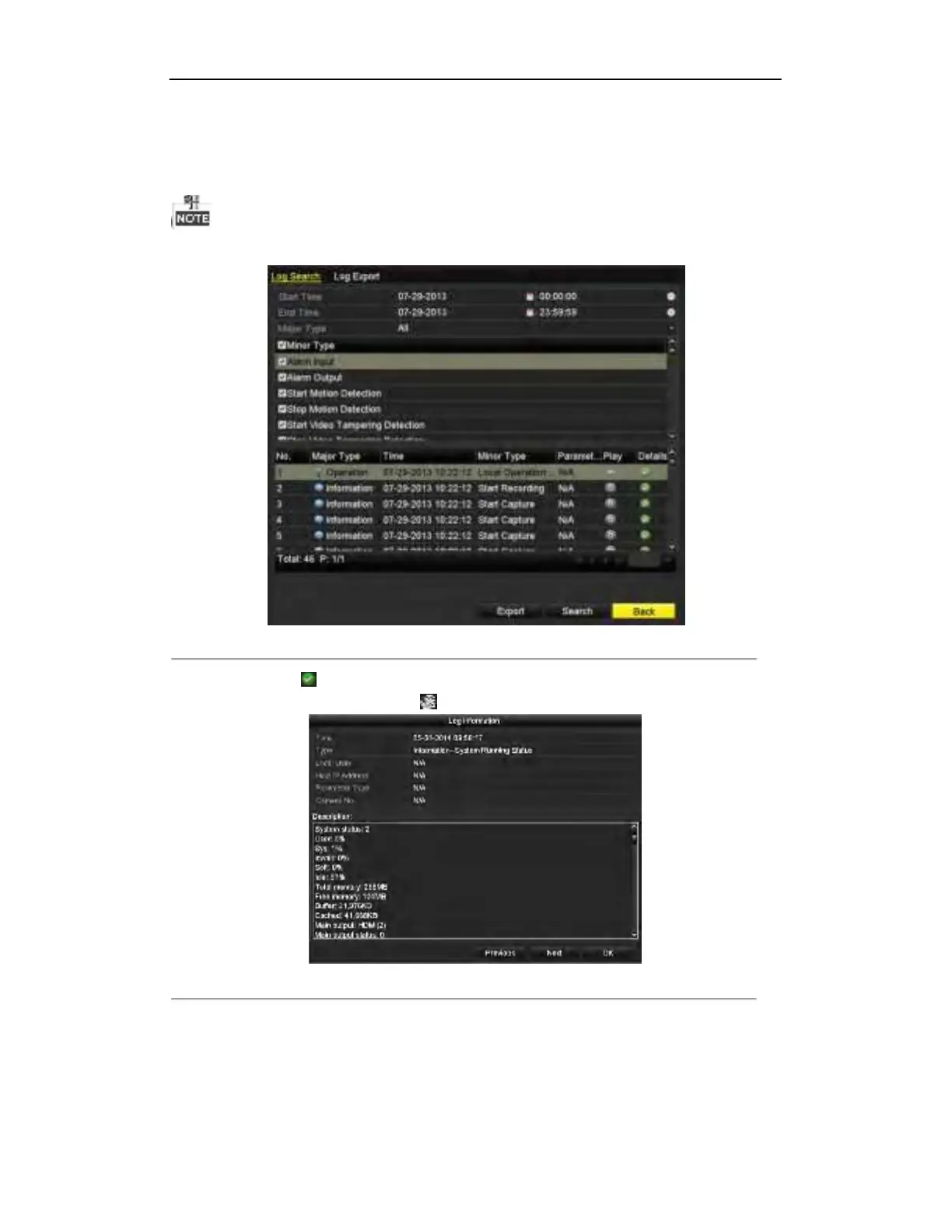

Figure 12. 3 Log Search Results
5. You can click the button of each log or double-click it to view its detailed information, as shown in
Figure 12. 4. And you can also click the button to view the related video files if available.
Figure 12. 4 Log Details
6. If you want to export the log files, click the Export button to enter the Export menu, as shown in Figure 12.
5.

HIKVISION DS-7100 Specifications

General

Video Compression	H.264
Video Input	4/8/16 channels
Audio Compression	G.711
Resolution	720P
Hard Drive	SATA
Network Interface	RJ45 10M / 100M Ethernet interface
USB Interface	2 x USB 2.0
Operating Temperature	-10 °C ~ +55 °C (14 °F ~ 131 °F)
Operating Humidity	10% ~ 90%
Audio Output	1-ch RCA(Linear, 1kΩ)
