User Manual of Digital Video Recorder
78

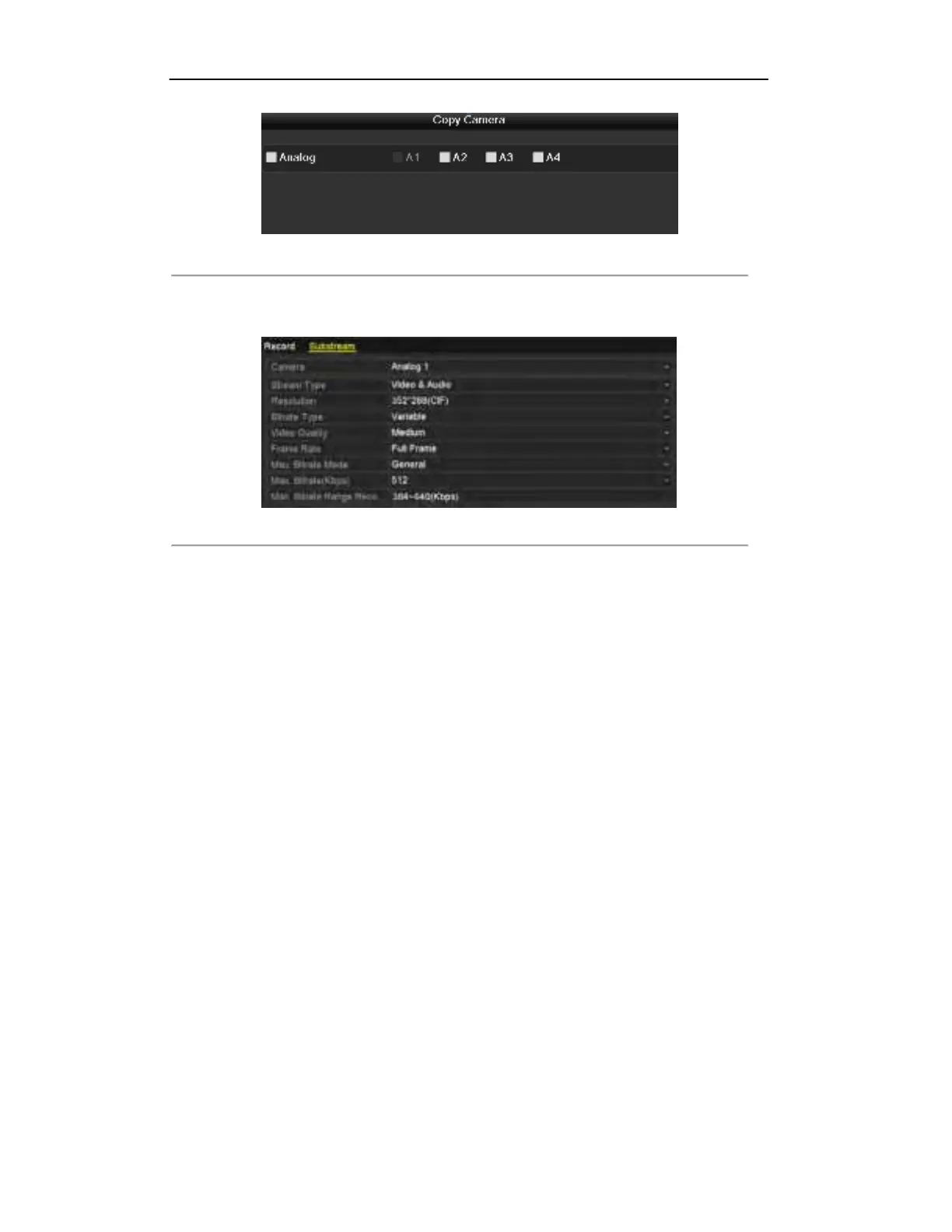

Figure 5. 4 Copy Camera Settings
3. Set encoding parameters for sub-stream.
1) Select the Substream tab.
Figure 5. 5 Sub-stream Encoding
2) Select a camera in the camera dropdown list.
3) Configure the parameters.
4) Click Apply to save the settings.
5) (Optional) If the parameters can also be used to other cameras, click Copy to copy the settings to other
channels.

HIKVISION DS-7100 Specifications

General

Video Compression	H.264
Video Input	4/8/16 channels
Audio Compression	G.711
Resolution	720P
Hard Drive	SATA
Network Interface	RJ45 10M / 100M Ethernet interface
USB Interface	2 x USB 2.0
Operating Temperature	-10 °C ~ +55 °C (14 °F ~ 131 °F)
Operating Humidity	10% ~ 90%
Audio Output	1-ch RCA(Linear, 1kΩ)
