HIKVISION DS-7100 User Manual

User Manual of Digital Video Recorder
92

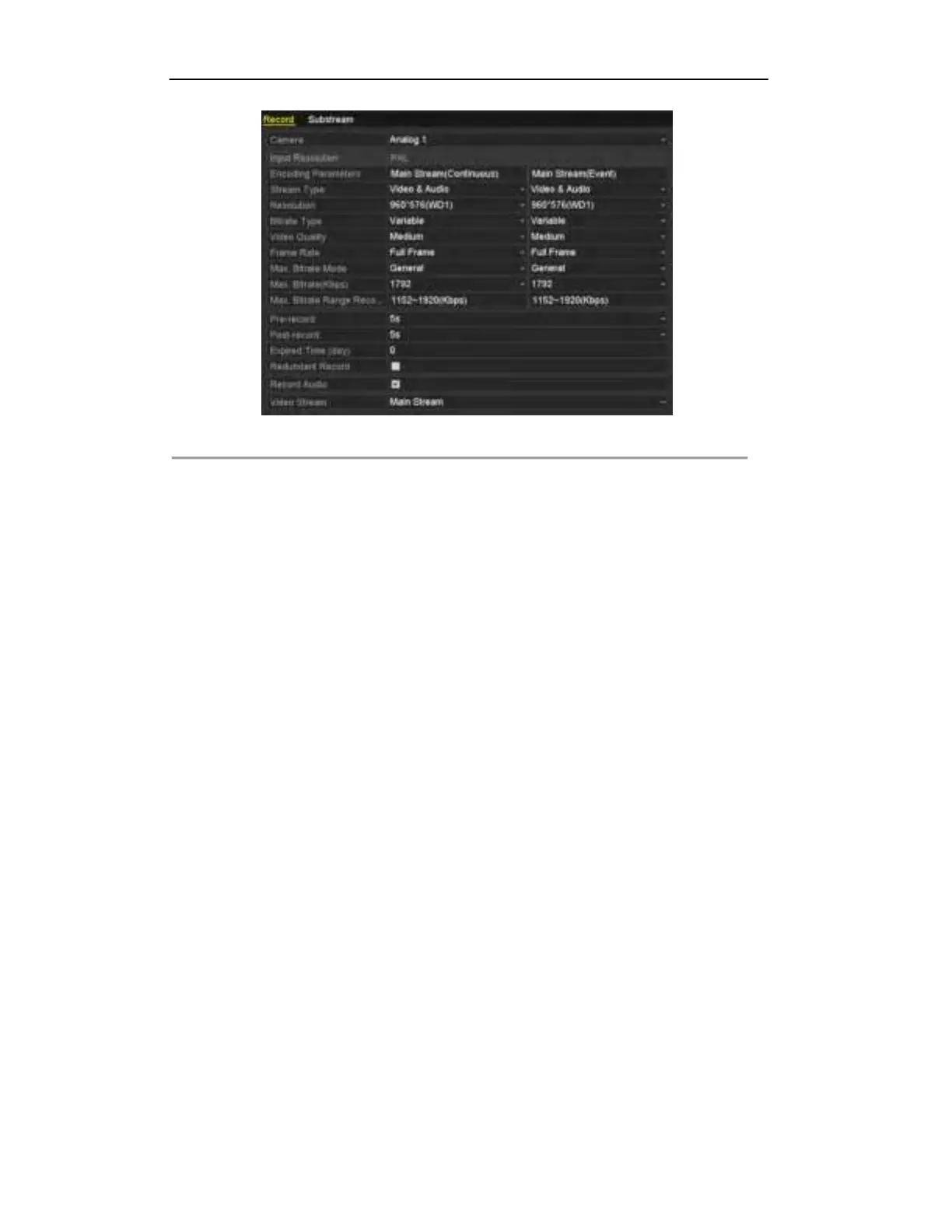

Figure 5. 27 Encoding Parameters
2) Select Camera you want to configure.
3) Check the checkbox of Redundant Record .
4) Click Apply to save settings.
If the encoding parameters can also be used to other channels, click
Copy and choose the channel you want to
apply the settings.

HIKVISION DS-7100 Specifications

General

Video Compression	H.264
Video Input	4/8/16 channels
Audio Compression	G.711
Resolution	720P
Hard Drive	SATA
Network Interface	RJ45 10M / 100M Ethernet interface
USB Interface	2 x USB 2.0
Operating Temperature	-10 °C ~ +55 °C (14 °F ~ 131 °F)
Operating Humidity	10% ~ 90%
Audio Output	1-ch RCA(Linear, 1kΩ)
