User Manual of Digital Video Recorder
105
9.1 Configuring General Settings
Purpose:
Network settings must be properly configured before you operate device over network.
Steps:
1. Enter the Network Settings interface.
Menu > Configuration > Network> General

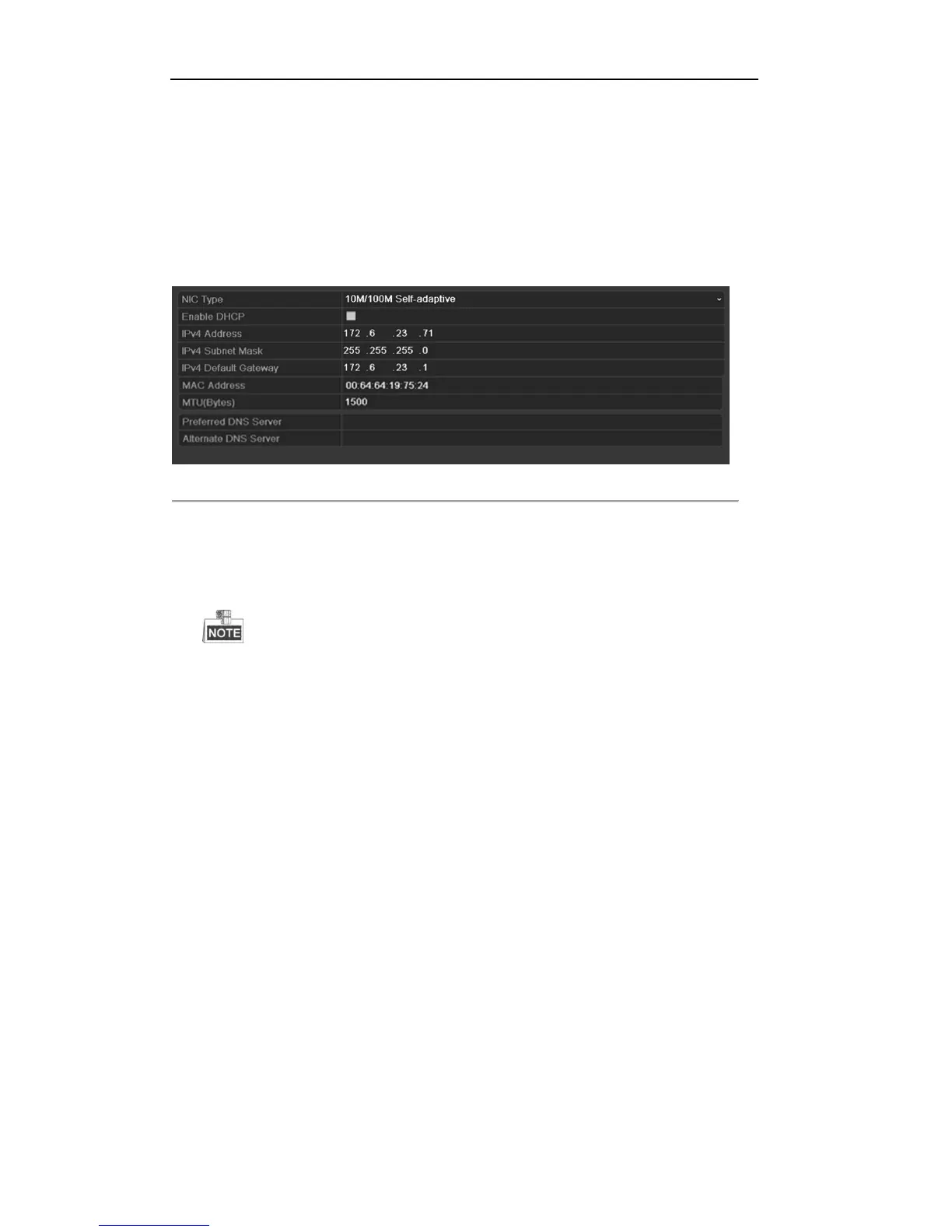

Figure 9. 1 General Network Settings Interface
2. You can configure the following settings: NIC Type, IPv4 Address, IPv4 Gateway, MTU and DNS
Server.
If the DHCP server is available, you can click the checkbox of DHCP to automatically obtain an IP
address and other network settings from that server.
The valid value range of MTU is 1280 ~ 1500.
3. After having configured the general settings, click the Apply button to save the settings.
