User Manual of Digital Video Recorder
16
1.4 Rear Panel
DS-7100-SL and DS-7100-SH

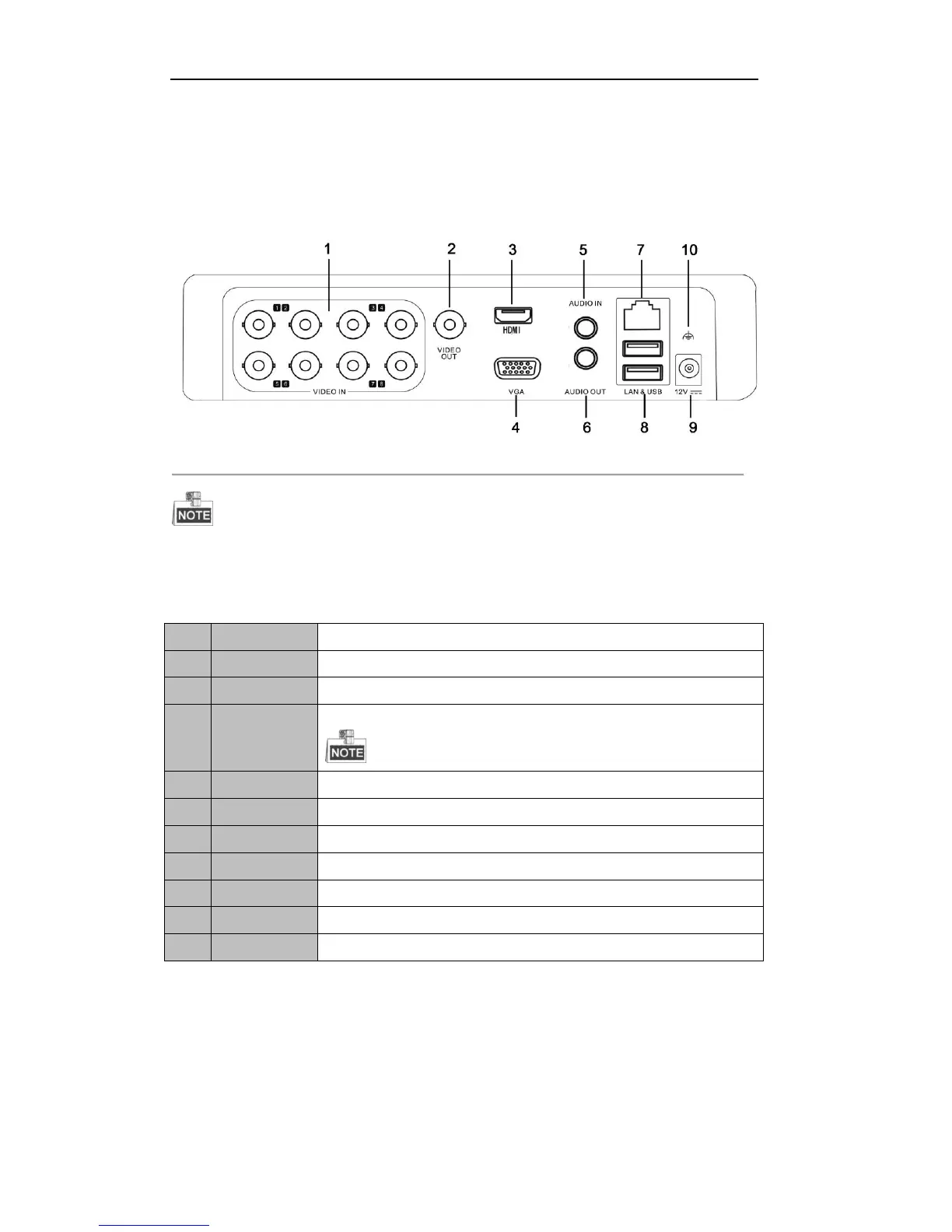

The rear panel of DS-7108HWI/HVI-SH is shown below:
Figure 1. 4 Rear Panel of DS-7108HWI/HVI-SH
 The DS-7100HWI/HVI-SL series DVR provides no HDMI interface.
 The DS-7104-SH/SL provides 4 video input interfaces and the DS-7116-SH/SL provides 16 video
input interfaces on the rear panel.
Table 3.5 Description of Rear Panel
No.
Item
Description
1
VIDEO IN
BNC connector for analog video input.
2
VIDEO OUT
BNC connector for video output.
3
HDMI
HDMI video output.
The DS-7100 HWI/HVI -SL series DVR provides no HDMI interface.
4
VGA
DB15 connector for VGA output. Display local video output and menu.
5
AUDIO IN
RCA connector for audio input.
6
AUDIO OUT
RCA connector for audio output.
7
LAN Interface
RJ45 10M / 100M Ethernet interface.
8
USB Interface
Connects USB mouse or USB flash memory devices.
9
12V
12VDC power supply.
10
GND
Ground (needs to be connected when DVR starts up)

HIKVISION DS-7104HWI-SL Specifications

General

Product color	White
Rack capacity	1U
Maximum frame rate	30 fps
Maximum video resolution	1920 x 1080 pixels
Video compression formats	H.264
Analog signal format system	NTSC, PAL
Playback resolutions supported	1920x1080, 1280x1024, 1280x720, 1024x768, 704x576, 704x480
BNC input ports	8
Video input channels	4 channels
USB 2.0 ports quantity	2
VGA (D-Sub) output ports	1
Ethernet LAN	Yes
Ethernet interface type	Gigabit Ethernet
HDD interface	Serial ATA
Maximum HDD capacity	4000 GB
DC voltage	12 V
Power consumption (typical)	6 W
Operating temperature (T-T)	-10 - 55 °C
Operating relative humidity (H-H)	10 - 90 %

Weight and Dimensions

Width	200 mm
Height	45 mm
Weight	800 g
