HIKVISION DS-7104HWI-SL User Manual

User Manual of Digital Video Recorder
43
Figure 4. 8 KeyPoints Deletion
4.2.4 Calling Patrols
Purpose:
The PTZ camera will move according to the predefined patrol path when you call a patrol.
Call a patrol in the PTZ setting interface:
Steps:
1. In the PTZ setting interface.
Menu> Camera> PTZ> More Settings
2. Select the patrol number, and then click to call the patrol.
3. Click to stop it.

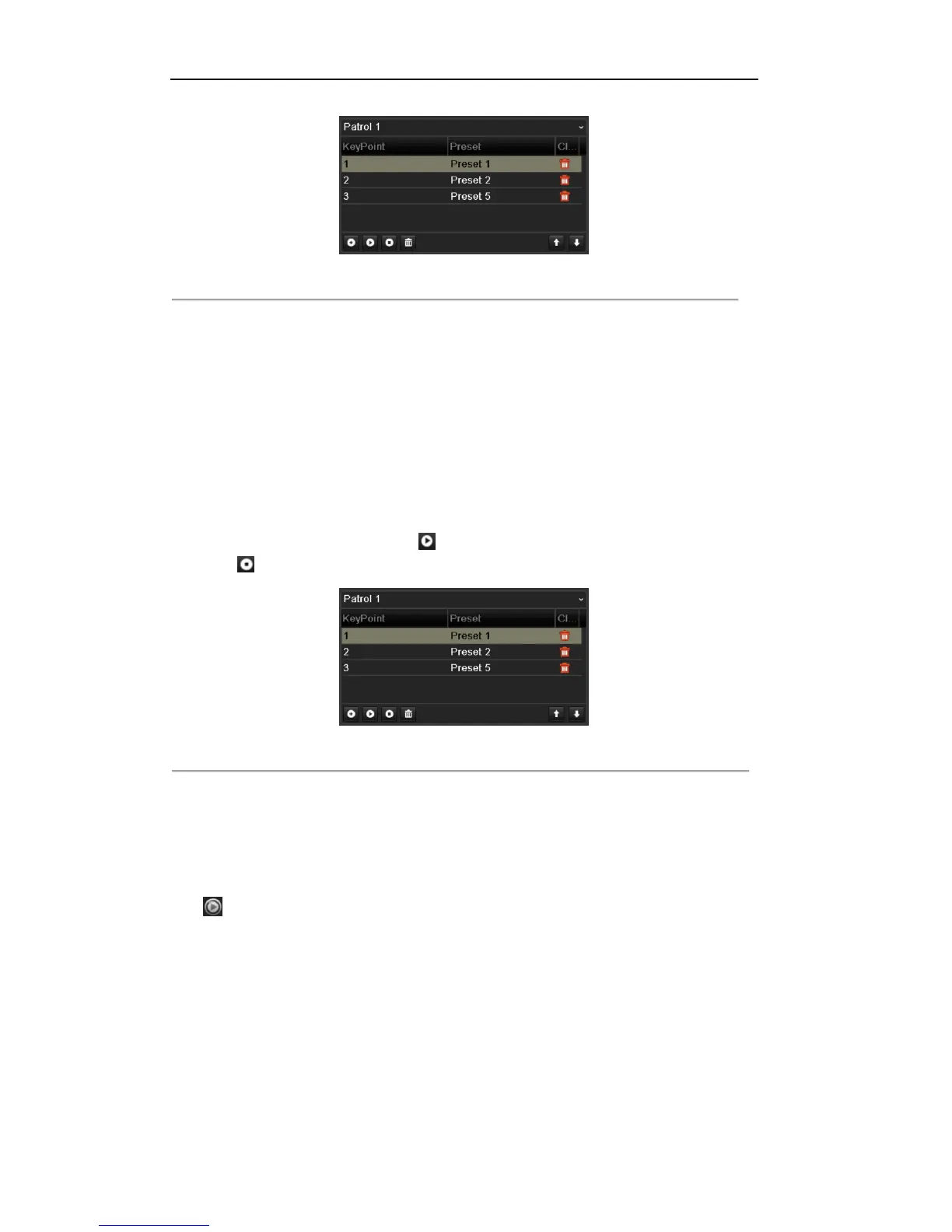

Figure 4. 9 Calling Patrol
Call a patrol in live view mode:
Steps:
1. Open the PTZ control panel in live view mode.
2. Click the Camera tab on the panel, and select the channel for control on the camera list.
3. Click the Patrol tab on the panel, and then double-click the patrol, or click to select the patrol and click
to call the patrol.

HIKVISION DS-7104HWI-SL Specifications

General

Product color	White
Rack capacity	1U
Maximum frame rate	30 fps
Maximum video resolution	1920 x 1080 pixels
Video compression formats	H.264
Analog signal format system	NTSC, PAL
Playback resolutions supported	1920x1080, 1280x1024, 1280x720, 1024x768, 704x576, 704x480
BNC input ports	8
Video input channels	4 channels
USB 2.0 ports quantity	2
VGA (D-Sub) output ports	1
Ethernet LAN	Yes
Ethernet interface type	Gigabit Ethernet
HDD interface	Serial ATA
Maximum HDD capacity	4000 GB
DC voltage	12 V
Power consumption (typical)	6 W
Operating temperature (T-T)	-10 - 55 °C
Operating relative humidity (H-H)	10 - 90 %

Weight and Dimensions

Width	200 mm
Height	45 mm
Weight	800 g
