HIKVISION DS-7104HWI-SL User Manual

User Manual of Digital Video Recorder
12
1.1 Front Panel
DS-7100-SL and DS-7100-SH

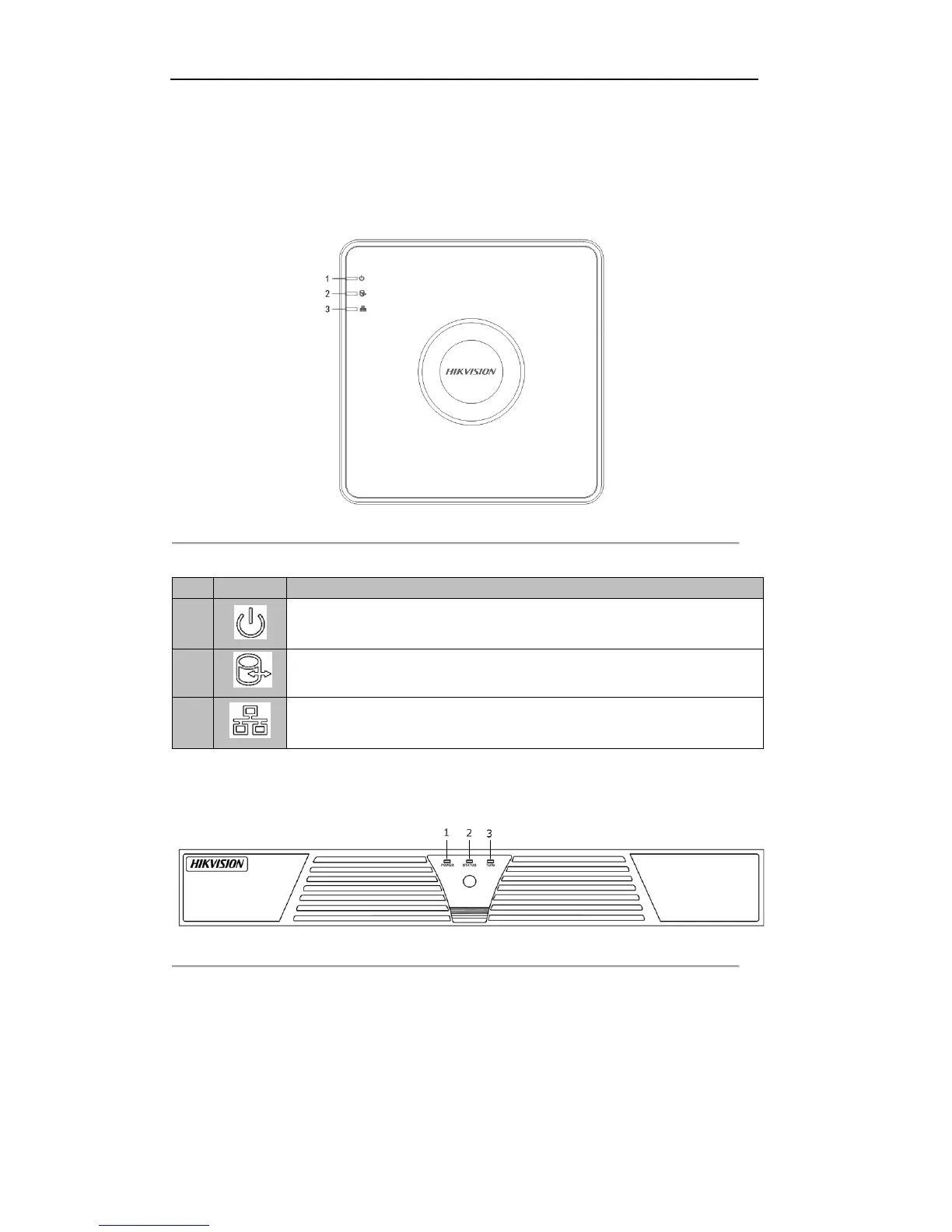

The front panel of DS-7100HWI/HVI-SL and DS-7100HWI/HVI-SH series DVR is shown in Figure 1.1:
Figure 1. 1 Front Panel of DS-7100HWI/HVI-SL and DS-7100HWI/HVI-SH
Table 3.1 Description of Indicators
No.
Icon
Description
1
Indicator turns red when DVR is powered up.
2
Indicator lights in red when data is being read from or written to HDD.
3
Indicator blinks blue when network connection is functioning properly.
DS-7200HI
The front panel of DS-7200HI series DVR is shown in Figure 1.2:
Figure 1. 2 Front Panel of DS-7200HI

HIKVISION DS-7104HWI-SL Specifications

General

Product color	White
Rack capacity	1U
Maximum frame rate	30 fps
Maximum video resolution	1920 x 1080 pixels
Video compression formats	H.264
Analog signal format system	NTSC, PAL
Playback resolutions supported	1920x1080, 1280x1024, 1280x720, 1024x768, 704x576, 704x480
BNC input ports	8
Video input channels	4 channels
USB 2.0 ports quantity	2
VGA (D-Sub) output ports	1
Ethernet LAN	Yes
Ethernet interface type	Gigabit Ethernet
HDD interface	Serial ATA
Maximum HDD capacity	4000 GB
DC voltage	12 V
Power consumption (typical)	6 W
Operating temperature (T-T)	-10 - 55 °C
Operating relative humidity (H-H)	10 - 90 %

Weight and Dimensions

Width	200 mm
Height	45 mm
Weight	800 g
