HIKVISION DS-7104HWI-SL User Manual

User Manual of Digital Video Recorder
40
4.2.1 Customizing Presets
Purpose:
Follow the steps to set the Preset location which you want the PTZ camera to point to when an event takes
place.
Steps:
1. Enter the PTZ Control interface.
Menu>Camera>PTZ>More Settings

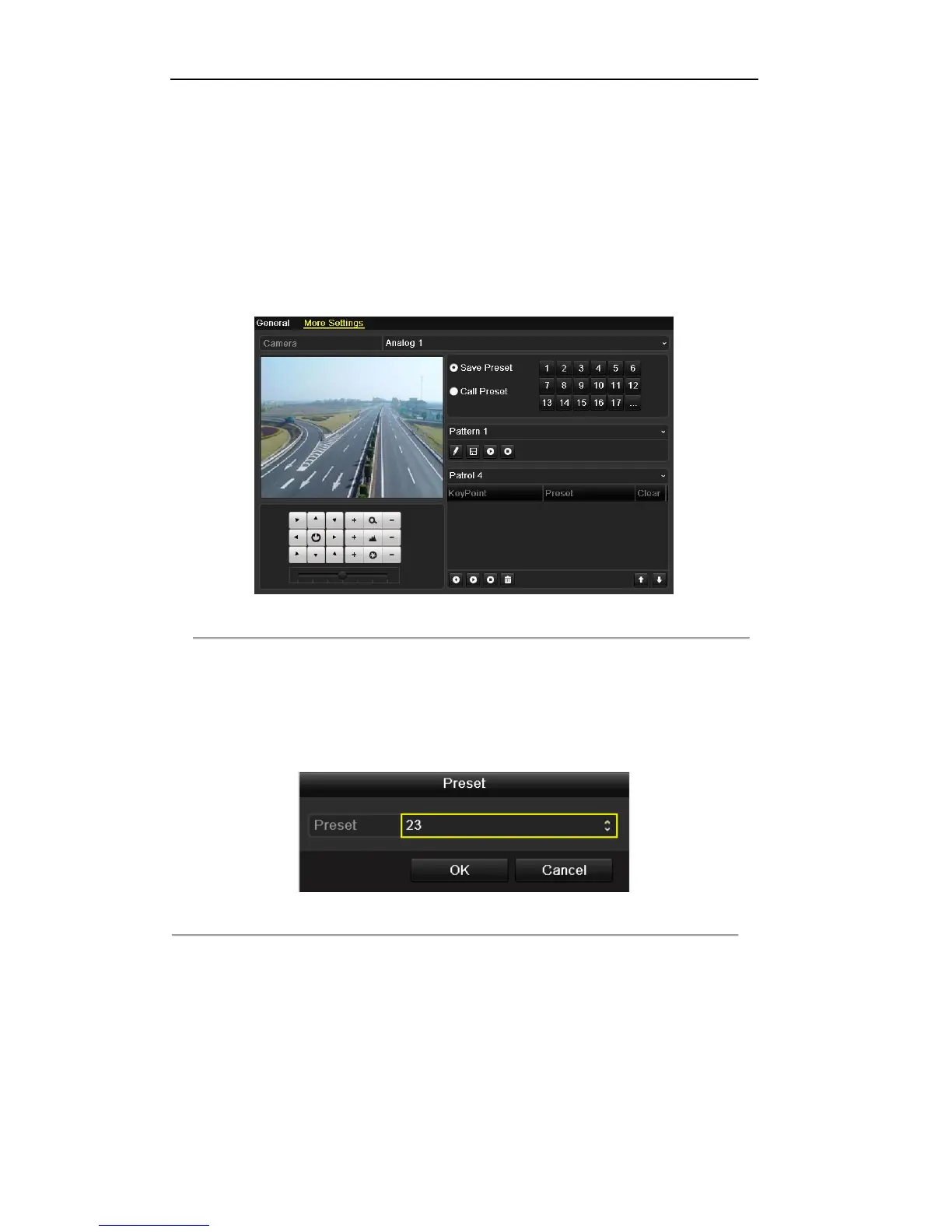

Figure 4. 2 PTZ- More Settings
Use the directional button to wheel the camera to the location where you want to set preset.
Check the checkbox of Save Preset.
Click the preset number to save the preset.
Repeat the steps2-4 to save more presets. If the number of the presets you want to save is more than 17, you
can click […] and choose the available numbers.
Figure 4. 3 More Presets
4.2.2 Calling Presets
Purpose:
The view angle of the PTZ camera will be moved to the predefined position when you call a preset.
Call a preset on the PTZ setting interface:

HIKVISION DS-7104HWI-SL Specifications

General

Product color	White
Rack capacity	1U
Maximum frame rate	30 fps
Maximum video resolution	1920 x 1080 pixels
Video compression formats	H.264
Analog signal format system	NTSC, PAL
Playback resolutions supported	1920x1080, 1280x1024, 1280x720, 1024x768, 704x576, 704x480
BNC input ports	8
Video input channels	4 channels
USB 2.0 ports quantity	2
VGA (D-Sub) output ports	1
Ethernet LAN	Yes
Ethernet interface type	Gigabit Ethernet
HDD interface	Serial ATA
Maximum HDD capacity	4000 GB
DC voltage	12 V
Power consumption (typical)	6 W
Operating temperature (T-T)	-10 - 55 °C
Operating relative humidity (H-H)	10 - 90 %

Weight and Dimensions

Width	200 mm
Height	45 mm
Weight	800 g
