HIKVISION DS-7104HWI-SL User Manual

User Manual of Digital Video Recorder
144
12.5 Restoring Default Settings
Steps:
1. Enter the Default interface.
Menu > Maintenance > Default

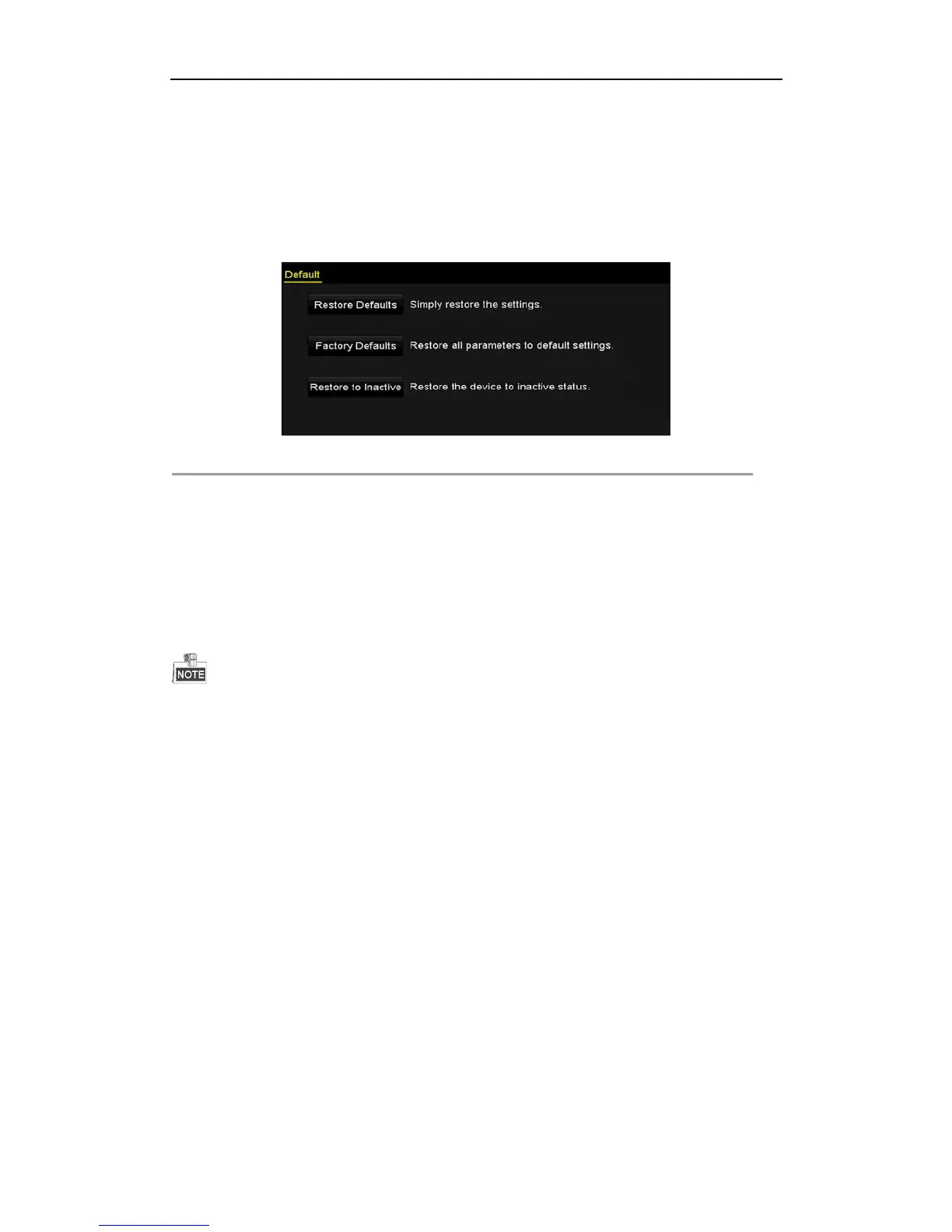

Figure 12. 10 Restore Defaults
2. Select the restoring type from the following three options.
Restore Defaults: Restore all parameters, except the network (including IP address, subnet mask, gateway,
MTU, NIC working mode, default route, server port, etc.) and user account parameters, to the factory
default settings.
Factory Defaults: Restore all parameters to the factory default settings.
Restore to Inactive: Restore the device to the inactive status.
3. Click the OK button to restore the default settings.
The device will reboot automatically after restoring to the default settings.

HIKVISION DS-7104HWI-SL Specifications

General

Product color	White
Rack capacity	1U
Maximum frame rate	30 fps
Maximum video resolution	1920 x 1080 pixels
Video compression formats	H.264
Analog signal format system	NTSC, PAL
Playback resolutions supported	1920x1080, 1280x1024, 1280x720, 1024x768, 704x576, 704x480
BNC input ports	8
Video input channels	4 channels
USB 2.0 ports quantity	2
VGA (D-Sub) output ports	1
Ethernet LAN	Yes
Ethernet interface type	Gigabit Ethernet
HDD interface	Serial ATA
Maximum HDD capacity	4000 GB
DC voltage	12 V
Power consumption (typical)	6 W
Operating temperature (T-T)	-10 - 55 °C
Operating relative humidity (H-H)	10 - 90 %

Weight and Dimensions

Width	200 mm
Height	45 mm
Weight	800 g
