User Manual of Digital Video Recorder
29
3.2 Operations in Live View Mode
In live view mode, the following functions can be realized:
• Single Screen: showing only one screen on the monitor.
• Multi-screen: showing multiple screens on the monitor simultaneously.
• Start Auto-switch: the screen is auto switched to the next one. And you must set the dwell time for
each screen on the configuration menu before enabling the auto-switch.
Menu>Configuration>Live View>Dwell Time.
• All-day Playback: play back the recorded videos for current day.
• Start Recording: start all-day continuous recording or motion detection recording for all channels.
• Aux/Main Monitor switch: the DVR will check the connection of the output interfaces to define the
main and auxiliary output interfaces. When both HDMI and VGA are connected, or either one is
connected, the CVBS output is used as the auxiliary video output for live view, recording and PTZ
controls; When both HDMI and VGA are not connected, the CVBS output is used as the main video
output for live view playback, recording, PTZ control and menu operations.
When the aux output is enabled, you can do some basic operation on the live view mode for the Aux output,
while no operation is allowed for the main output.
3.2.1 Using the Mouse in Live View
In the live view mode, use the mouse to right-click on the window to access the following menu:

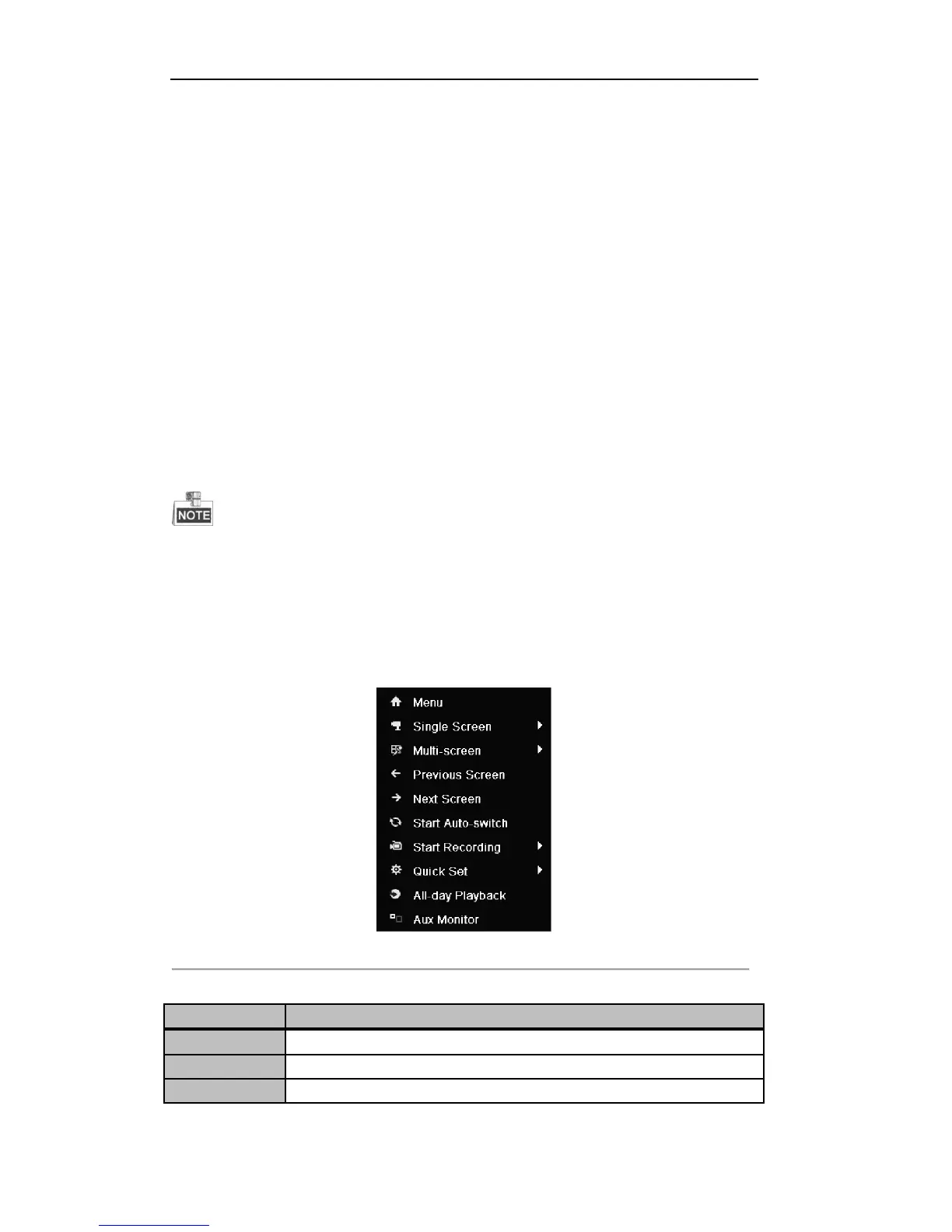

Figure 3. 1 Right-click Menu
Table 3.2 Mouse Operation in Live View
Name
Description
Menu
Enter the main menu of the system by right-clicking the mouse.
Single Screen
Switch to the single full screen by choosing channel number from the dropdown list.
Multi-screen
Adjust the screen layout by choosing from the dropdown list.

HIKVISION DS-7104HWI-SL Specifications

General

Product color	White
Rack capacity	1U
Maximum frame rate	30 fps
Maximum video resolution	1920 x 1080 pixels
Video compression formats	H.264
Analog signal format system	NTSC, PAL
Playback resolutions supported	1920x1080, 1280x1024, 1280x720, 1024x768, 704x576, 704x480
BNC input ports	8
Video input channels	4 channels
USB 2.0 ports quantity	2
VGA (D-Sub) output ports	1
Ethernet LAN	Yes
Ethernet interface type	Gigabit Ethernet
HDD interface	Serial ATA
Maximum HDD capacity	4000 GB
DC voltage	12 V
Power consumption (typical)	6 W
Operating temperature (T-T)	-10 - 55 °C
Operating relative humidity (H-H)	10 - 90 %

Weight and Dimensions

Width	200 mm
Height	45 mm
Weight	800 g
