HIKVISION DS-7104HWI-SL User Manual

User Manual of Digital Video Recorder
88

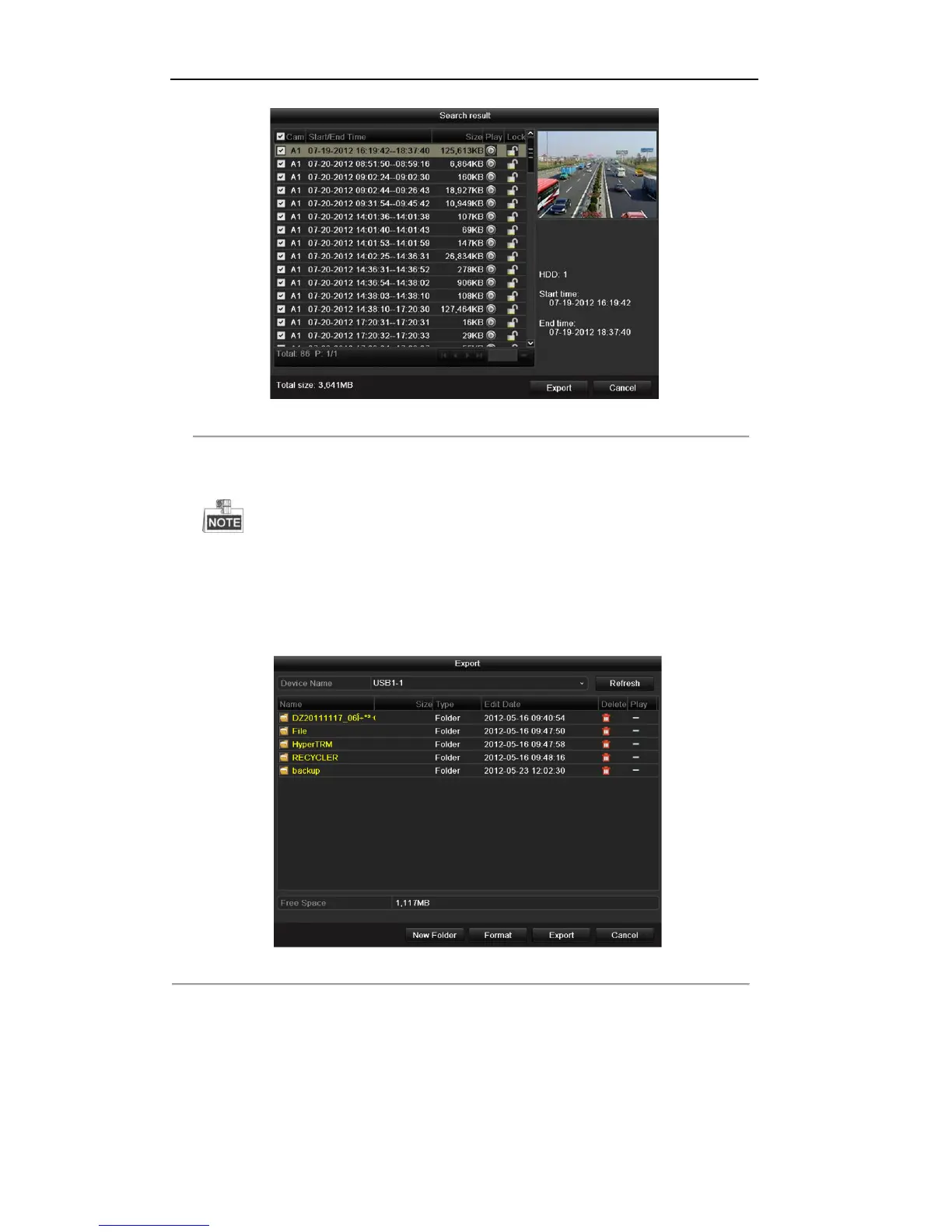

Figure 7. 6 Result of Normal Video Search for Backup
4. Export the record files.
Click Export button and start backup.
If the inserted device is not recognized:
• Click the Refresh button.
• Reconnect device.
• Check for compatibility from vendor.
You can also format USB flash drives or USB HDDs via the device.
Figure 7. 7 Export by Normal Video Search using USB Flash Drive
Stay in the Exporting interface until all record files are exported with pop-up message box “Export
finished”.

HIKVISION DS-7104HWI-SL Specifications

General

Product color	White
Rack capacity	1U
Maximum frame rate	30 fps
Maximum video resolution	1920 x 1080 pixels
Video compression formats	H.264
Analog signal format system	NTSC, PAL
Playback resolutions supported	1920x1080, 1280x1024, 1280x720, 1024x768, 704x576, 704x480
BNC input ports	8
Video input channels	4 channels
USB 2.0 ports quantity	2
VGA (D-Sub) output ports	1
Ethernet LAN	Yes
Ethernet interface type	Gigabit Ethernet
HDD interface	Serial ATA
Maximum HDD capacity	4000 GB
DC voltage	12 V
Power consumption (typical)	6 W
Operating temperature (T-T)	-10 - 55 °C
Operating relative humidity (H-H)	10 - 90 %

Weight and Dimensions

Width	200 mm
Height	45 mm
Weight	800 g
