1.2.3 DS-7600NI Series

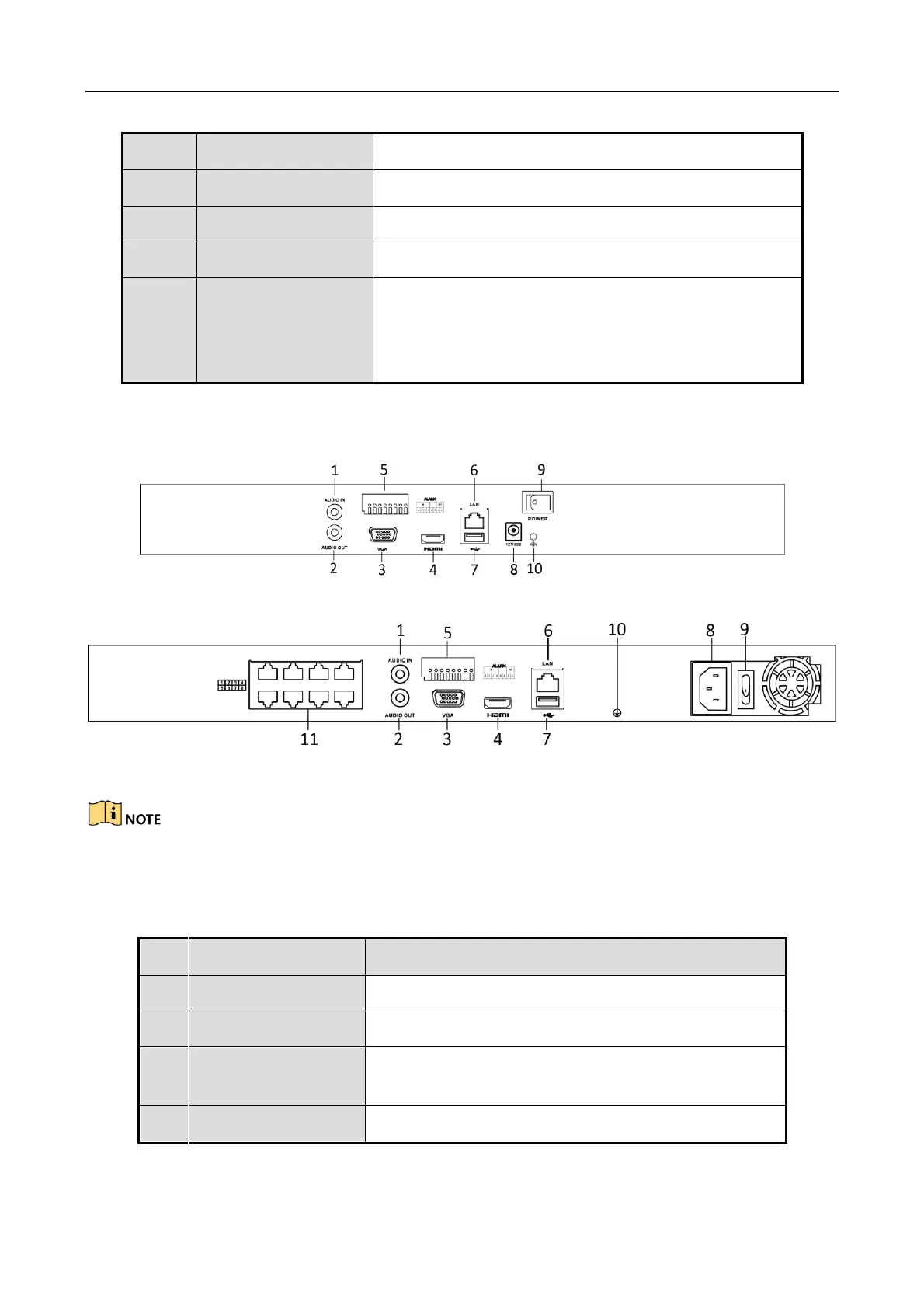

Figure 1-9 DS-7600NI-I2 Series
Figure 1-10 DS-7600NI-I2/8P Series
The DS-7616NI-I2/16P and DS-7632NI-I2/16P provide 16 network Interfaces with PoE function.
Panel Description
Table 1-6 Panel Description
ALARM OUT
Connector for alarm output.
10
GROUND
Ground (needs to be connected when NVR starts up).
11
AC 100V ~ 240V
100V to 240VAC power supply.
12
Power Switch
Switch for turning on/off the device.
13
Network Interfaces
with PoE function
(supported by
DS-7700NI-I4/P)
Network interfaces for the cameras and to provide
power over Ethernet.
No.
Name
Description
1
Audio In
RCA connector for audio input.
2
Audio Out
RCA connector for audio output.
3
VGA Interface
DB9 connector for VGA output. Display local video
output and menu.
4
HDMI Interface
HDMI video output connector.
