Network Video Recorder Quick Start Guide
19

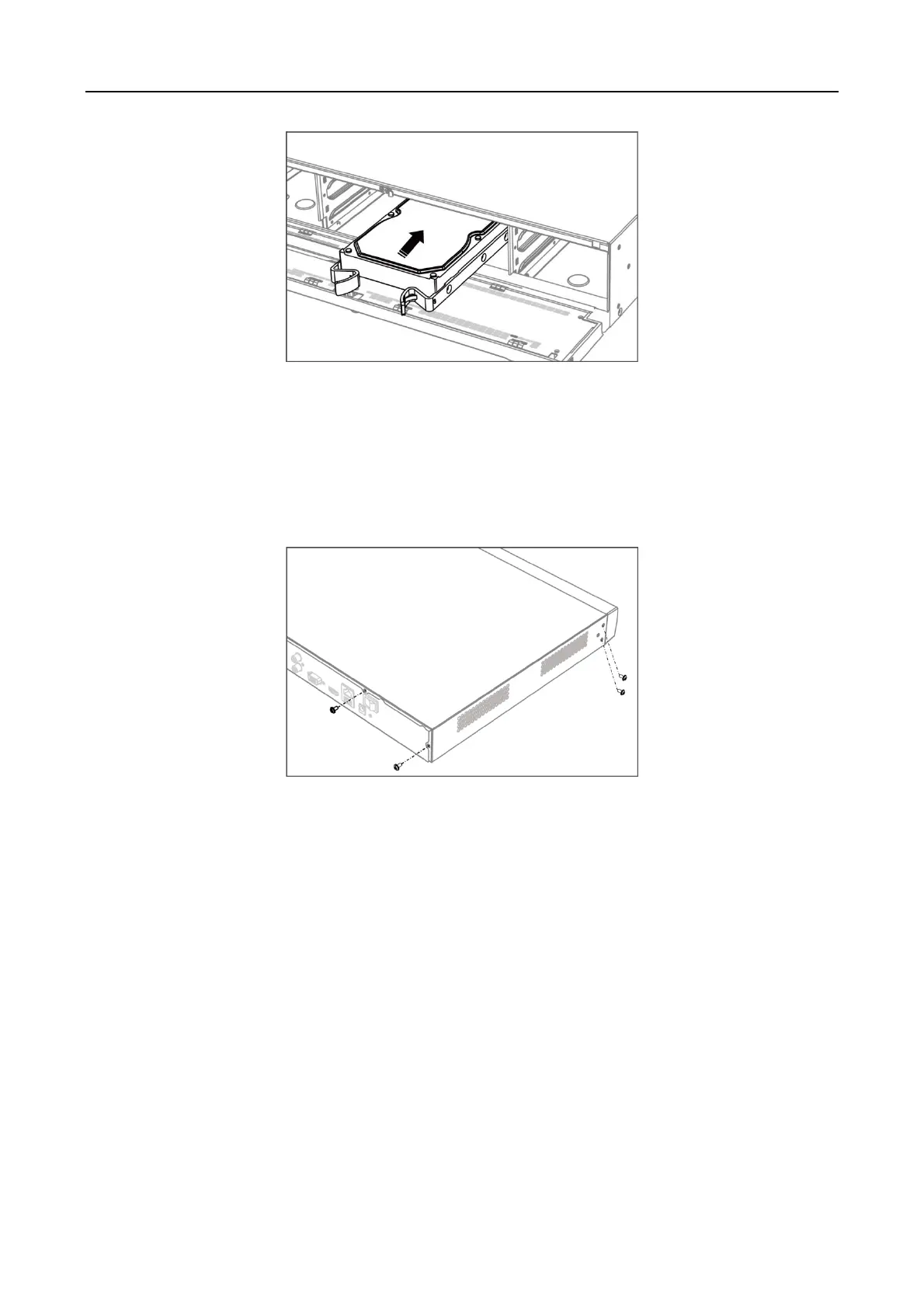

Figure 2-3 Insert HDD
Step 4 (Optional) Repeat the steps above to install other HDDs.
Step 5 Close the front panel and lock it with key.
2.2.2 Fix-on-Bottom Installation
Fix-on-bottom installation is applicable when you need to install and fix the HDD on the device
bottom.
Step 1 Remove the cover from device by unfastening the screws on panels.
Figure 2-4 Remove Cover
Step 2 Connect the data cable and power cable.
1) Connect one end of data cable to the device motherboard.
2) Connect the other end of data cable to HDD.
3) Connect one end of power cable to HDD.
4) Connect the other end of power cable to the device motherboard.
To Next Page
