Rear Panel
Purpose:
The interfaces of DS-96000NI-I16 and DS-96000NI-I24 are the same. The interfaces of DS-
96000NI-I16/H and DS-96000NI-I24/H are the same. We take the example of DS-96000NI-I16/H
series to introduce the rear panel.
The difference between DS-96000NI-I16 and DS-96000NI-I16/H is DS-96000NI-I16/H contains the

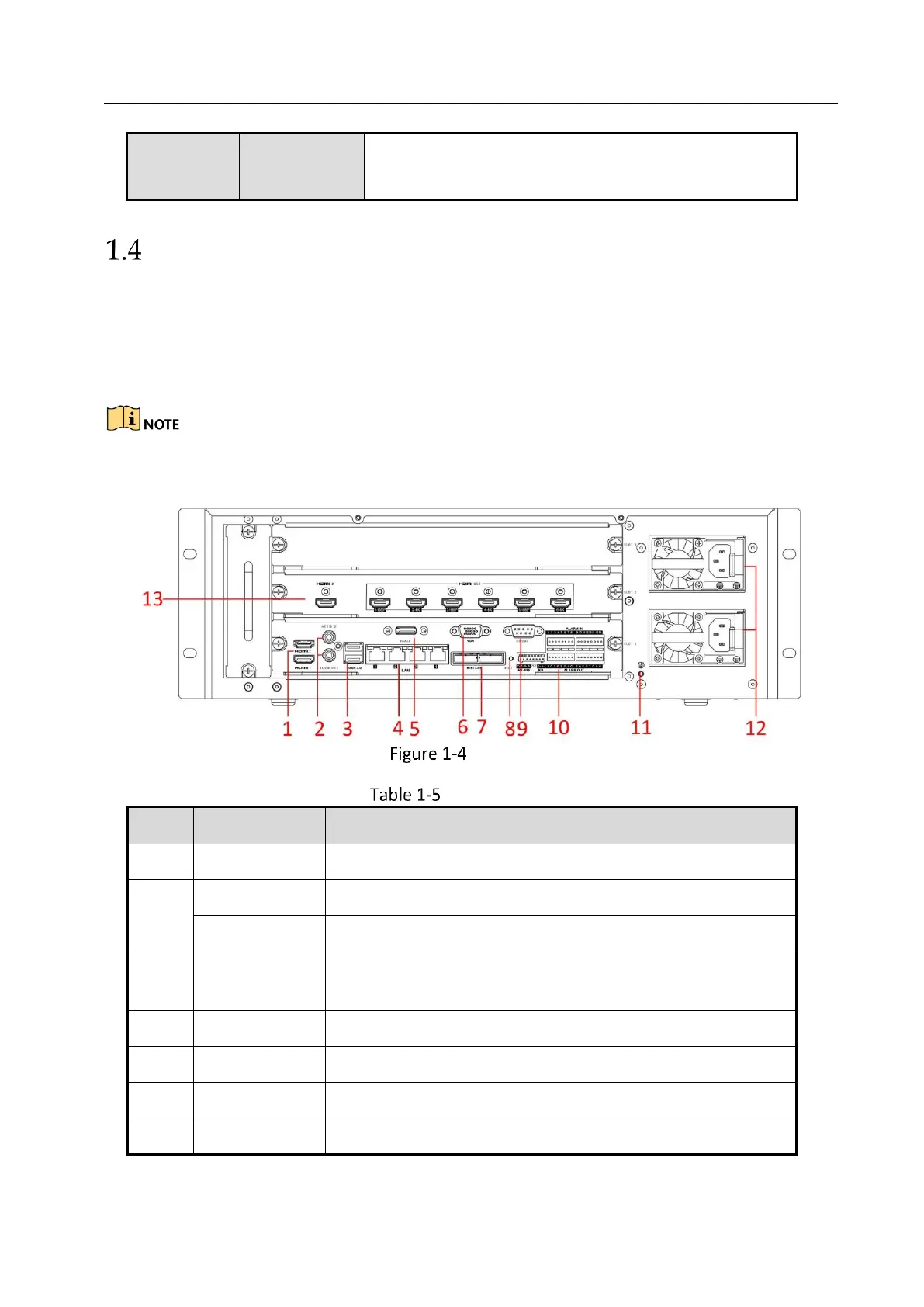

decoding board, that is the module marked as 13 in following figure.
DS-96000NI-I16/H Series
Panel Description
Scrolling
down

Live view: Next screen.

Menu: Next item.
No.
Name
Description
1
HDMI 1/2
HDMI video output connector.
2
Audio in
RCA connector for audio input.
Audio out
RCA connector for audio output.
3
USB 3.0
Universal Serial Bus (USB 3.0) ports for additional devices
such as USB mouse and USB Hard Disk Drive (HDD).
4
LAN
4 10/100/1000 Mbps self-adaptive Ethernet interfaces.
5
eSATA
Connects external SATA HDD, CD/DVD-RM.
6
VGA
DB9 connector for VGA output.
7
Mini SAS
Connector for mini SAS.
